Refurbished product.

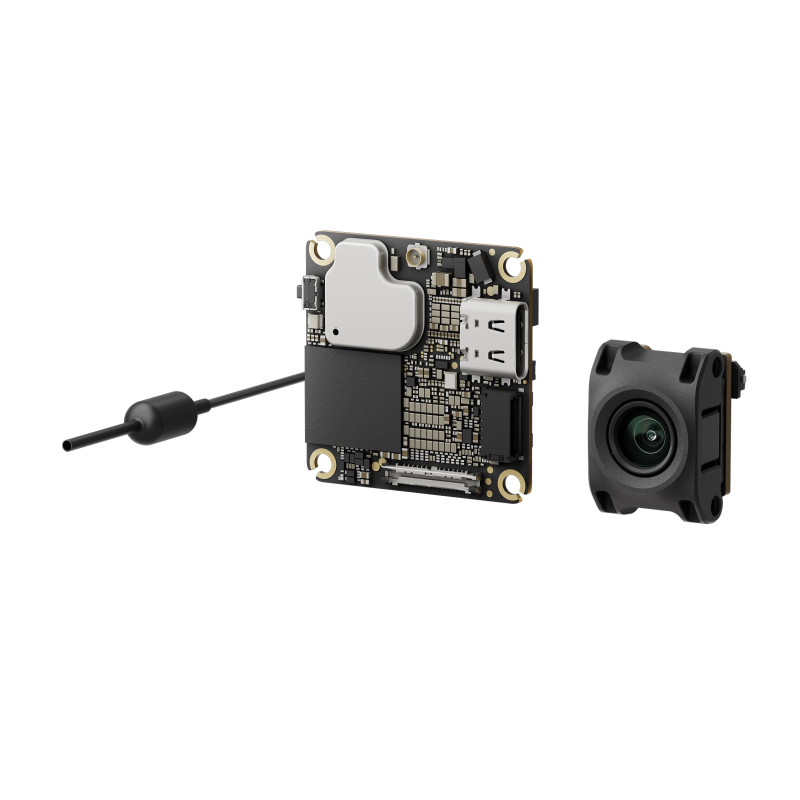

DJI O4 Air Unit
New Heights in Transmission, More Freedom in Flight
The DJI O4 air unit series marks a new leap in video transmission performance, delivering a cutting-edge digital video transmission solution with higher resolution, lower latency, and extended range.
The DJI O4 Air Unit boasts enhanced imaging capability with a 1/2" image sensor, capable of recording 4K/60fps video. It has a 117.6° field of view, capturing the world in unparalleled detail.
Combined with the dual-antenna design, the maximum transmission distance can reach up to 10 kilometers. Whether you're flying over mountains and rivers or navigating indoor spaces, you'll be able to complete your tasks with confidence and precision.
The DJI O4 is compatible with DJI Goggles 3, DJI Goggles N3, DJI Goggles 2, and DJI Goggles Integra, making this Air Unit a perfect fit for drones 3" and up.
* Important note: French regulations impose a maximum power of 25mW in the 5.8 Ghz frequency, as well as dual control piloting to practice immersion flight (FPV). The responsibility of Drone-FPV-Racer cannot be engaged for any use of this material without an adequate license.
Specifications
- Sensor : 1/2-inch CMOS sensor
- FOV : 117.6° ultra-wide
- 4K/60fps video
- Aperture : f/2.8
- Focus : 0.6 m to ∞
- Video format : MP4
- 1080p/100fps live view
- Mounting : 25.5*25.5mm
- 20ms 10km digital video transmission
- Lightweight FHD FPV Digital Video transmission
- Compatible with DJI Goggles 3, DJI Goggles N3; DJI Goggles 2 and DJI Goggles Integra
- Weight (camera+module) : ~8.2g
- Weight (module) : ~5.1g
- Antenna weight : ~0.75g (1pc)
- Transmission module dimensions : 30*30*6mm
- Camera module dimensions : 13.44*12.36*16.5mm
- Coaxial cable : 50mm
- 3in1 cable : 50mm
- Antenna : 80mm
- Operating frequency : 5.170-5.250GHz / 5.725-5.850GHz
- Transmitter power (EIRP) : 5.1GHz:<23dBm (CE) / 5.8GHz:<30dBm(FCC) ; <14dBm(CE) ; <30dBm(SRRC)
- Lowest latency (with DJI Goggles 3) : 20ms (1080p/100fps)
- Lowest latency (with DJI Goggles N3) : 24ms (1080p/100fps)
- Lowest latency (with DJI Goggles 2 & Integra) : 35ms (1080p/100fps)
- Input voltage : 3.7-13.2V
- Operating temperature : -10° to 40°C
- Built-in storage : 23GB
- microSD not supported
- Supported flight controller system : Betaflight 4.3.0 and higher
Included
- 1x DJI O4 Air Unit Camera Module
- 1x DJI O4 Air Unit Transmission Module
- 2x DJI O4 Air Unit Antenna
- 1x DJI O4 Air Unit 3-in-1 Cable
