Technical characteristics

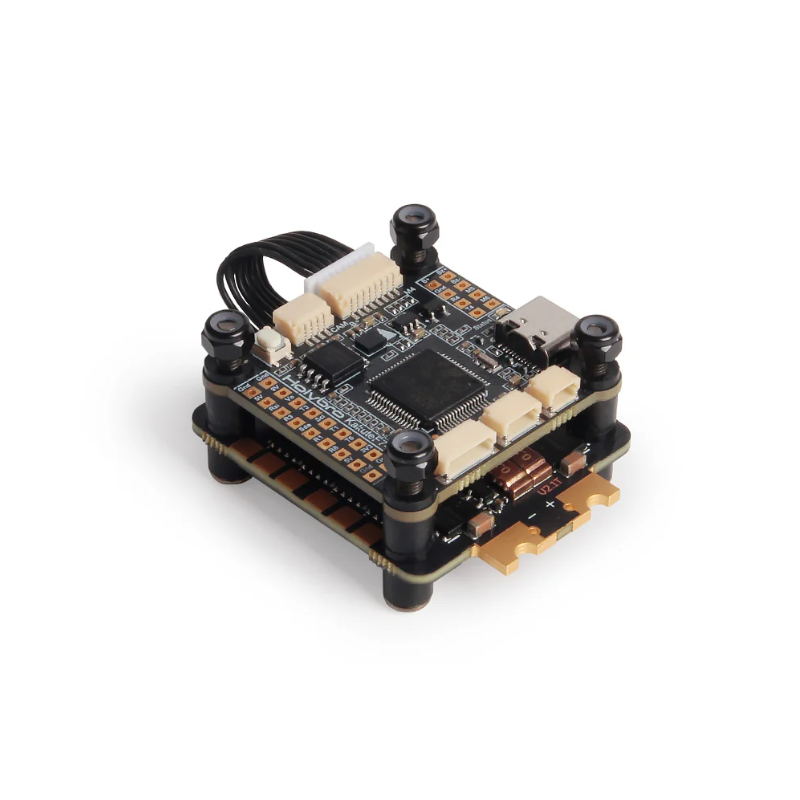

This Holybro stack consists of a Kakute F722 flight controller and a Tekko32 F4 50A 4in1 ESC.
Compatible with both digital and analog VTX, the Kakute F722 Tekko32 F4 50A has an ICM42688P gyro, built-in OSD, 16MB blackbox, LED port and can support up to 8S voltage while providing a stable output of 9V/3A and 5V/2A.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
FC
- MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
- IMU: ICM42688-P (SPI)
- Barometer: BMP280
- OSD: AT7456E
- 5x hardware UARTS (UART1,2,3,4,6)
- 7x PWM Outputs (6 Motor Output, 1 LED)
- Onboard 16 Mbytes for Blackbox logging
- Battery input voltage: 3S - 8S
- BEC: 9V/3A, 5V/2A, 3.3V/0.2A
- Connector
- 2x JST-SH 8pin port for ESC
- 1x JST-SH 6pin port for HD VTX
- 2x JST-SH 4pin port for Receiver & Analog Camera
- 1x JST-SH 3pin port for LED
- USB Type -C
- Dimensions: 35x35mm
- Mounting Holes: Standard 5 x 30.5
- Weight: 8g
- Betaflight Firmware Target: KAKUTEF7MINIV3
- INAV Firmware Target: KAKUTEF7MINIV3
ESC
- Continuous Current: 50A x4
- Burst Current: 60A x4
- Supports 4-6S battery
- Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- No output BEC
- BLHeli_32.8 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 120 (V1.9 Version)
- Dimensions: 48x37x6mm / Weight: 13.8g
- Mounting holes: M4 30.5x30.5mm
Included
- 1x Kakute F722 Tekko32 F4 50A Stack
