Manufacturer : Parallax / Référence : VALKYRIE-FRAME

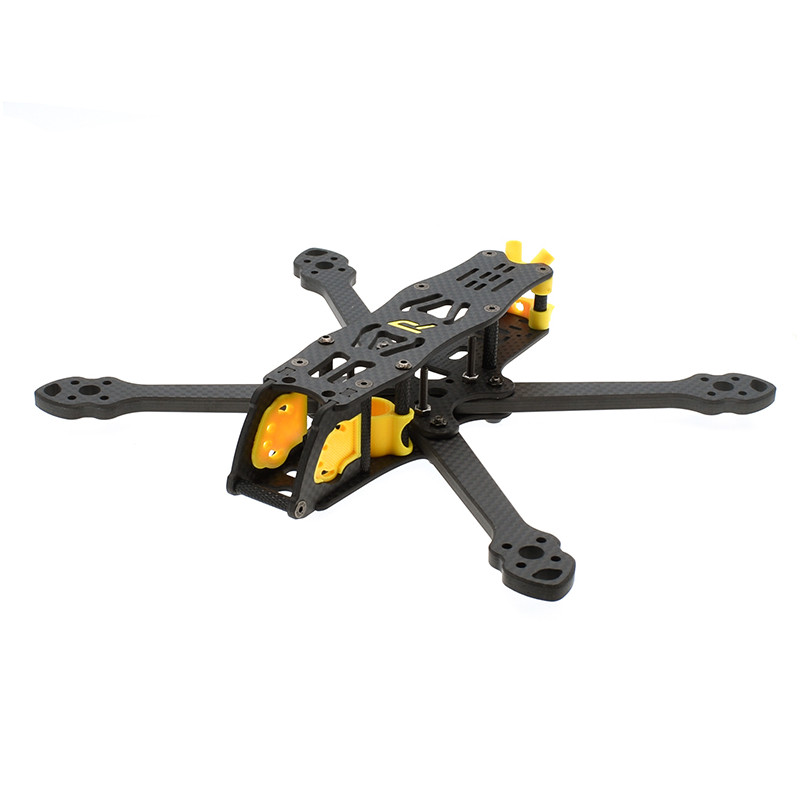

Valkyrie 5.1Inch REV1 (O4 pro compatible) Frame Kit By Parallax
En stock
€79.08
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Valkyrie is Parallax FPV's ultra-versatile 5.1-inch frame.
Compatible with O3, HDZero, Walksnail and analog, this frame allows you to obtain a quad with an optimized weight/durability ratio thanks to its worked shapes and its high quality T700 carbon.
This frame has the necessary space to comfortably accommodate all the useful components in this format. The Valkyrie offers various mounting solutions to best integrate the camera, VTX and RX adapted to your needs.
The STL files for the TPU are available here : Here
Specifications
- Weight (carbon and hardware): 135g
- Weight (carbon, screws and complete tpu kit): ~160g
- Geometry: squished X 225mm split deck
- Arm thickness: 6mm
- Top plate thickness: 2.5mm
- Front bottom plate thickness: 2.5mm
- Rear bottom plate thickness 2.5mm
- Flat camera thickness: 3mm
- Propeller size: 4.9" to 5.1"
- Stack compatibility: 30.5mm / 20mm
- VTX compatibility: O4 pro, O3, Walksnail V1, Walksnail V2, HDZero Race V3, analog
- Camera compatibility: 14 to 21mm, any mounting hole type
- Carbon: T700 matte chamfered
- Screws: 12.9 steel screws, aluminum spacers
- Height at the front: 30mm
- Height at the back: 21.5mm
Included
- 4x Arm
- 1x Top plate
- 1x Front bottom plate
- 1x Rear Bottom Plate
- 1x Cam plates set
- 1x Key
- 1x Set of screws
- 1x Lipo pad
- 2x Strap
TPU
- 1x 19mm, 20mm and O3 camera mount
- 1x Front immortal T antenna mount
- 1x 12.5mm capacitor mount
- 1x VTX holding set and O3 antenna
- 1x SMA pigtail mount
- 1x Immortal T rear antenna mount
Type configuration
- Motors : GTSV4 2207 1960kv Rcinpower
- Stack : Combo F7 FC HD+ F55A PRO II
- Propellers : R36 HQprop
- VTX : DJI O3, Walksnail Avatar V2
- Camera : DJI O3, Walksnail V2
