KAYOUFLIP 5" Frame Kit By Kayou Frames
KAYOUFLIP 5" Frame Kit By Kayou Frames
Manufacturer : Kayou Frames / Référence : KAYOUFLIP

KAYOUFLIP 5" Frame Kit By Kayou Frames

5/5 (2 notifications)
En stock
€95.00
Version : Without TPU
Version : Without TPU Version : With standard TPU kit Version : With DJI O3 TPU kit
Same day shipping

10 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics


Light and Agile, the KAYOUFLIP was designed for locked and aggressive Freestyle!

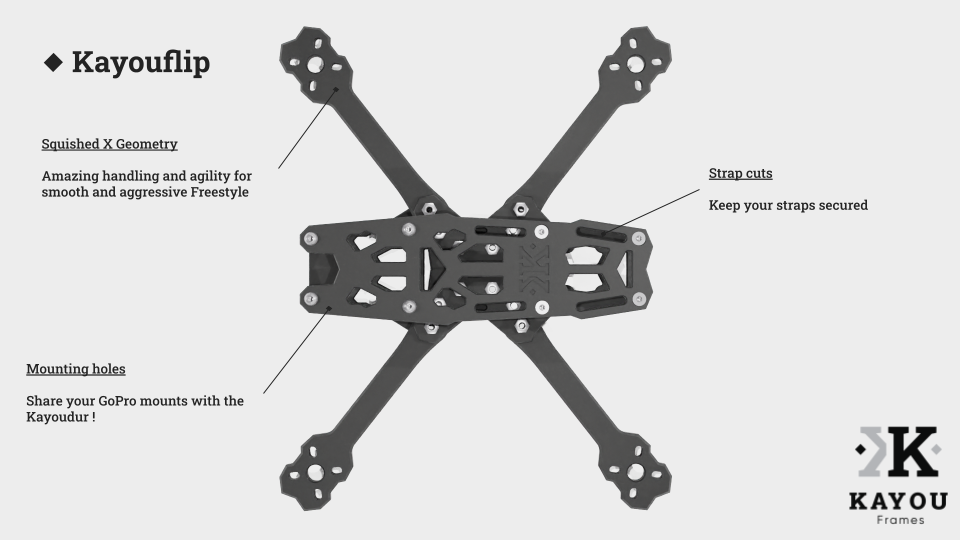

Its low weight and Squished X geometry offer it good versatility and also allow for smooth cinematic shots or dynamic chasing if necessary.

Important points :

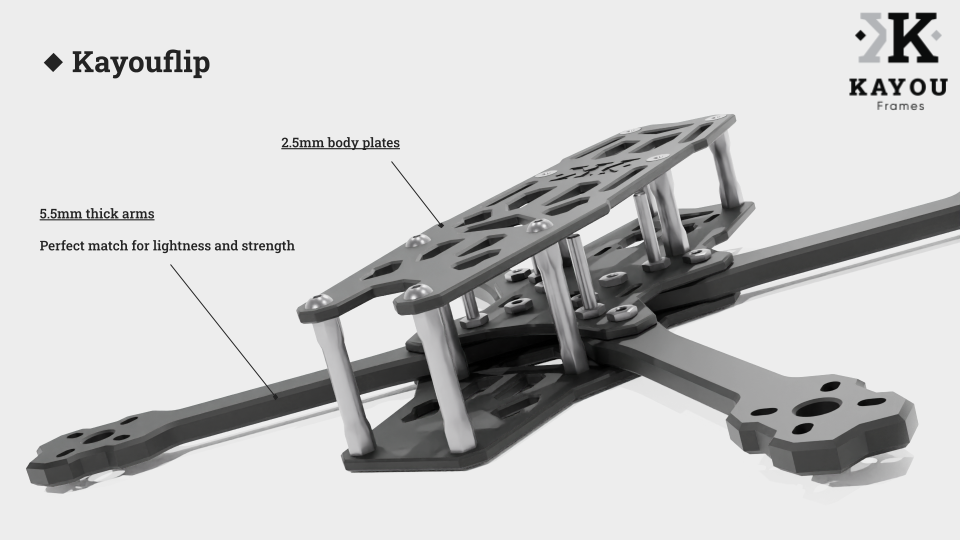

  • Arms in 5.5mm
  • Quick change of arms (Independent of electronics, all identical)
  • Cam FPV support made of TPU, reduced vibration and damage in the event of a frontal impact

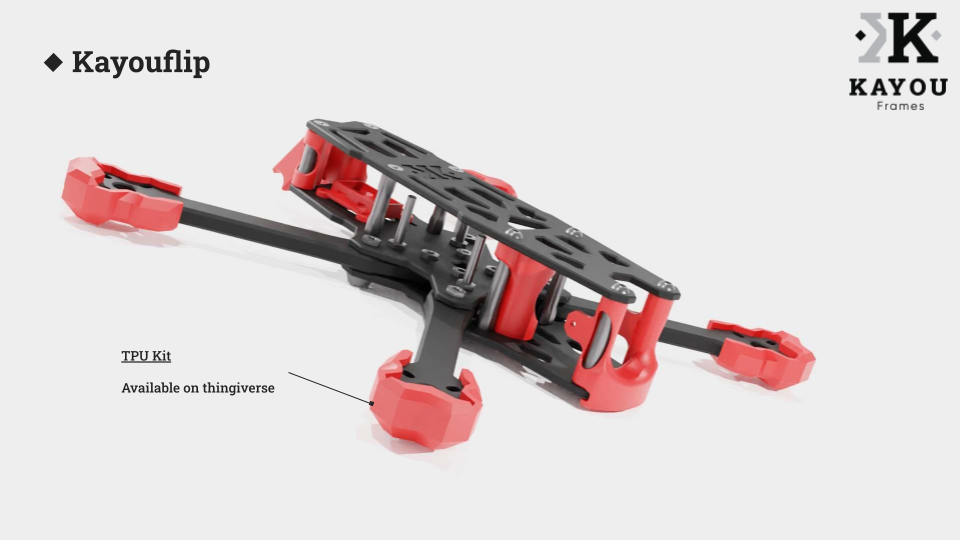

Important note : Frame Kit is sold WITHOUT 3D Printed TPU Parts required to build the Quad. You can get them here on DFR on download the files from Printables (check links below)

Specifications

  • Carbon T700 3K Toray chamfered

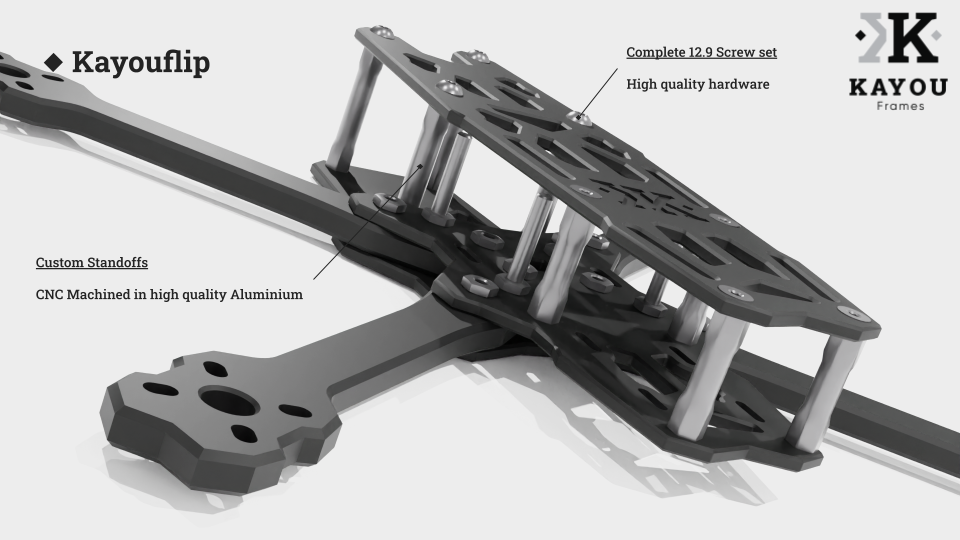

  • Hexa screws M3 Steel 12.9
  • High quality custom aluminum spacers
  • Weight : 121g
  • Top Plate : 2.5mm
  • Middle Plate : 2.5mm
  • Bottom Plate : 2.5mm
  • Arm : 5.5mm
  • Front stack in 30x30
  • Rear stack in 20x20 (Vista, O3 & Walksnail compatible)

Included

  •  1x Hardware Kit
  •  1x Standoff Kit
  •  4x Arms
  •  1x Top Plate
  •  1x Rear Plate
  •  1x Front Plate
  •  2x Kayou Lipo Straps (16x210mm)

Links

Recomended setup (not included)

  •  2306/2207 1700-1950kv Motors
  •  6s 1100-1300mAh Lipo
