Manufacturer : GEPRC / Référence : GP104944

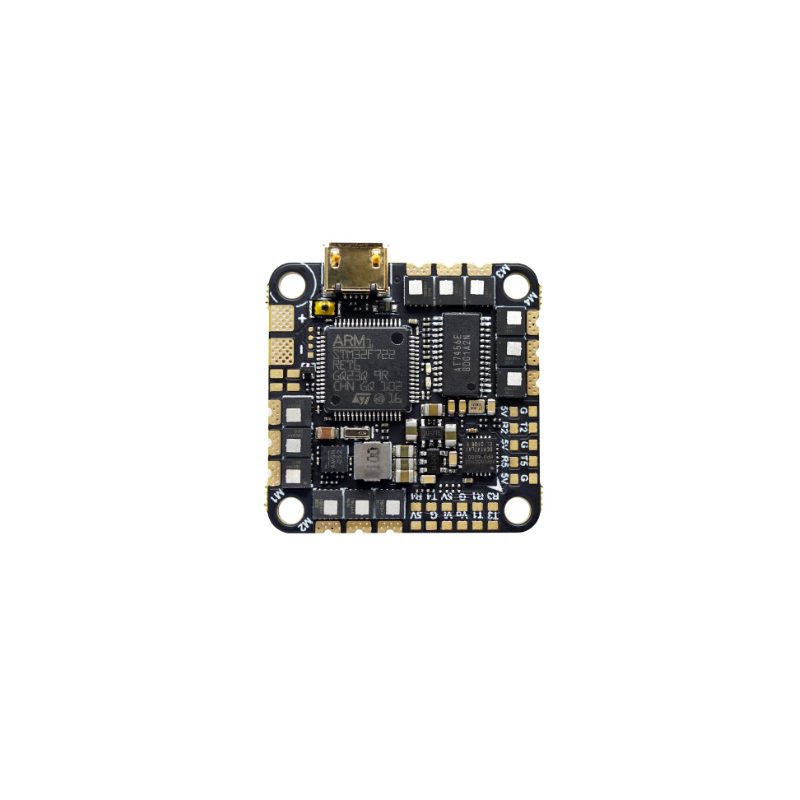

GEP-F722 45A AIO V2 By GEPRC

Hors stock
€124.90
Out-of-Stock Notify me when the product is available again

13 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

GEP-F722 45A V2 AIO adopts STM32F722 MCU with powerful performance and higher computing speed.

BLHeli_S ESC can handle 45A continuous current, supports 2-6S LiPo voltage, and brings stronger flight performance to the drone.

This GEPRC AIO is 25.5*25.5mm mounting, has a 16MB blackbox, and supports Dshot600, Oneshot and Multishot.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Specifications

  • MCU: STM32F722
  • IMU: 42688 gyro/accelerometer(SPI)
  • Firmware target: GEPRC_F722_AIO
  • OSD: Betaflight OSD w/ AT7456Ev
  • UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
  • Beeper: YES
  • LED: YES
  • USB: Micro USB
  • BEC output: 5V@1A
  • Intergrated LC Filter
  • ESC MCU: 8BB21F16G
  • Continuous current: 45A
  • MAX current: 55A (10s)
  • Input: 2~6S
  • Supports: Dshot600,Oneshot,Multishot
  • BlackBox: 16Mb
  • Traget: G_H_30
  • Size: 32x32mm Board
  • Mounting Hole: 25.5×25.5mm
  • Weight: 8.8g

Included

  • 1x GEP-F722-45A AIO V2
  • 1x XT30-7CM-18AWG Power cable
  • 1x 35V 220UF capacitor
  • 1x SH1.0-6Pin to GH1.25-8Pin cable
  • 8x M2*6.5mm Damping ring
