Lucid Pro F435 6S MPU6000 Flight Controller By TBS - Drone-FPV-Racer.com

Detailed Description

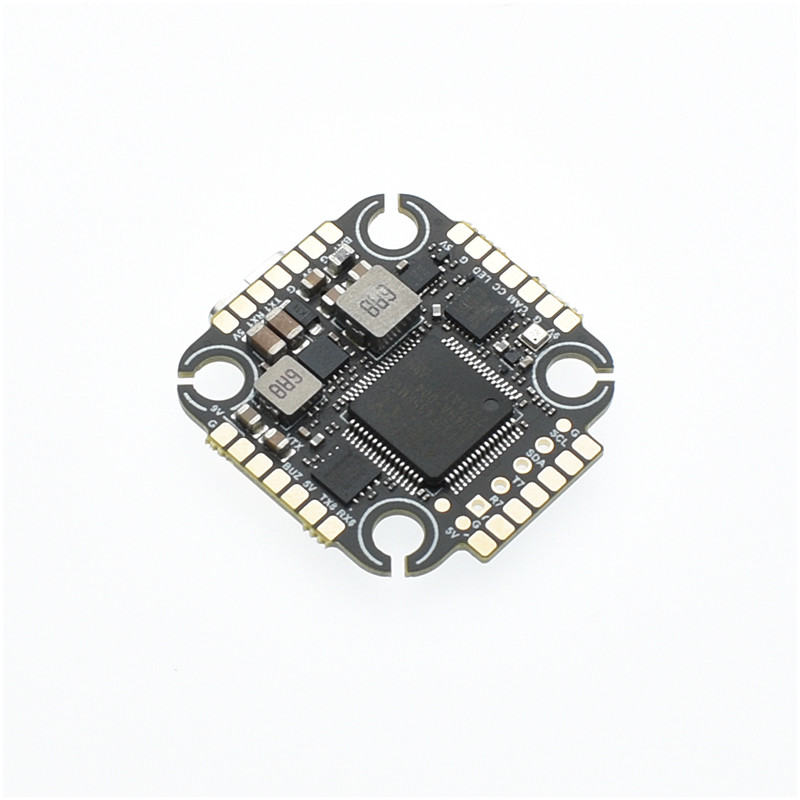

Here is the latest flight controller made by Team BlackSheep, the Lucid Pro 6S F435.

It is equipped with an AT32F435RMT7 processor, an MPU6000 gyro, an 8Mb blackbox, an AT7456E OSD, a double BEC as well as 6 UARTS.

TBS has opted for a choice of 20*20mm or 30.5*30.5mm mounting in order to simplify its installation on your frame and offering compatibility with quads between 3" and 8"!

Compatible with all digital and analog video systems, the Lucid Pro F435 was designed for the TBS Crossfire and TBS Tracer ecosystem.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Specifications

Video DJI FPV
Video HDZero
Video Analog
Video Walksnail
Video DJI O3
Processor F4
Voltage 6S
Gyro MPU6000
Barometer With Baro
Mount Size 20x20mm

Specifications

  • MCU : AT32F435RMT7, 288MHz
  • Gyro : MPU-6000
  • Baro : Yes
  • Motors : 4 motors, with telemetry and current sensor
  • BEC : 9V, 2.5A. 5V 2A
  • OSD : AT7456E
  • Blackbox : 8M
  • UARTs : 6 (UART1/UART3/UART4/UART5/UART7/UART8)
  • Input : 3S-6S
  • Size : 31mm*29mm
  • Mounting : 20mm*20mm
  • Weight : 4.51g

Included

  • FC Lucid
  • FC to ESC cable (plug & play)
  • DJI O3 cable (plug & play)
  • 4x M3 Rubber Damper.
  • 4x M3x8 screws
