Manufacturer : Iflight / Référence : BF15679
Blitz Mini F722 E55 Stack By Iflight
Hors stock
€119.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

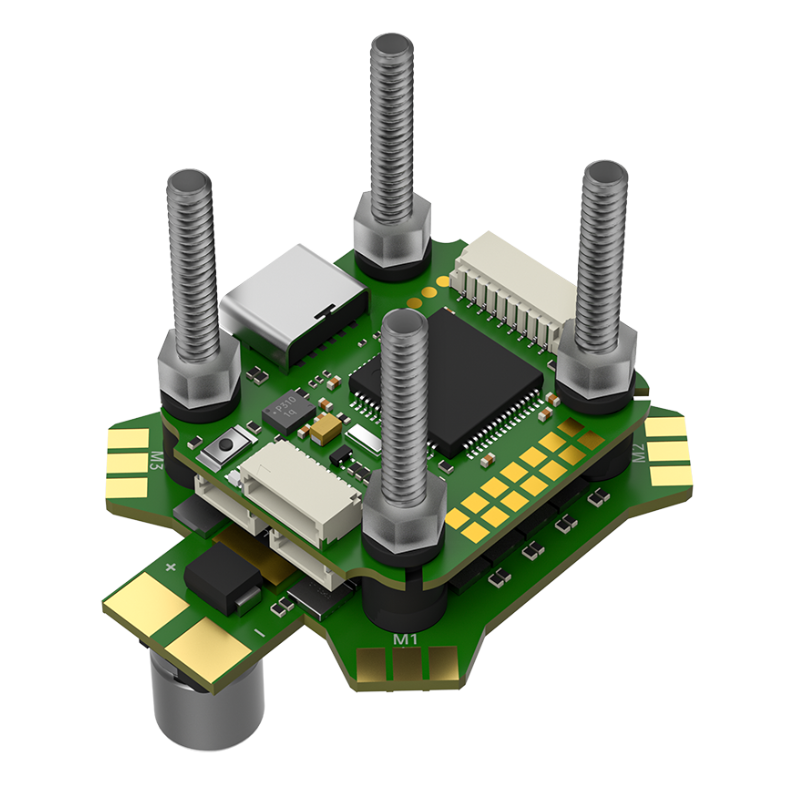

Iflight BLITZ series stack with a Blitz mini F722 V1.2 flight controller and a 4in1 mini E55 V1.3 ESC.
This stack is equipped with a DJI HD plug&play connector requiring no soldering as well as quality components that significantly reduce noise!
The stack consists of, among other things, an ICM42688 gyro, a DPS310 barometer and a 8MB blackbox.
Note : If you need to use the ESC in the iH3 O3 Frame kit, please remove the capacitor after receiving the ESC, and then install the ESC.
FC
- MCU: STM32 F722
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456
- Flash: 8MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722
- Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
- Dimensions: 30.5x27 mm
- Weight: 5g
ESC
- Mounting Holes: 20*20mm/Φ4mm
- Weight: 11.3g
- Supports 2-6S Lipo input
- MCU： G071
- Constant: 55 Amps
- Burst: 65 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: IFLIGHT_BLITZ_G071_01 32.9
Included
- 1x BLITZ Mini F7 V1.2 Flight Controller
- 1x BLITZ Mini E55 4-IN-1 2-6S ESC
- 1x Set of silicon grommets
- 1x Set of wire harness for F7 Flight controller
