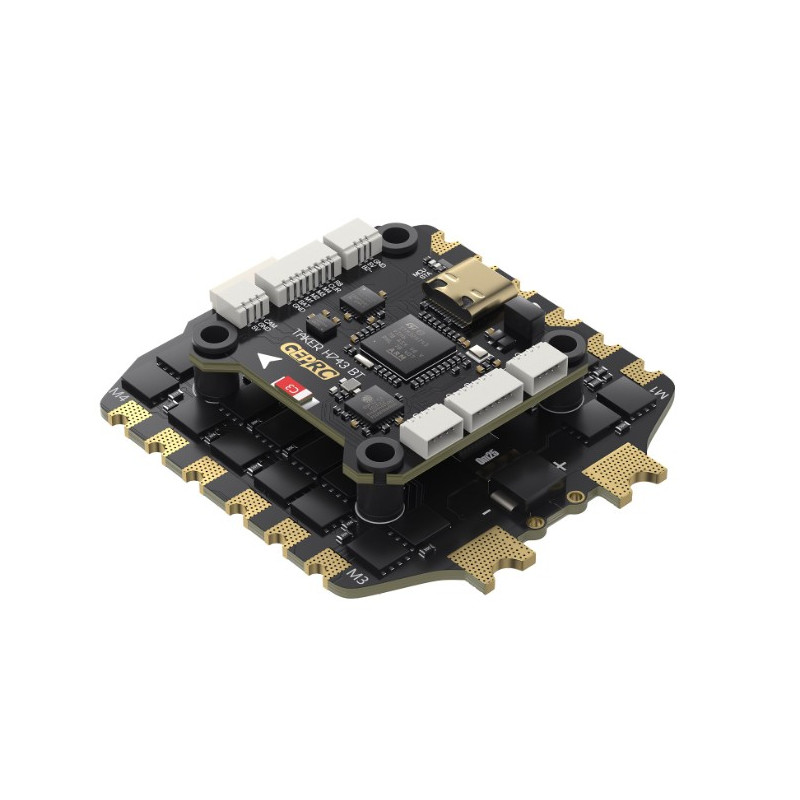

Taker H743 BT 8Bit 80A Stack By GEPRC

Hors stock
€145.90
Out-of-Stock Notify me when the product is available again

15 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The TAKER H743 BT 8Bit 80A Stack is the latest high-performance stack system developed by the GEPRC team, designed to deliver exceptional results in both freestyle and racing applications. At its core is a powerful STM32H743VIH6 processor, built on a Cortex-M7 architecture and running at up to 480MHz, ensuring lightning-fast response and rock-solid stability in flight.

Equipped with a dual gyroscope setup, combining the MPU6000 and ICM42688-P, this stack offers ultra-precise control and refined handling. Its built-in Bluetooth allows for wireless parameter tuning, while the integrated 512MB Blackbox provides ample storage for flight data logging and post-flight analysis. With eight motor output ports, it’s fully compatible with X8 configurations.

Offering full support for Betaflight, INAV, and Ardupilot, the system is extremely versatile and suited for a wide range of flight styles and firmware preferences. Power distribution is handled by a dual independent BEC, delivering 5V@3A and [email protected], ensuring stable voltage for all essential components.

Additional features include seven UART ports, a built-in barometer, and plug-and-play compatibility for an easy setup process. Paired with the TAKER H80_BLS 80A 4-in-1 ESC, this stack provides an ultra-smooth, responsive, and reliable flight experience, making it an ideal choice for high-end FPV builds.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

H743 BT FC

  • MCU: STM32H743
  • IMU: MPU6000 + ICM42688-P(dual gyro)
  • Air Unit Connection: direct plug for DJI Air Unit
  • Black Box: 512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC Output: 5V@3A,[email protected] dual BEC
  • Target: GEPRC_TAKER_H743
  • Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
  • Input Voltage: 3-6S LiPo
  • UART Ports: 7 groups (UART3 fixed for Bluetooth)
  • Power Filtering: Integrated LC filter
  • Weight: 8.4g

H80_BLS ESC

  • Input Voltage: 3-6S Lipo
  • Ammeter: Supported
  • Continuous Current：80A
  • Burst Current：85A（5 seconds）
  • Support Protocol: Dshot 150/300/600
  • Dimension：56.3×61.1mm,mounting hole size30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
  • Weight: 28.1g
  • Firmware Target: B_X_30

Bullet points

  • Adopts the high-performance STM32H743 as the main controller
  • Equipped with MPU6000 and 42688-P dual gyroscopes
  • 512MB high-capacity black box storage
  • Bluetooth parameter tuning
  • Plug-and-play, no soldering required
  • Integrated barometer
  • Features 7 UART ports
  • Independent BEC with [email protected] and 5V@3A outputs
  • Supports multiple firmware options

Included

  • 1x TAKER H743 BT Flight Controller
  • 1x TAKER H80_BLS 80A 4IN1 ESC
  • 1x Electrolytic capacitor(50V 470uF)
  • 1x DJI connection cable(SH1.0 6pin 100mm)
  • 1x FC adapter cable(SH1.0 8pin 30mm)
  • 1x Receiver silicone cable(SH1.0 4pin 150mm)
  • 1x Camera connection cable(SH1.0-SH1.25 3pin 60mm)
  • 1x VTX connection cable(SH1.0 4pin-6pin 100mm)
  • 1x XT90 power cable(10AWG 230mm)
  • 4x M3*30 screws
  • 4x M3*25 screws
  • 8x Nylon nuts(M3)
  • 12x Silicone anti-shake pads(M3)
