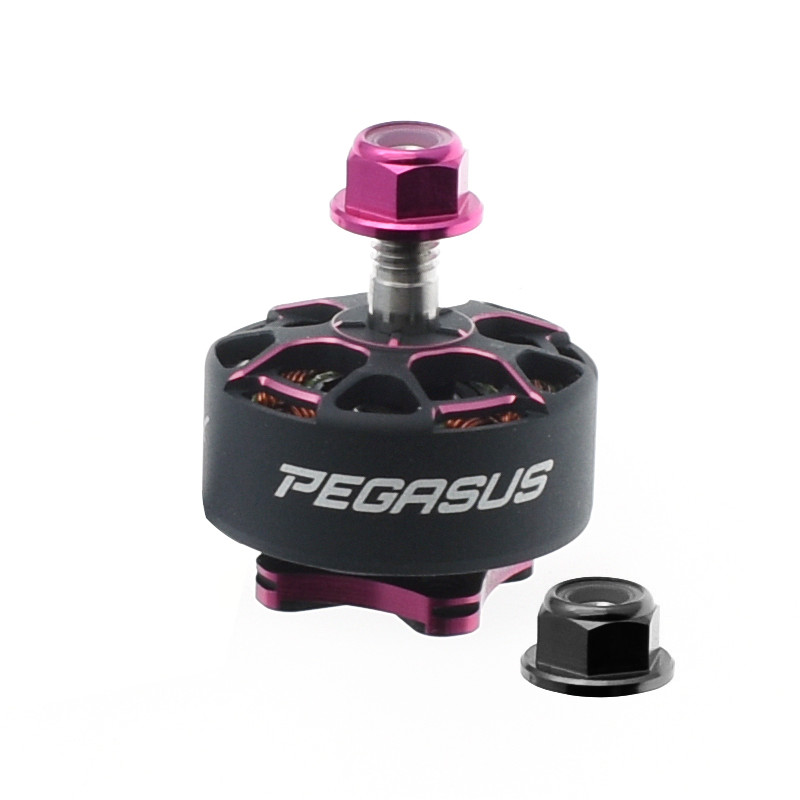

Pegasus 2207 - 1420KV Motor By Parallax
Related accessories
Technical characteristics
The Pegasus are motors designed by ParallaxFPV in collaboration with Rcinpower in order to offer a range of optimized motors meeting the needs and desires of most pilots.
Their bell design designed to best resist repeated crashes and coupled with the know-how and optimization demonstrated by Rcinpower makes it a powerful, efficient and durable motor.
The wide choice of KV allows each pilot to find the compromise that suits them:
- 1875KV (6S): general use, suitable for all types of flight particularly designed for pilots looking for precision for freestyle and cinematics.
- 2070KV(6S): designed for pilots looking for speed and responsiveness, ideal for racing and light freestyle quads.
- 1420KV (6S and 8S): designed to experience 8S flight in the best conditions, this KV is an equivalent of 1900KV in 6S, therefore allowing a wide range of use.
Specifications
- KV: 1420
- Configuration: 12N14P
- Shaft: M5
- Stator dimensions: 22.6mm (diameter) 7.5mm (height)
- Dimensions: 27.6*19.5mm
- Weight (with 2cm cable): 30.4g
- Idle current (10)@10V: 0.95A
- Voltage: 6~8S
- Max continuous power: 1373W
- Internal resistance: 68mΩ
- Max current (5s): 42.9A
- Max current efficiency: (4-8A)>85%
Included
- 1x Pegasus 2207 motor
- 1x M5 black nut
- 1x M5 pink nut
- 1x Set of screws
