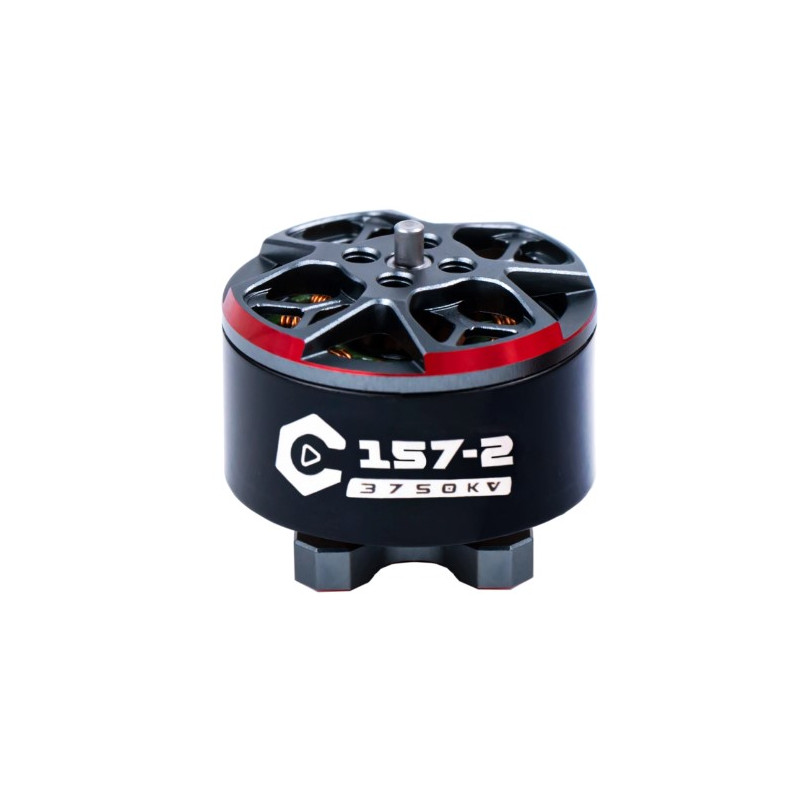

C157-2 - 3750KV Motor For Avata 3.5" By AxisFlying

In stock

€16.58

DIAVOLA motors are the result of the partnership between AxisFlying and SpeedyPizzaDrones who have sought to make the motor as powerful as possible while maintaining a very good reliability / price ratio. This 2020KV version is for Racing.

View More Info

Quantity

This product earns you 2 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payment with

4X PayPal

2X 3X 4X

C157-2 - 3750KV Motor For Avata 3.5" By AxisFlying - Drone-FPV-Racer.com

Detailed Description

AxisFlying's C157 motor has been specially updated for the DJI Avata to achieve better flight feeling.

The C157-2 in 3750KV brings more power, better maneuverability and less prop wash compared to their predecessors.

Specifications

Size 15XX

KV 3700

KV 3800

Shaft Type T-Mount

Shaft Size 1.5mm

Specifications

Configuration: 12N14P / N52H arc magnet
Motor stator size: 1507
Motor mounting hole size: 3*M2 (Φ10mm)
Motor cables: AWG 24#, 100MM
Motor dimensions (Dia *Len): Φ19*18.9MM
Motor weight (including 150MM cables) : 14.5g
The motor is very powerful that can get over 0.6KG and most current is about 25A

Typical Setup

Specifications

Configuration: 12N14P / N52H arc magnet
Motor stator size: 1507
Motor mounting hole size: 3*M2 (Φ10mm)
Motor cables: AWG 24#, 100MM
Motor dimensions (Dia *Len): Φ19*18.9MM
Motor weight (including 150MM cables) : 14.5g
The motor is very powerful that can get over 0.6KG and most current is about 25A

Included

1x C157 motor
3x M2*4 screws for motor
2x M2*7 screws to lock props
