Manufacturer : GEPRC / Référence : GP107211

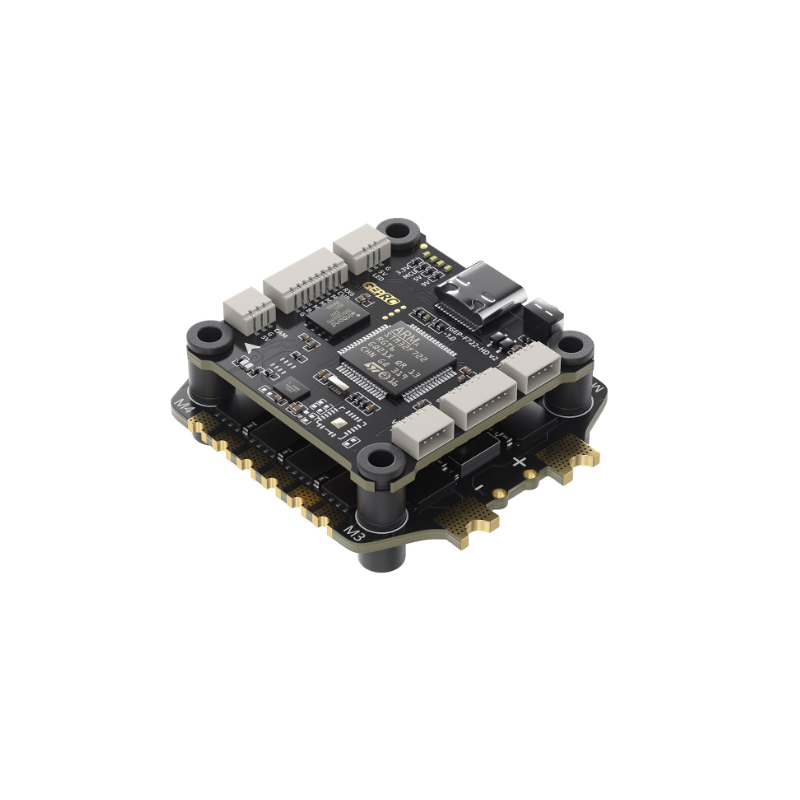

Taker F722 BLS 65A V2 Stack By GEPRC

Hors stock
€73.25
8 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

This GEPRC stack consists of the TAKER F722 HD V2 flight controller and the TAKER H65 65A 4in1 ESC.

The FC has an ICM42688-P gyro, 16M integrated blackbox, a DJI plug&play connector, a barometer and an integrated LC filter. On its side, the ESC supports BLHeli_S and Dshot 150/300/600.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

F722 HD V2 FC

  • MCU: STM32F722
  • IMU: ICM42688-P(SPI)
  • Air Unit Connection: Direct plug-in to DJI Air Unit
  • Black Box:16M onboard
  • USB Interface: Type-C
  • Barometer: supported
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A,[email protected] dual BEC
  • Firmware Target: GEPRCF722
  • Dimension: 36.85×36.85mm, mounting hole size 30.5×30.5mm,φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
  • Input Voltage: 3-6S LiPo
  • UART: 5
  • Power Filter: Integrated LC filter
  • Weight: 8.1g

H65_BLS ESC

  • Input Voltage: 3-6S Lipo
  • Ammeter: Supported
  • Continuous Current:65A
  • Burst Current:70A(5 seconds)
  • Support Protocol: Dshot 150/300/600
  • Dimension:42×45.7mm,mounting hole size30.5×30.5mm,φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
  • Weight: 14.9g
  • Firmware Target: B_X_30

Bullet points

  • Uses the mainstream STM32F722 chip
  • Equipped with the latest 42688-P gyroscope
  • 16M onboard black box storage
  • Integrated LC filter
  • Upgraded Type-C USB interface
  • Directly plugs into the DJI Air Unit
  • Paired with the TAKER H65_8S_BLS 65A 4IN1 ESC, providing a smooth flying experience
  • Simple and efficient installation method with shock absorbers for stable gyroscope performance
  • Dual independent BECs: [email protected] and 5V@3A

Included

  • 1x FC board
  • 1x ESC board
  • 1x Capacitor
  • 1x DJI Air Unit adapter cable
  • 1x Flight controller adapter cable
  • 1x XT60 power cable
  • 4x M3*30 screws
  • 4x M3*25 screws
  • 8x Nylon nuts
  • 8x Silicone anti-shake pads
  • 2x sh1.0 4pin silicone cable
  • 1x Camera connection cable
