Manufacturer : AXIS Flying / Référence : ARGUS-STACK-ECO-60A
Argus ECO F405 60A Stack By AxisFlying
Hors stock
€69.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Axisflying argus ECO stack is composed of an FC F405 and a BLHeli_S 4in1 60A ESC.
Light and stable, the 30.5x30.5mm stack has an STM32F405RGT6 processor, an ICM42688P gyro, two 5V/3A 12V 2A BECs, 6 UARTS and a 16Mb blackbox.
Get excellent stability for optimal control of your drone thanks to this Argus ECO.

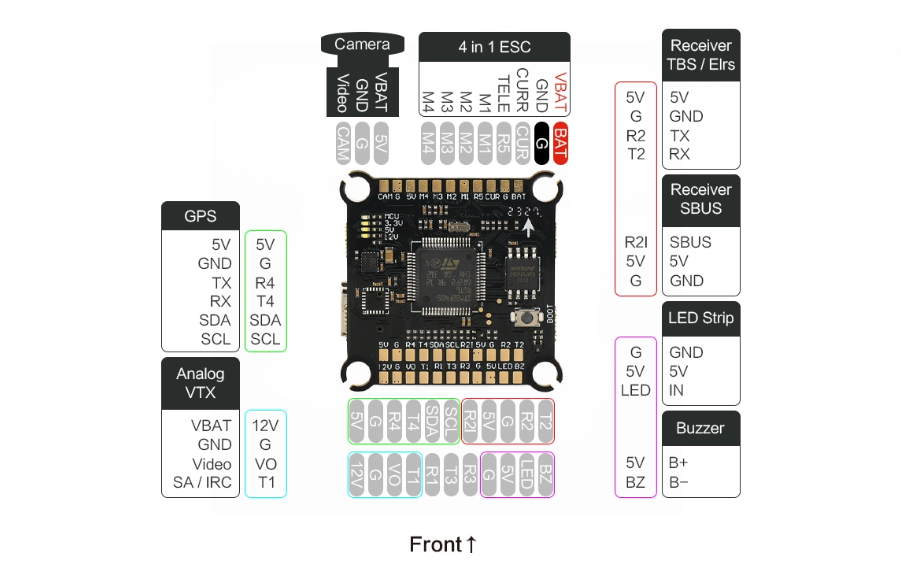

FC
- MCU: STM32F405RGT6
- Gyro : ICM42688P
- BEC : 5V3A / 12V2A
- UART : 6
- OSD : Supported
- Blackbox : 16Mb
- Barometer : not supported
- Input voltage : 4-6S
- Size : 36*36*6mm
- Mounting : 30.5*30.5mm
- Weight : ~7g

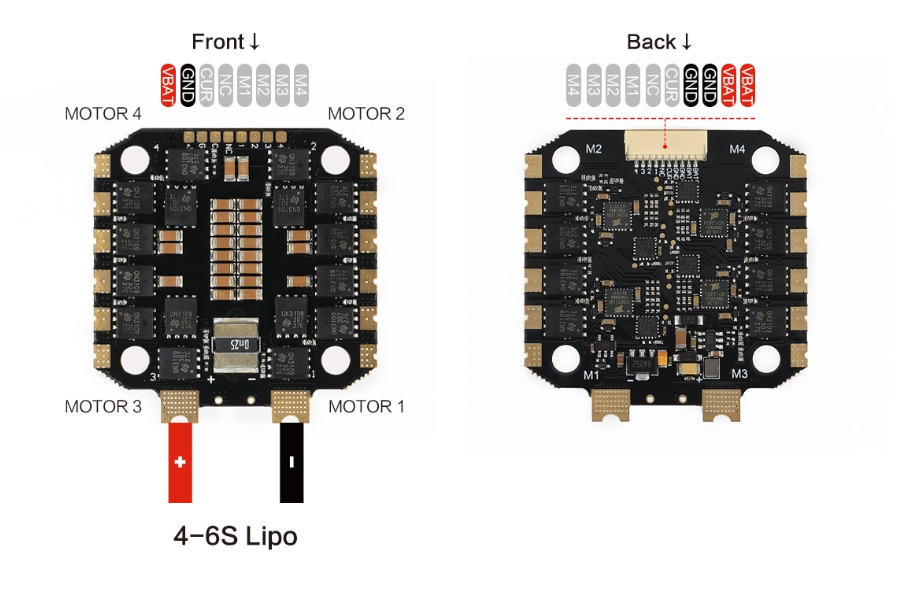

ESC
- Firmware : Bluejay_QH30
- Amperage meter : 200
- Input voltage : 4-6S
- Current : 60A
- Burst : 70A
- Temperature protection : Supported
- Telemetry : Not supported
- BEC : Not supported
- SIze : 44.8*43*6mm
- Mounting : 30.5*30.5mm
- Weight : ~13.5g
Included
- 1x Argus ECO F405 Flight Controller
- 1x ESC 4in1 Argus ECO 60A
- 1x Short connection cable
- 1x Long connection cable
- 1x Capacitor 35V 270uF
- 8x Damper
- 1x VTX HD Cable
- 4x M2x25 screws
- 4x Locknut M2
- 1x XT60 Power Cable
