Manufacturer : BETAFPV / Référence : 01040016_1
Air Brushless G473 5A 4in1 AIO V1.0 By BetaFPV
Hors stock
€48.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

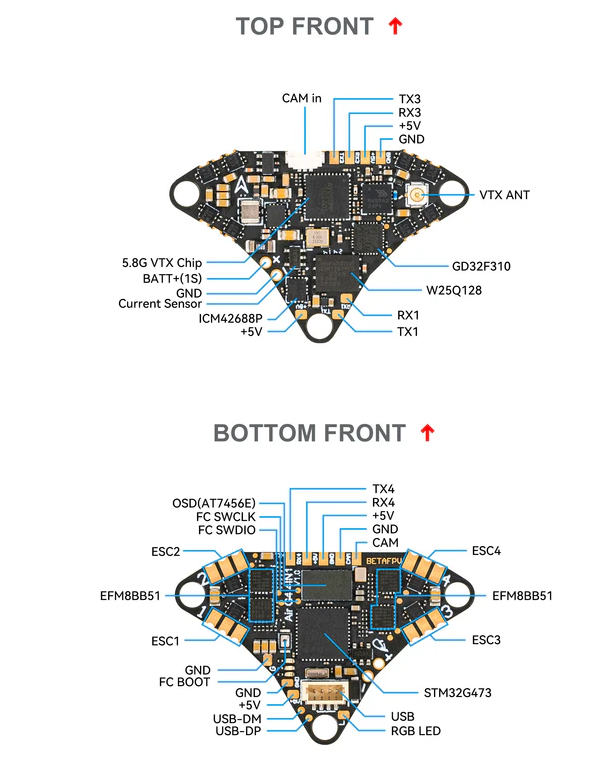

BetaFPV's G473 brushless AIO is the first 1S using the STM32G473CEU6.
Equipped with the ICM42688P gyroscope, 5A ESC and 5.8G 25-400mW VTX, this AIO is very lightweight and will allow you to manage your drone's posture and movement precisely to a higher level.
This is the advanced choice for future ultra-light 1S drones such as the Whoops Air65 and Air75.
Note : upon receipt of your item, please connect it via USB and calibrate the accelerometer before starting to solder.
FC
- Weight: 2.9g
- Mounting Hole Size: 26mm x 26mm
- CPU*: STM32G473CEU6 (168MHz)
- Six-Axis: ICM42688P (SPI connection)
- Blackbox Memory: 16MB
- Sensor: Voltage&Current
- 5V BEC*: 5V 3A
- USB Port: SH1.0 4-Pin
- Built-in ESC with 5A continuous
- 4IN1 Version: FC+ESC+OSD+VTX
ESC
- Input Voltage: 1S
- FC Firmware Version: Betaflight_4.5.0_BETAFPVG473
- ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
- Signal Support: D-shot300, D-shot600
VTX
- Output Power: 25/100/200/400/PIT
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.0
- Modulation Type: FM
- Frequency Control: PLL
- All Harmonic: Max -50dBm
- Frequency Stability: ±100KHz (Typ.)
- Frequency Precision: ±200KHz (Typ.)
- Channel Carrier Error: ±1.5dB
- Antenna Port: 50 Ω
- Operating Temperature: -10℃~+80℃
Included
- 1x Air Brushless Flight Controller
- 1x Type-C to SH1.0 Adapter
- 1x SH1.0 4Pin Adapter Cable
- 1x 5.8g VTX Antenna
- 1x BT2.0 U Whoop Cable Pigtail | 40mm
- 4x M1.4*4 Self-tapping Screws
- 4x Shock Absorbing Ball
