Manufacturer : T-Motor / Référence : CINE77-477KV

Cine77 - 477KV Motor By T-Motor

En stock
€59.90
€50.92
-15%
Same Day Shipping

6 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

T-Motor Cine77 series motors are designed for 9-10" X8 cinematic drones.

They will be perfectly combined with Cine 10.5" propellers, an 80A 12S ESC and the F7 Pro flight controller.

This 477KV motor is equipped with an M5 nut shaft and has a max power of 2745W.

Specifications

  • Shaft diameter : 5mm

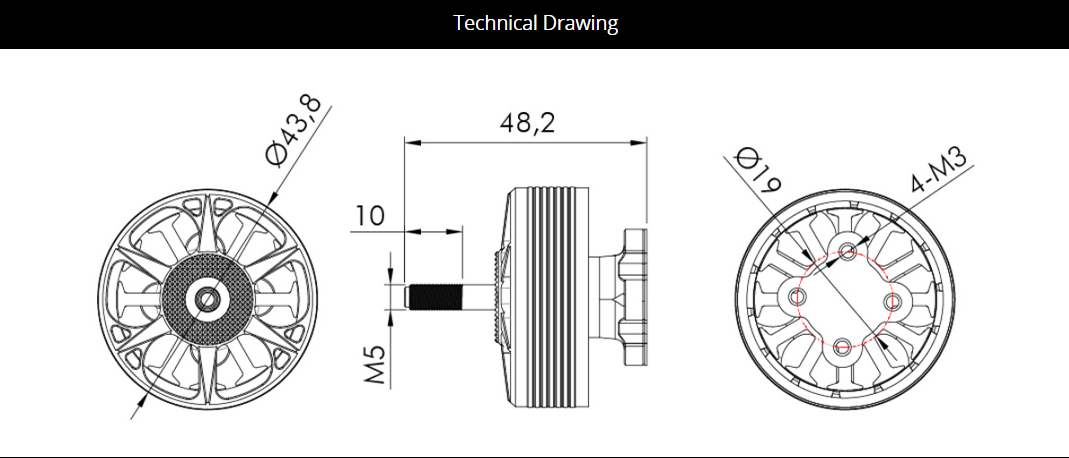

  • Motor dimension : Φ43.8*48.2mm
  • Configuration : 12N14P
  • Bearings : Imported 686ZZ
  • Lead : 16AWG*400mm
  • KV : 477
  • Max power(1s) : 2745W
  • Rated voltage (LiPo) : 12S
  • Max thrust : 6429g
  • Idle current(10V) : 0.96A
  • Internal resistance : 84mΩ
  • Peak current(1s) : 58.8A
  • Weight(with cable) : 133.4g

Recommended parts

(not included)

Included

  • 1x Motor
  • 1x Hardware set
