Manufacturer : Iflight / Référence : B015342

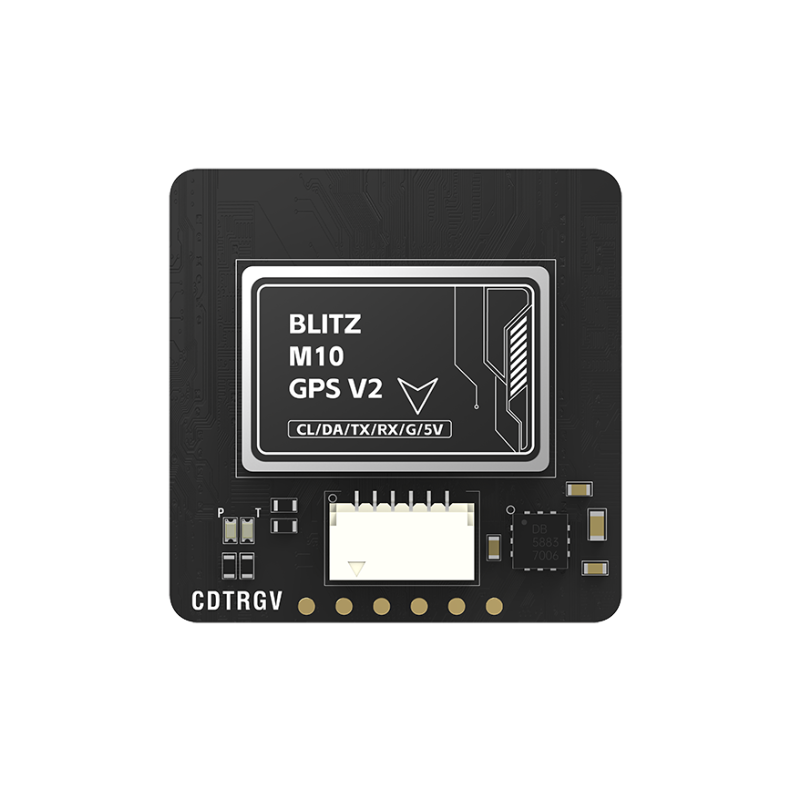

Blitz M10 GPS V2 By Iflight
En stock
€39.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Iflight's Blitz M10 V2 GPS (25*25mm) with built-in QMC5883L compass provides faster and more stable satellite searching.
Find a more reliable and efficient GPS experience thanks to this new version offering faster and more stable satellite search.
A Farad capacitor provides faster hot start.
High sensitivity 18x18mm patch antenna brings low power consumption and strong signal.
Specifications
- Compass module: QMC5883L
- Baud Rate: 9600-460800 / 4800bps-921600bps (Default - 115200bps)
- Sensitivity: Tracking: -167dBm
- Cold start: 27s
- Hot start: 1s
- Maximum height: 80000m
- Maximum speed: 500 m/s
- Speed accuracy: 0.05 m/s
- Maximum acceleration: ≦ 4G
- Refresh Rate: 10 Hz
- GPS patch antenna size: 25 x 25 x 6 mm
- Total dimensions: 25 x 25 x 11 mm
- Weight: 16 g
- Input Voltage: 3.3-5.5 V
- GPS pin definition: RX/TX UART
- Compass pin definition: SDA/SLA
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Bullet points
- UBLOX M10 chip, low power consumption, strong signal
- Compass module QMC5883L integrated
- Built-in farad capacitor for faster hot start
- High-precision positioning
- Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
- 10 Hz Refresh rate
- Built-in Flash
Included
- 1x Blitz M10 GPS V2
- 1x Cable set
