Manufacturer : GEPRC / Référence : GP105892

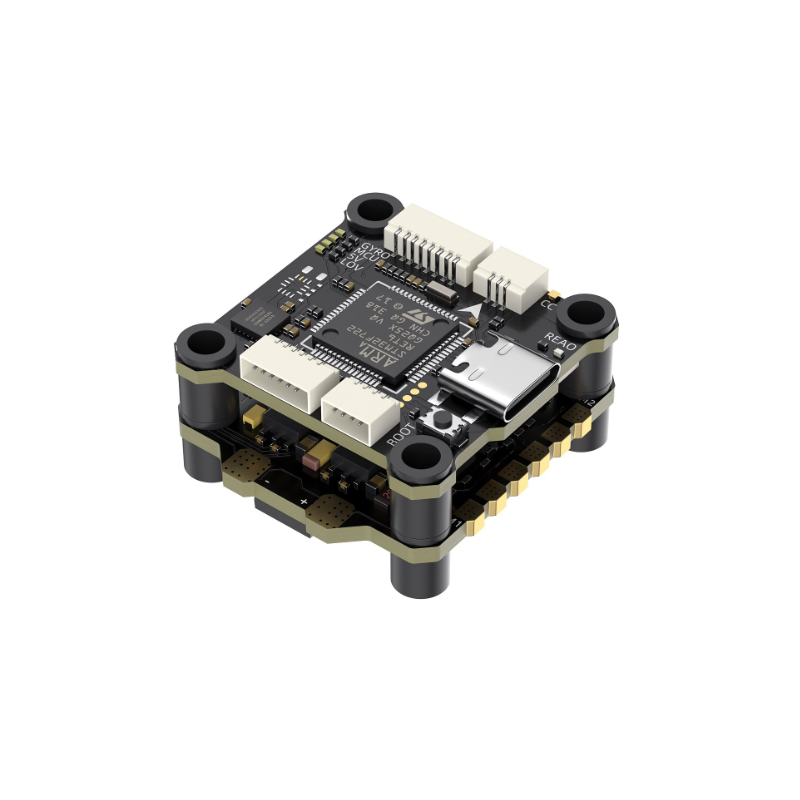

Taker F722 BL32 E55A SE Stack By GEPRC
Hors stock
€112.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Taker stack consists of an FC F722 SE with MPU6000 gyro and a 4in1 E55_96k BLHeli_32 55A ESC.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
FC
- MCU: STM32F722RET6
- IMU: MPU6000
- Black Box: 32Mb Flash
- USB: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC output: [email protected]，10V@2A dual-output BEC
- Firmware Target: TAKERF722SE
- Dimension: 31.7×31.5mm
- Moutning hole sizes：25.5×25.5mm
- Input voltage: 7.4V-25.2V（LiPo 2-6S)
- UART: 6 UARTS(for Uart6 ESC only)
- Power Filter: Integrated LC filter
- Weight: 6.0g
ESC
- Input Voltage：7.4V-25.2V（LiPo 2-6S)
- Galvanometer：Support
- PWM refresh frenquency: 24K-96K
- Continuous Current：55A
- Burst Current：60A (5s)
- Telemetry: Support
- Support Protocol：Oneshot125/Oneshot42/Mulishot modes Dshot 150/300/600
- Firmware Target: ST_G0_05
- Weight:：9.6g
Included
- 1x Flight control
- 1x ESC
- 1x 35V 470uf capacitor
- 1x XT60 power cord
- 1x 8pin flight controller ESC cable
- 4x M3*22 screws
- 6x M3 anti-slip nuts
- 12x 4 convert to 3mm vibration-reduction silicone
- 12x 4 convert to 2mm vibration-reduction silicone
- 1x 65mm camera lens cable
- 1x 25mm camera lens cable
- 1x Receiver cable
- 1x DJI Air Unit Cable connector
