Manufacturer : Skystars / Référence : SKY-150755

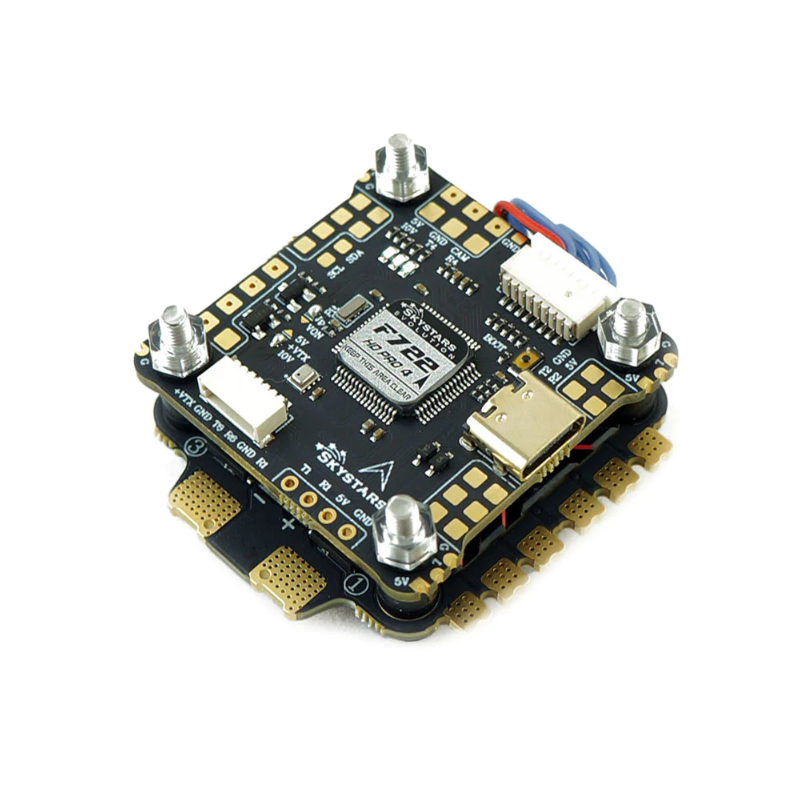

F722HD PRO4 + KM65A Stack By Skystars
En stock
€126.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The SkyStars F722 HD + KM65 stack includes an F722 HD 30x30 Pro4 flight controller with a MPU6000 gyro along with a KM65A BLHeli_32 3-6S 4in1 ESC to give your quad all the power it needs.
F722 HD Pro4 FC
- MCU: STM32F722RGT6 216MHz
- Gyroscope: MPU6000
- Baro:Bmp280
- OSD: Betaflight SPI OSD DJI HD OSD(UART6)
- Black box: 16MB
- 6x Uarts: UART 1/2/3/4/5/6
- 4x PWM outputs
- 1x I2C
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- USB Type-C(USB2.0)
- 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
- 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
- VTX 10V/Vbat filtered power ON/OFF switch
- DJI FPV OSD is supported by any spare UART
- LED: 4 LED independent pads, support WS2812 programming lamp output.
- Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
- Input voltage: 3-6S
- BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
- LDO 3.3V: Max.250mA
- BetaFlight firmware: SKYSTARSF722Pro
- INAV firmware:SKYSTARSF722HD
- Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
- External size 39mm × 39mm
- Flight control weight: 6.9g
- Flight control onboard voltage sensor.
KM65 ESC
- Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
- Excellent over-current capability.
- Extreme stably support 6S LiPo battery with TVS.
- Excellent heat dissipation performance
- Better control performance F4 core MCU support 128K.
- Input voltage: 3-6S LiPo
- Con.Current: 65A
- Peak Current: 90A≥ 10S
- Firmware: BLHeli_32
- Support : Dshot 600/1200
- Mounting hole : 30.5mm/M3
- BEC: No
- Product size: 45.6*45*7.6mm
- Weight: 19g
Included
- 1x F7HD Pro4 FC
- 1x KM65 128K BL32 4IN1 ESC
- 8x Silicon grommets M4 to M3
- 2x JST-SH1.0_8pin cable, 4cm
- 1x JST-GH-6P cable for DJI port, 10cm
