Manufacturer : Hobbywing / Référence : XROTOR-45A-G2-STACK

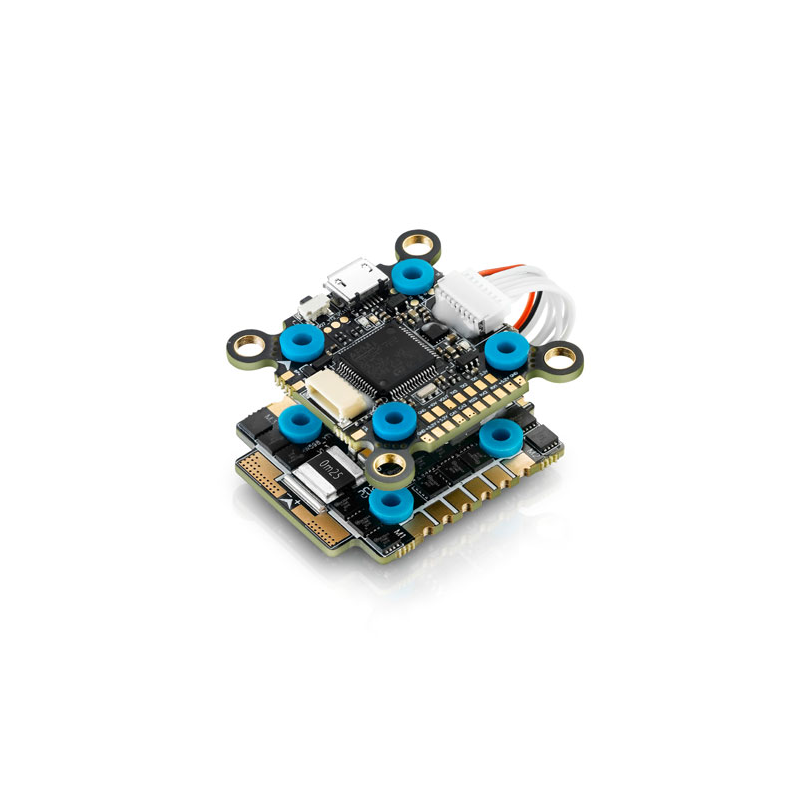

Combo XRotor Micro 45A G2 4in1 ESC&FC (BL32/F7)

5/5 (3 notifications)
En stock
€131.90
Same day shipping

14 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Important :

- Hobbywing provides multiple wire ribbon cables with different wire order for greater compatibility with other Hobbywing products.

- Also, be sure to check the wire order on your VTX HD to make sure it matches the connector order on the FC.

Here is the Hobbywing combo including the G2 version of the 45A 6S 4in1 ESC with the new F7 flight controller.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

ESC Specifications

  • Application : FPV avec empattement diagonal de 130 Ă  280 mm
  • EntrĂ©e d'alimentation LiPo : 3S-6S
  • Courant continu : 45Ax4
  • Courant d'Ă©clatement : 60Ax4
  • Sortie BEC : [email protected] / [email protected]
  • Fils d'entrĂ©e : 12AWG-130mm* (Rouge/Noir)
  • Fil de sortie : Pas de fils mais des pattes de soudure
  • Connecteurs (EntrĂ©e/Sortie) : XT60 (avec fils soudĂ©s) /non
  • Poids / Taille : 11.5g / 32.7x18.4x6.2mm
  • Trous de montage : 20x20mm
  • Étalonnage des gaz : pris en charge
  • Programmation ESC : BLHeliSuite32
  • DEO : Pris en charge
  • Mode OneShot : pris en charge
  • Timing : Pris en charge
  • Rotation du moteur : prise en charge

FC Specifications

  • Firmware: HOBBYWING-XROTORF7CONV
  • FC Programmation :  Supported
  • Programming via : betaflight / Cleanflight configurator
  • Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
  • Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
  • Compatibles with (Multirotors) : Quadcopters
  • OSD :  Built-in
  • Voltage monitoring : Supported
  • Current monitoring : Supported
  • External buzzer : Supported
  • LED Control : Supported
  • BEC : 5V @ 1.5A / 10V @ 1.5A
  • USB port : MicroUSB
  • Size: 30x30
  • Weight: 3.3g
  • Applications : 300mm above FPVs

Included

  • 1x XRotor Micro 45A G2 (20x20) 4en1 ESC
  • 1x XRotor Flight Controller F7 (20x20 and 30x30)
  • 1x Manual
