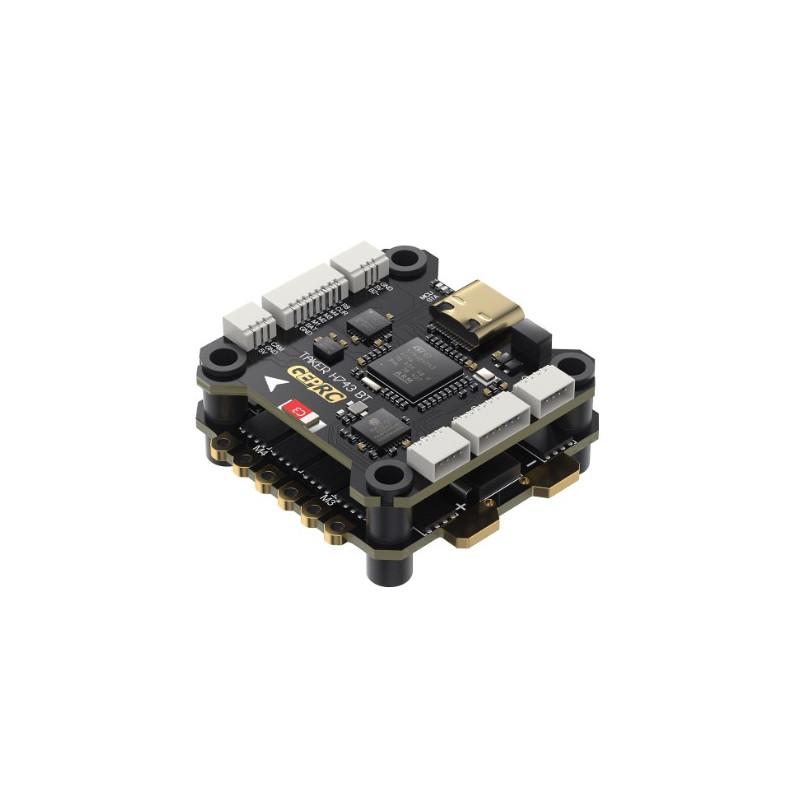

Taker H743 BT 32Bit 50A Stack By GEPRC

The TAKER H743 BT 32Bit 50A Stack is the latest high-performance stack system developed by the GEPRC team, designed to deliver exceptional results in both freestyle and racing applications. At its core is a powerful STM32H743VIH6 processor, built on a Cortex-M7 architecture and running at up to 480MHz, ensuring lightning-fast response and rock-solid stability in flight.

Equipped with a dual gyroscope setup, combining the MPU6000 and ICM42688-P, this stack offers ultra-precise control and refined handling. Its built-in Bluetooth allows for wireless parameter tuning, while the integrated 512MB Blackbox provides ample storage for flight data logging and post-flight analysis. With eight motor output ports, it’s fully compatible with X8 configurations.

Offering full support for Betaflight, INAV, and Ardupilot, the system is extremely versatile and suited for a wide range of flight styles and firmware preferences. Power distribution is handled by a dual independent BEC, delivering 5V@3A and [email protected], ensuring stable voltage for all essential components.

Additional features include seven UART ports, a built-in barometer, and plug-and-play compatibility for an easy setup process. This stack provides an ultra-smooth, responsive, and reliable flight experience, making it an ideal choice for high-end FPV builds.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
