Manufacturer : Matek / Référence : PM20S-2
Power Module PM20S-2 By Matek
En stock
€64.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The PM20S module has a wide operating input range of 9 to 85V with TVS protection.
With a weight of 63g, it is made with 100V DC components.
Specifications
- PM20S-2 is made with 100V DC components.
- Support 9V to 85V DC operating Input voltage with 85V TVS protection
- 2x independent Step-Down Voltage Regulators

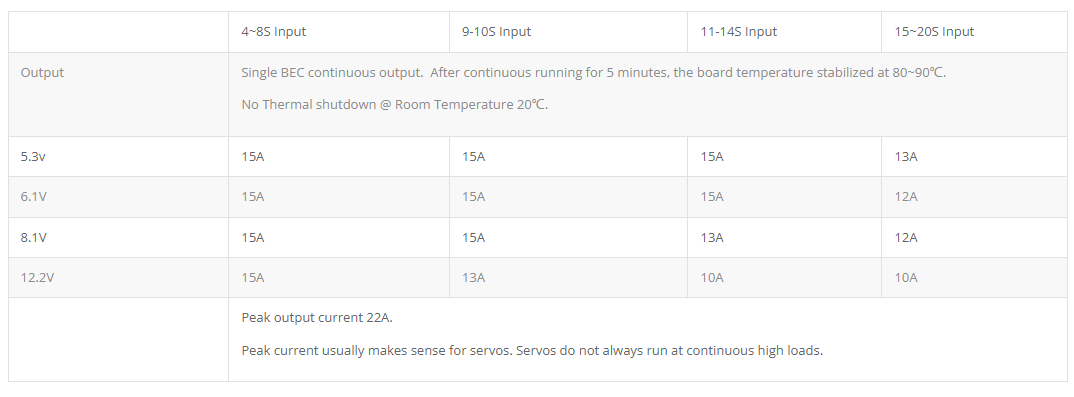

- Regulator 1 , 5.3V / 6.1V / 8.1V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Regulator 2 , 5.3V / 8.1V / 12.2V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
- 1K:25K voltage divider built-in for 3.3V based voltage ADC

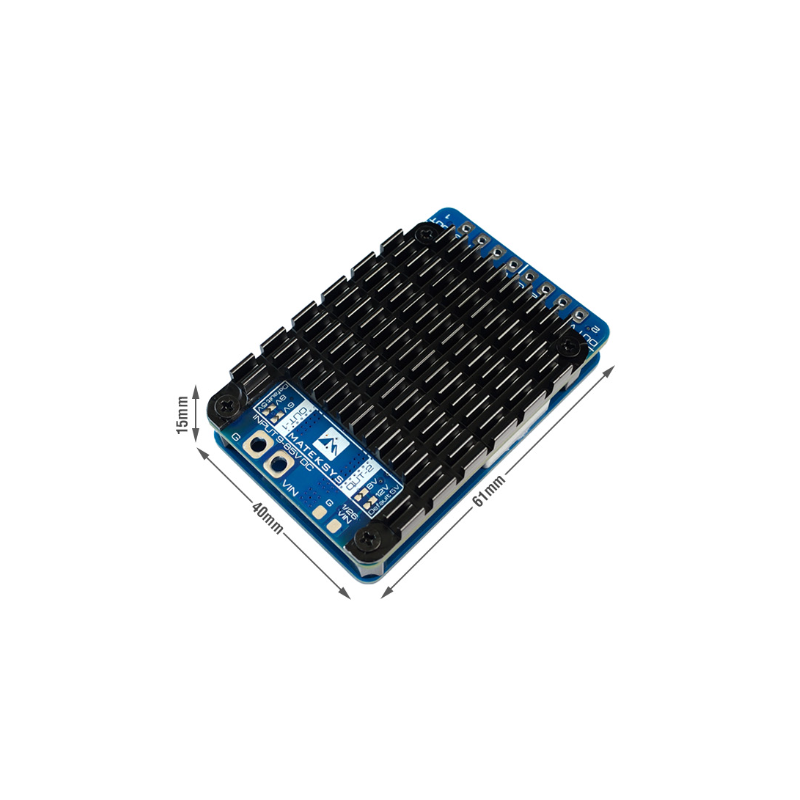

- Size & Weight: 61x40x15mm, 63g
Regulator 1
- Output voltage 5.3V / 6.1V / 8.1V options.
- Output voltage tolerance 1.5%

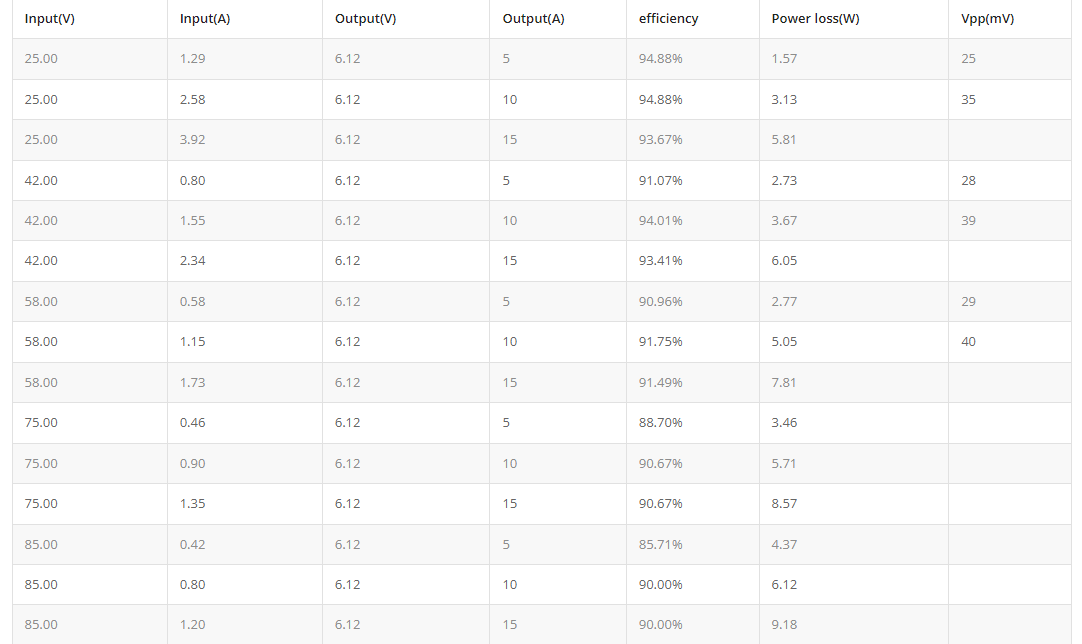

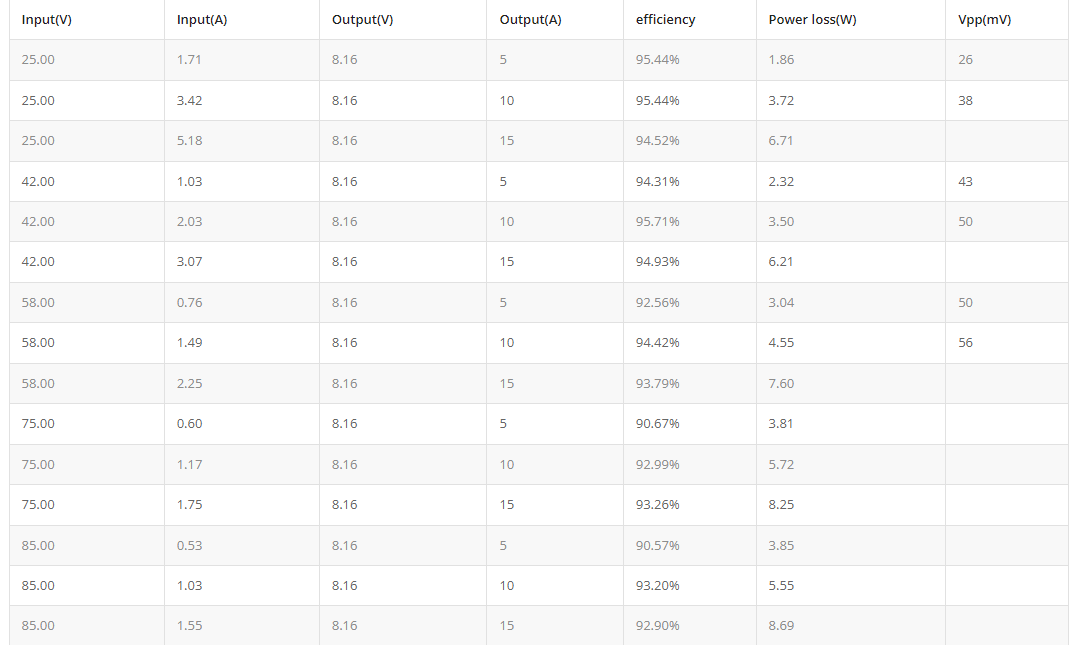

- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Output ripple 25mV (VIN=42V, Output 5.3V @ 5A), 35mV (VIN=58V, Output 5.3V @ 15A)
- Standby current: 10~30mA
- Reverse Input voltage protection: No
- Thermal Shutdown 150C
- Output Short-circuit tolerant (1 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
Regulator 2
- Output voltage 5.3V / 8.1V/12.2V options.
- Output voltage tolerance 1.5%

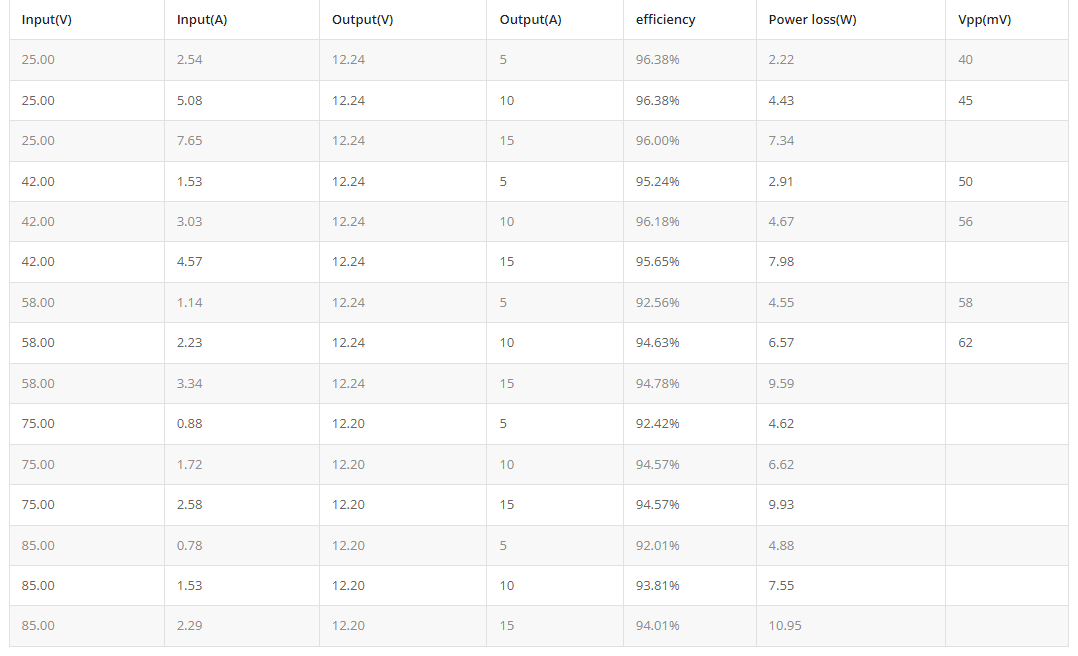

- Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
- Supports typical continuous output current of up to 15A, Peak current of up to 22A.
- Output ripple 58mV (VIN=58V, Output 12V @ 5A)
- Standby current: 10~30mA
- Reverse Input voltage protection: No
- Thermal Shutdown 150C
- Output Short-circuit tolerant (1 seconds)
- Overcurrent protection & self-recovery
- Tip: Input voltage >= 15V is required for continuous output current of 15A
Included
- 1x PM20S-2
