Manufacturer : Team BlackSheep / Référence : A-TBSS-LCID2

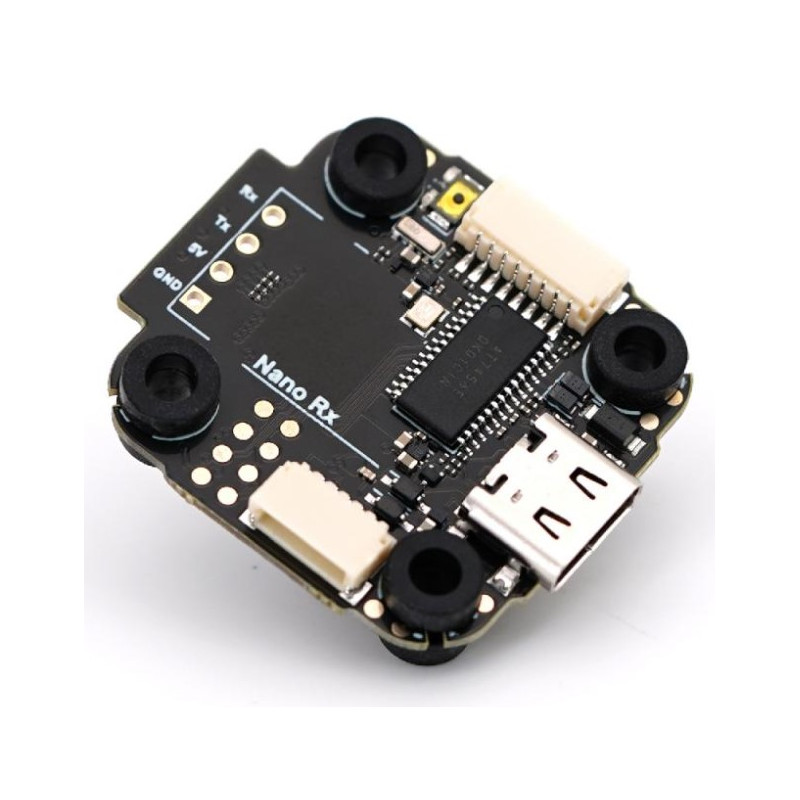

Lucid Freestyle F435 ICM42688P Flight Controller By TBS
Hors stock
€39.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The F435 flight controller is equipped with an AT32F435RMT7 processor, an ICM42688P gyro, an 8Mb blackbox, an AT7456E OSD, a double BEC as well as 6 UARTS.
With 20*20mm mounting, the Lucid Freestyle F435 is compatible with the DJI O3 and any 20*20mm ESC.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
Specifications
- MCU : AT32F435RMT7, 288MHz
- Gyro : ICM-42688P
- Motors : 4 motors, with telemetry and current sensor
- BEC : 9V, 2.5A. 5V 2A
- OSD : AT7456E
- Blackbox : 8M
- UARTs : 6 (UART1/UART3/UART4/UART5/UART7/UART8)
- Input : 3S-6S
- Size : 31mm*29mm
- Mounting : 20mm*20mm
- Weight : 4.51g
Included
- 1x TBS Lucid 20x20 FC
- 1x FC-to-ESC cable (plug & play)
- 1x DJI O3 cable (plug & play)
- 4x M3 rubber dampers
- 4x M3x8 screws
