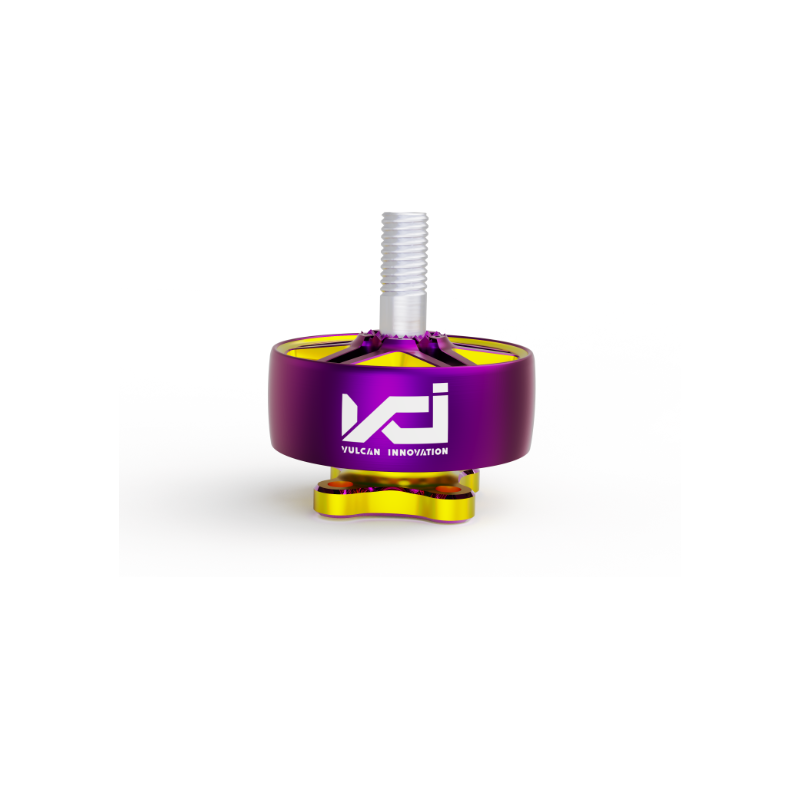

VCI 2306 - 1850KV Titan Motor By VCI

In stock

€16.58

View More Info

Quantity

This product earns you 2 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payment with

4X PayPal

2X 3X 4X

VCI 2306 - 1850KV Titan Motor By VCI - Drone-FPV-Racer.com

Detailed Description

Discover Vulcan Innovation and its racing motors, the Titan 2306.

This Titan version in 1850KV is ideal for freestyle, it guarantees smoother operation and higher efficiency providing an immersive flight experience.

The VCI 2306 have an M5 nut shaft and will be perfect associated with Gemfan F4S three-blade propellers.

Specifications

KV 1850

Shaft Type Nut

Shaft Size M5

Motors Size 23XX

Specifications

KV: 1850
Configuration: 12S14P
Internal Resistance : 95mΩ
Shaft length : 13mm
Rated voltage : 6S (24V)
Peak current : 30.18A
Idle Current (10V) : 0.7A
Magnets : N52SH arc
Stator size : ⌀23*L6mm
Dimensions : ⌀28.7*L31.4mm
Shaft diameter : M5
Silicone wire : 20AWG 150mm
Max power : 724.32W
Weight (with cable) : ~32.35g

Typical Setup

Specifications

KV: 1850
Configuration: 12S14P
Internal Resistance : 95mΩ
Shaft length : 13mm
Rated voltage : 6S (24V)
Peak current : 30.18A
Idle Current (10V) : 0.7A
Magnets : N52SH arc
Stator size : ⌀23*L6mm
Dimensions : ⌀28.7*L31.4mm
Shaft diameter : M5
Silicone wire : 20AWG 150mm
Max power : 724.32W
Weight (with cable) : ~32.35g

Included

1x VCI 2306 Titan motor
1x Set of screws
1x Nut
