Manufacturer : Walksnail / Référence : C0PJ-18GPS

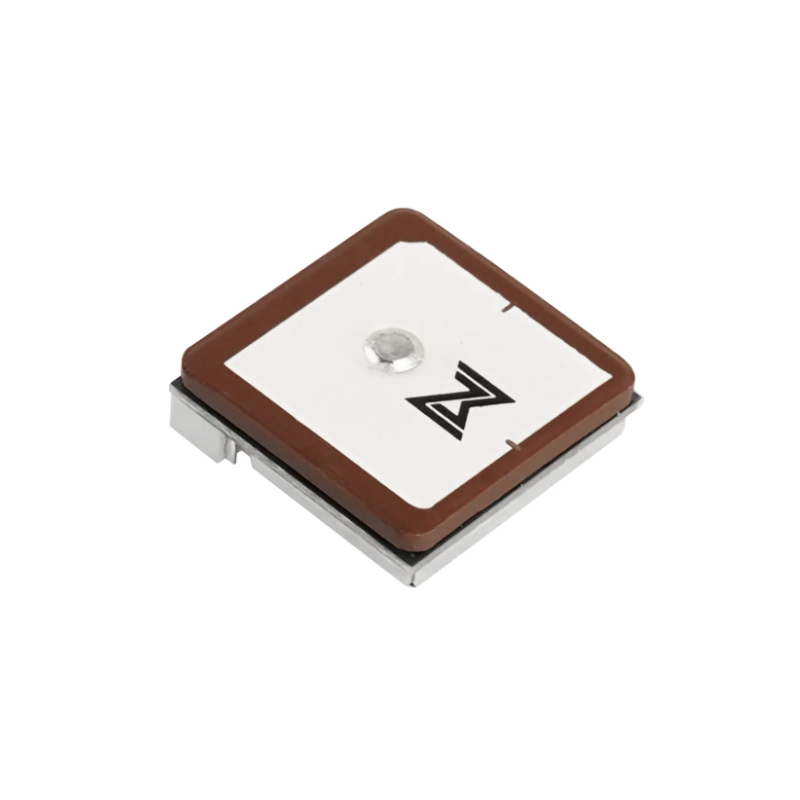

WS-M181 GPS By Walksnail
En stock
€19.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Get high performance and precise positioning with this WS-M181 GPS module from Walksnail, ensuring safety for your flights.
You will be able to display in your OSD the speed of the drone, the altitude, the distance traveled in flight as well as the GPS coordinates.
Compatible with GLONASS, Galileo, BZENSS, SBSA, GPS and BDS modes, the Walksnail GPS has a ceramic antenna and a built-in battery.
Note: The GPS is a 10th generation chip, so the the flight controller must use Betaflight firmware 4.3.0 and above, firmware below 4.29 uses the NMEA protocol.
Specifications
- Chip : M10 (ten generation chip)
- Frequency : GPS L1,GLONASS L1,BDSB1,GALILEO E1,SBAS L1.QZSS L1
- Power : 5V
- Size : 18mm*18mm*4.6mm
- Antenna : ceramic antenna (oil spraying process, prevent scratching and oxidation)
- Receiving channels : 72 search channels
- Compass : QMC5883
- Baud rate : 115200dps
- Output protocol : NMEA UBLOX (dual protocol)
- Output frequency : 1Hz-10Hz, Default 10Hz
- Speed accuracy : 0.05m/s
- Horizontal positioning accuracy : 2D ACC1.5m(open air)
- Receiving sensitivity : Trace-162dBm / Capture -160dBm
- Altitude : 50000m
- Speed : 500m/s
- Acceleration :4G
- Operating temperature : -40℃-+85℃
- Storage temperature : -40℃-+105℃
Included
- 1x WS-M181
