Manufacturer : Speedy Bee / Référence : SB-F4-40A-AIO
F405 40A Bluejay AIO By SpeedyBee
Hors stock
€63.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The SpeedyBee F405 40A AIO is 25.5*25.5mm mounting, it includes a F405 flight controller with ICM42688P gyro and the new SPA06-003 barometer.
The 40A ESC supports Bluejay JH-40 firmware, 3-6S LiPo voltage and Dshot600/300 protocols.
This AIO is compatible with both digital and analog VTX systems.
F405 FC
- MCU : STM32F405
- Gyro : ICM-42688P
- USB Port Type : Type-C
- Barometer : SPA06-003
- OSD : Supported
- Bluetooth BLE : Supported, Bluetooth speed enhancement - 2.0
- Wireless Flight Controller Firmware Update : Supported (no need to press physical BOOT button)
- Wireless Download & BlackBox Analysis : Not supported
- DJI Air Unit Connection Method : Supports both 6-pin direct insertion and soldering
- 6-pin DJI Sky Port Direct Insertion : Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
- Flash (for BlackBox) : 8MB
- Betaflight CC Pads (Camera Parameter Adjustment) : Supported
- Input Voltage : 3S-6S LiPo battery
- 4V5 Output : Two 4V5 outputs; total current 1A
- 5V BEC Output : Three 5V outputs; total current 2A; shared with 4V5
- 9V BEC Output : None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
- MOTOR : M1-M4
- UART : 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
- ESC Telemetry : None
- I2C : Supported
- LED Pads : Supported, used to control WS2812 LED lights
- Buzzer Pads : Supported, BZ+ and BZ- pads
- BOOT Button : Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
- RSSI Pads : None
- SmartPort : Not supported
- Supported Flight Controller Firmware : BetaFlight (Default), INAV
- Firmware Target Name : SPEEDYBEE F405AIO

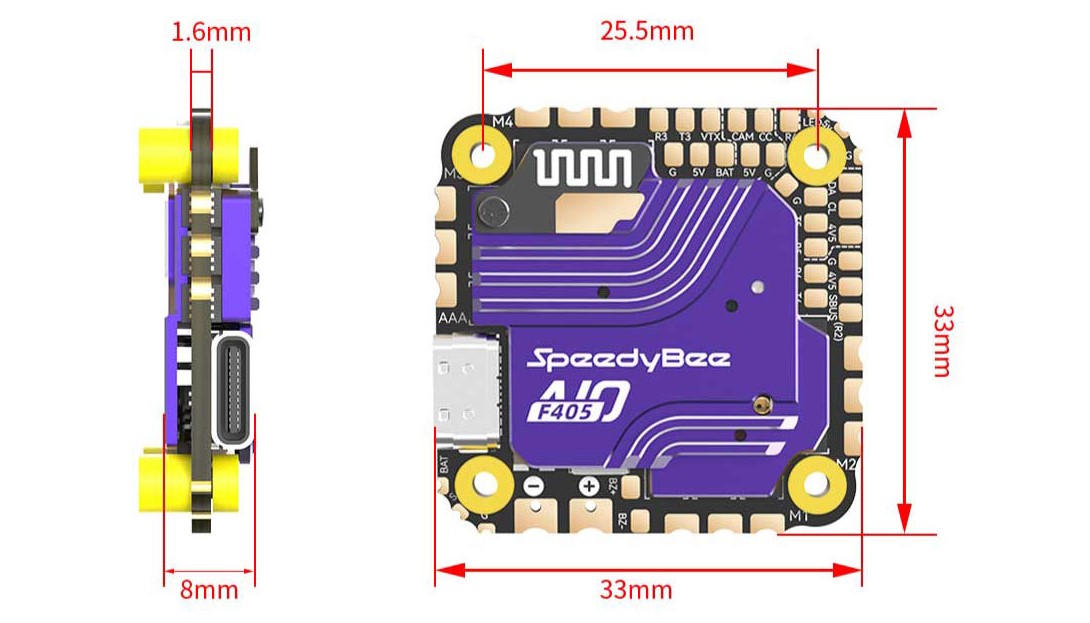

- Mounting : 25.5 x 25.5mm, 2mm hole diameter
- Dimensions : 33.0mm (length) x 33.0mm (width) x 8mm (height)
- Weight : 13.6g (including CNC)
40A ESC
- Input Voltage : 3-6S LiPo battery
- Continuous Current : 40A
- Burst Current : 45A (10s)
- ESC Protocol : Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.
- Output Voltage : VBAT battery voltage (used to power the flight controller)
- Current Sensor : Supported (Scale = 254, Offset = 0)
- Firmware : Bluejay JH-40 48kHz
Included
- 1x F405 AIO
- 1x Soldering practice board
- 1x DJI air unit 6 pin 80mm connection cable
- 1x 35V 470uF capacitor
- 4x M2*6.6mm damper
- 5x M2 silicone ring
- 5x M2 nylon hex nut
- 1x XT30 cable
- 1x Type-C extension module
- 1x Power expansion board
- 1x BEC
- 2x Heat shrink tube
- 1x 4pin 80mm cable
- 4x M2*20mm screw
- 4x M2*12mm screw
- 1x 6pin 30mm cable for BEC
- 2x Capacitor heat shrink tube
- 1x Manual
