Manufacturer : TuneRC / Référence : TR-FC-F08N
Noodle AT32F435 Flight Controller By TuneRC
En stock
€37.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

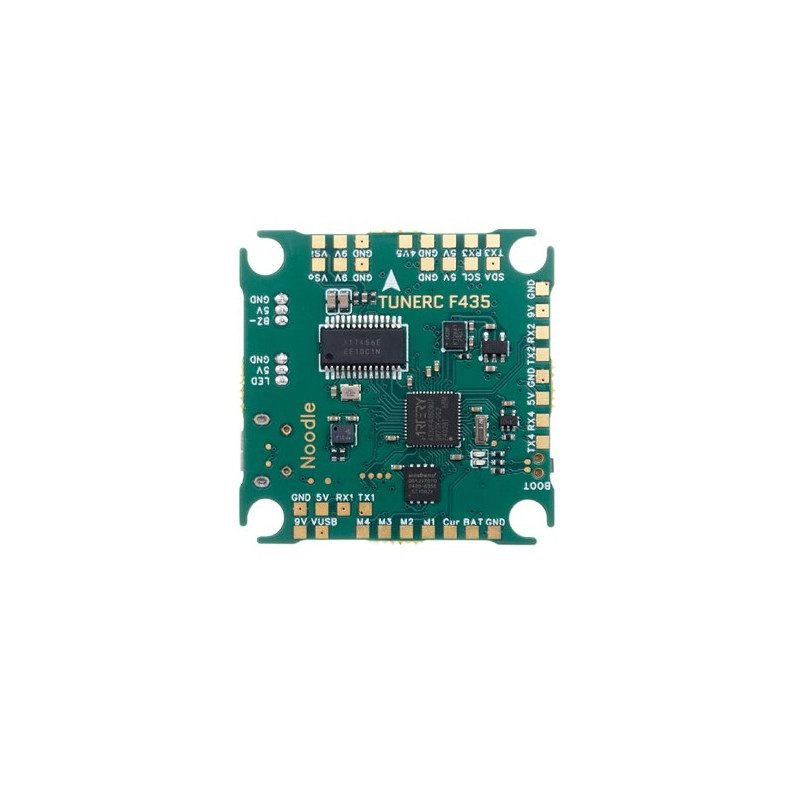

The TuneRC Noodle Flight Controller is a versatile FC that is suitable for different builds such as racing quads, freestyle quads or even cinelifters.
Compatible with both analog and digital VTX, the Noodle AT32F435 features an ICM42688P gyro, built-in barometer, 8M blackbox and mounts in 30.5*30.5mm.
Specifications
- MCU : AT32F435CGU7
- OSD : AT7456E
- Onboard Gyro : ICM-42688-P
- Onboard Barometer : DPS310
- Flash : W25Q64 (8M)
- ESC Signal : M1-M4
- 4x UARTs
- 1x I2C
- Input Voltage : 10.5-28V (3-6S)
- BEC Output : 5V1.5A 9V2A
- Firmware : Betaflight Target: TUNERCF435
- Widest Dimension : 37mm x 37mm
- Mounting Holes Pattern : 30.5mm x 30.5mm (M3 grommets to make M3 mount)
- Weight : 7.3g
- Connectors : except LED connector and buzzer connector, all the other connectors onboard apply to Betaflight connector standard
Included
- 1x Noodle AT32F435 Flight Controller
- 6x Grommets
- 2x 4-pin SH 1.0 cable for UART
- 2x 3-pin MX1.25 cable for buzzer/LED
