Manufacturer : AXIS Flying / Référence : ARGUS-STACK-MINI-F7PRO-55A

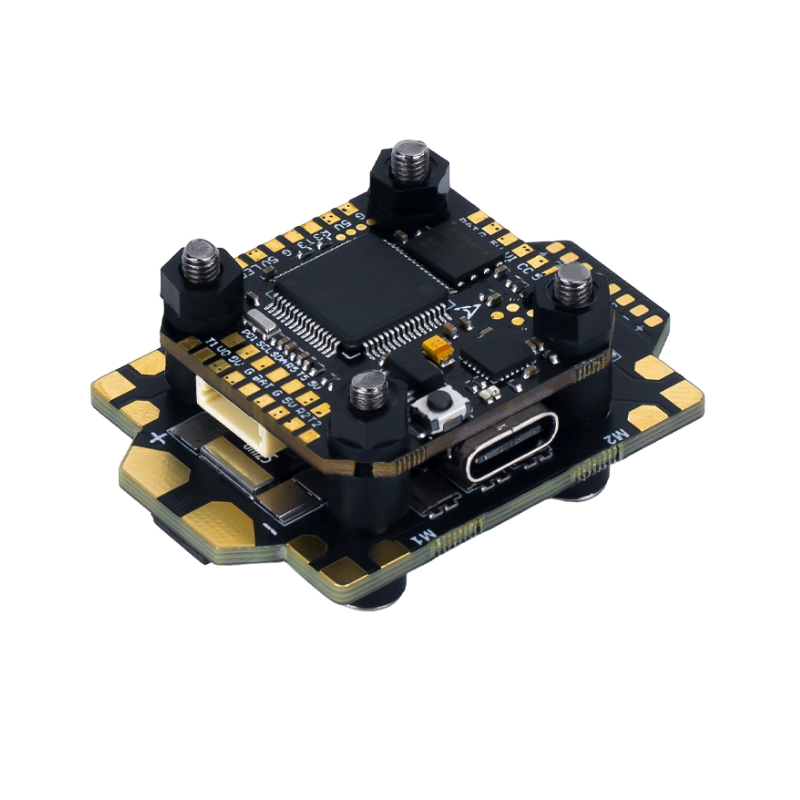

Argus Mini F722 Pro 55A Stack By AxisFlying

Hors stock
€144.90
Out-of-Stock Notify me when the product is available again

15 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The Argus mini stack (20*20mm) from AxisFlying has been specially designed for small FPV drones, further reducing weight while providing stable and excellent control.

It has an Argus Mini F722 pro flight controller supporting up to 4 motor outputs and having a 16Mb blackbox and an ICM42688P gyro.

The 4in1 55A ESC supports BLHeli_32, 2-6S voltage and has 24-96kHz PWM frequency.

FC

  • MCU : STM32F722RET6
  • Target : AXIS FLYING F7 PRO
  • Gyroscope: ICM42688P
  • UARTS: 5
  • OSD : Supported
  • Blackbox: 16Mb
  • BEC : 5V 3A
  • Mounting holes: 20x20mm/M2/M3
  • Power supply: LiPo 4 to 6S (14.8 to 26.1V)
  • Dimensions: 28.5 x 27 x 6.2 mm
  • Weight: ~5g

ESC

  • Amperage: 55A
  • Burst : 65A
  • MCU : AT32F421G8U7
  • Firmware: BLHeli32 (BLHeli32_ATF4_04 - Rev. 32.9)
  • PWM: 24 to 96kHz
  • Mounting holes: 20x20mm
  • Telemetry : Supported
  • BEC : Not supported
  • Amperage meter : Scale 200
  • Power supply: LiPo 2 to 6S
  • Dimensions: 44.3*31.3mm
  • Weight: 11g

Included

  • 1x F722 Pro Flight Controller
  • 1x 4in1 55A ESC
  • 1x Short Cable
  • 1x Long connection cable
  • 1x Capacitor: 35V 470uF
  • 1x VTX HD connector cable
  • 8x Damper M2
  • 8x Damper M3
  • 4x M2*25 screws
  • 4x M3*25 screws
  • 4x M2 Nut
  • 4x M3 Nut
  • 1x XT60 Power Cable
