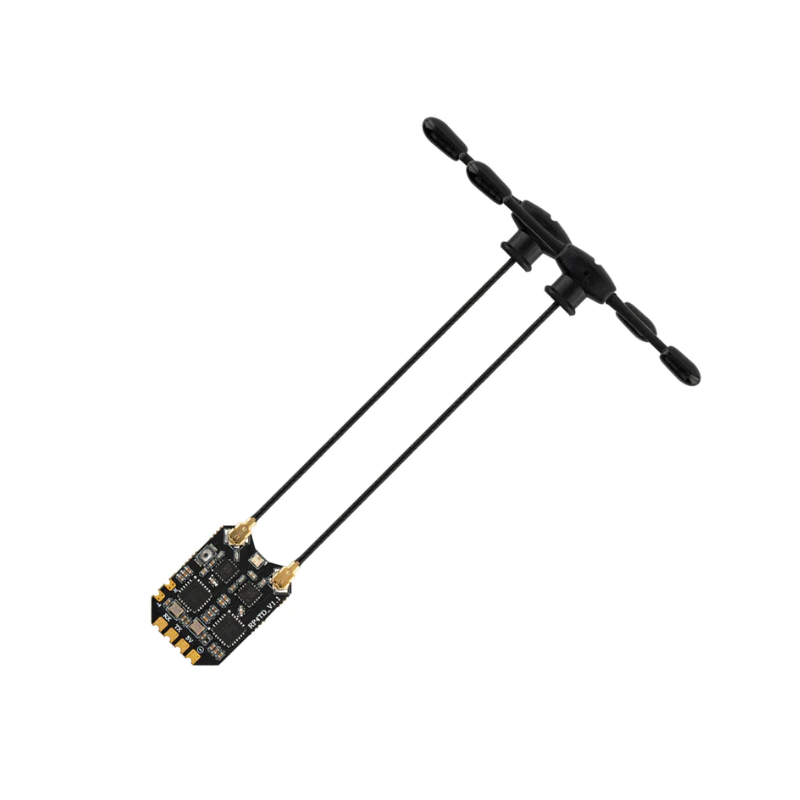

RP4TD ELRS 2.4G Diversity Receiver By RadioMaster

Hors stock
€28.90
Out-of-Stock Notify me when the product is available again

3 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

RadioMaster's RP4TD excels in signal sensitivity, signal-to-noise ratio and overall performance.

The power circuit ensures lower operating temperatures during prolonged use.

Additionally, dual TCXO contributes to maximum frequency stability, making the RP4TD a leader in its category.

Equipped with built-in Wi-Fi, this Diversity receiver will allow you to configure it wirelessly via your PC or laptop.

Suitable for drones and flying wings, the RP4TD can be installed in virtually any application requiring a serial receiver.

*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.

Specifications

  • Type: ISM
  • MCU: ESP32
  • RF Chip: SX1281 x 2
  • Antenna: 65mm 2.4GHz T Antenna x 2
  • Frequency Range: 2.4GHz
  • Maximum Refresh Rate: 500Hz / F1000Hz
  • Telemetry RF Power: Max 2x 100mW
  • Working Voltage: DC 4.5-12.0V
  • Weight: 1.4g (without antenna)
  • Dimension: 23.7*16.3*4.0mm
  • Firmware Version: ExpressLRS V3.3.0 EU-LBT pre-installed
  • FW Target: RadioMaster RP4TD 2400 RX
  • Bus interface: CRSF
  • Extend interface: UART

Bullet points

  • Gemini mode compatible
  • Reliable DCDC Power supply circuit
  • Class leading SNR and RSSI performance
  • Optimized PCB design for better heat dissipation
  • Upgraded antenna with greater durability and performance
  • UART pads for extended applications
  • Dual TCXO (temperature compensated crystal oscillator)
  • 2x 100mw RF Telemetry power output
  • Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Included

  • 1x RP4TD ExpressLRS 2.4GHz Diversity Receiver
  • 1x CRSF wire
  • 3x Heat-Shrinkable Tube
  • 2x 65mm 2.4GHz T Antenna (Installed on receiver)
  • 1x User Manual
