Manufacturer : Flywoo / Référence : FW19002582

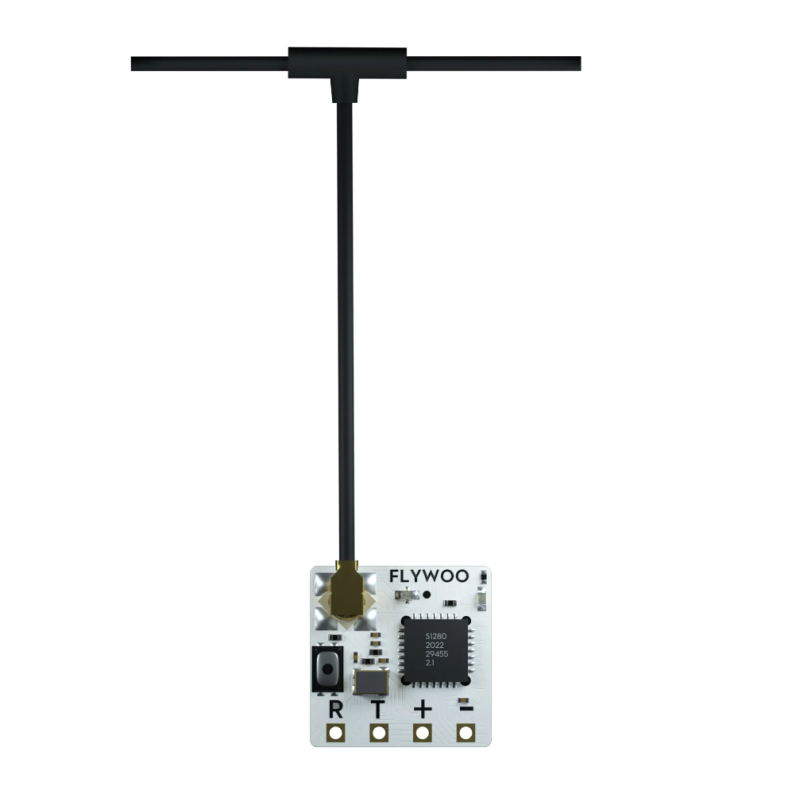

TCXO 2.4G ELRS EL24P Receiver - Flywoo
En stock
€19.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

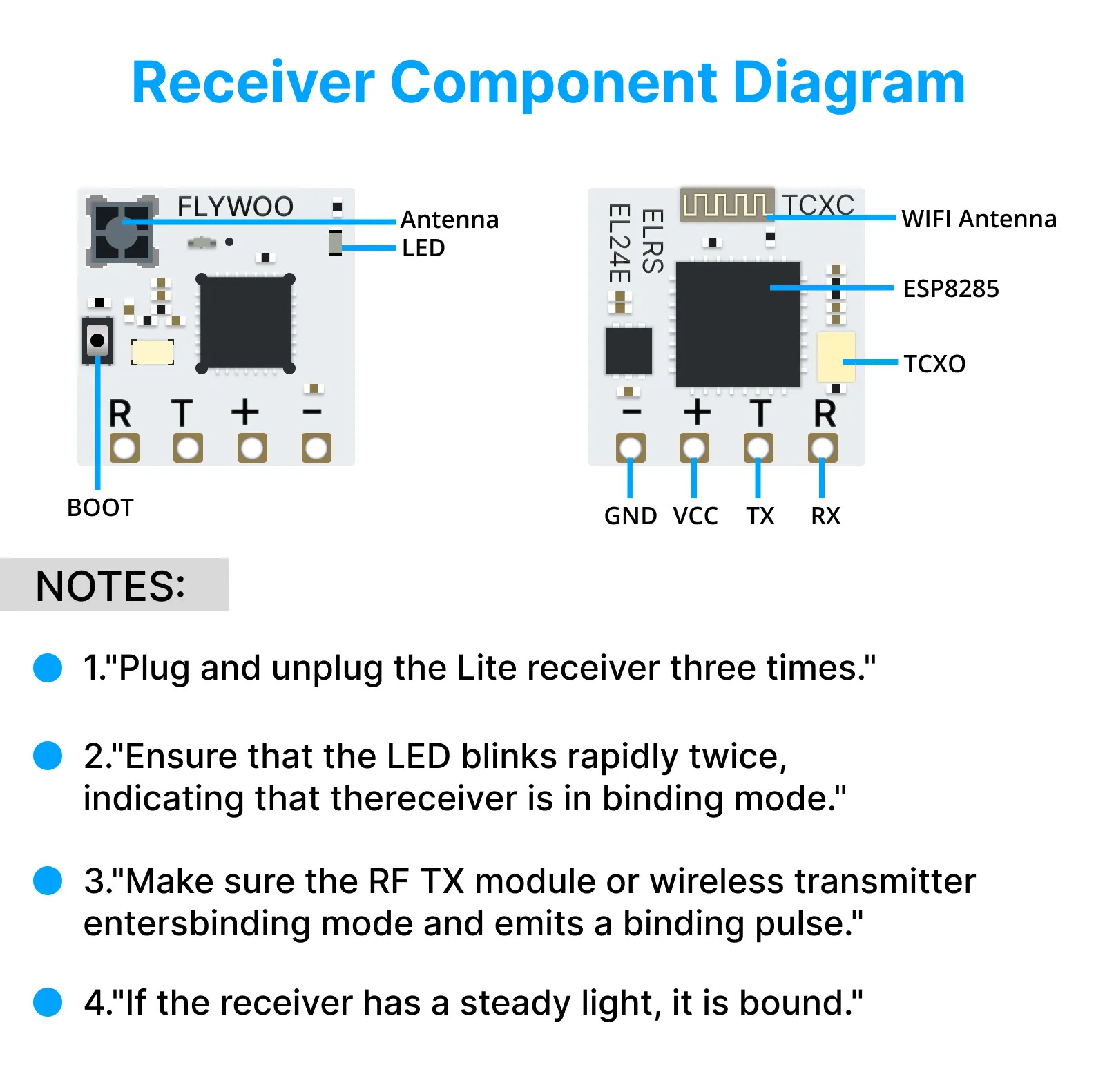

The new receiver by Flywoo is based on ExpressLRS 2.4G. Small and very light, the EL24P uses the ESP8285 MCU, which will allow you to update the Firmware via Wifi.
Equipped with a Temperature-Compensated Crystal Oscillator (TCXO) it helps the improvement of the accuracy of the MCU clock frequency, thereby improving the performance and reliability of the RC link.
It enables longer control distances, allowing users to operate devices within a wider range. This module boasts low latency and high refresh rates.
Bullet Points
- Enhances MCU clock frequency accuracy
- Improves RC link performance and reliability
- Enables longer control distances
- Low latency and high refresh rates
- Built-in SMD antenna
- Based on ESP8285 MCU
- Upgradeable via WiFi
- Equipped with SX1280 (or SX1281) IMLTRT RF module.
Specifications
- Type: ISM2.4GHz
- ESP8285 MCU
- SX1280(SX1281)IMLTRT RF Module
- Frequency Range: 2400 MHz to 2500 MHz
- Receive refresh rate: 25HZ~500Hz
- Working voltage: 5v
- Weight: 0.44 gram(without antenna)
- Dimension: 10mm*10mm*6mm

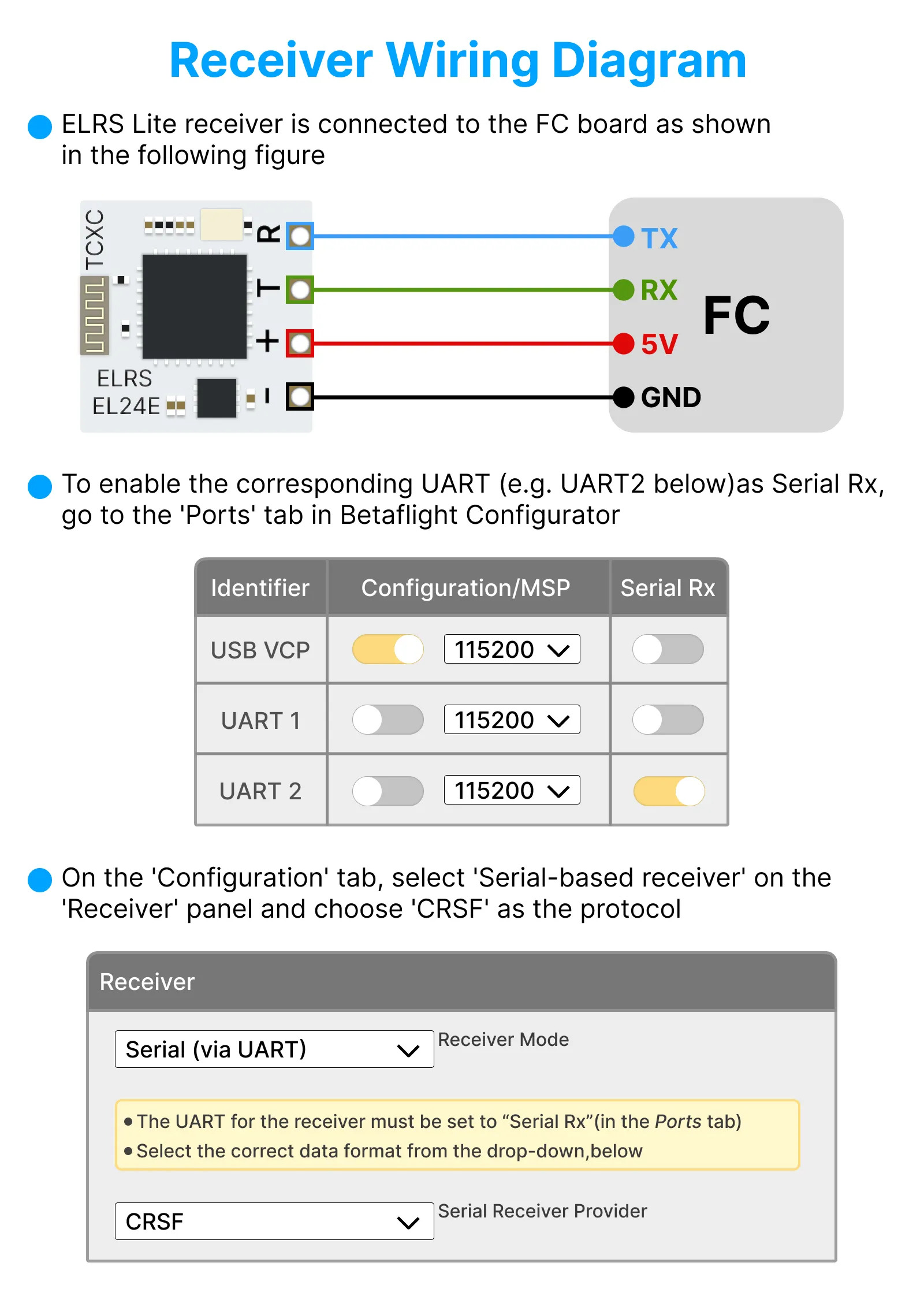

- Communication Protocol: CRSF(Betaflight)
- Peak gain: 3.7dB
- Default Firmware : Flywoo EL24E 2.4GHz RX 3.0.0
- Built-in a TCXO (temperature-compensated crystal oscillator)
Included
- 1 x TCXO 2.4G ELRS EL24P Receiver
- 1 x Silicone Cable
- 1 x Heat shrink tubing
- 1 X T Antenna
