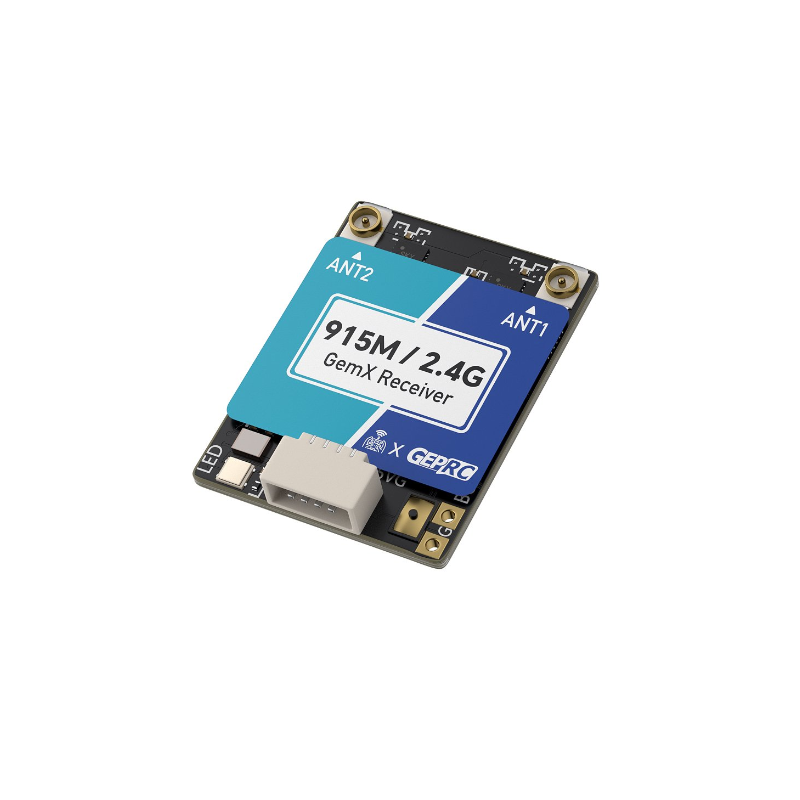

ELRS 915M/2.4G Gemini Xrossband Receiver By GEPRC
Related accessories
Technical characteristics
The Gemini Xrossband ELRS 915M/2.4G receiver from GEPRC is a new dual-band system developed from the ExpressLRS open source project.
Featuring two LR1121 chips that allow easy switching between 915M Gemini, 2.4G Gemini and dual-band 915M+2.4G modes, the receiver is compatible with existing ELRS 915M and 2.4G TX modules.
In dual-frequency mode, the Xrossband Gemini offers better stability and less interference. The TCXO oscillator ensures reliable performance despite temperature variations, with a telemetry power of up to 100mW.
Finally, a built-in WiFi antenna allows for easier firmware updates and the SH1.0 connector simplifies installation.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
- Dimension: 18×23.6×5.7mm
- Weight: 1.7g (only receiver)
- Chips: ESP32-PICO-D4, LR1121x2
- Crystal Oscillator: TCXO
- Frequency Bands: 915MHz Gemini,2.4GHz Gemini,915M+2.4G Dual-Band
- Refresh Rate: 25Hz-1000Hz
- Operating Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 100mW
- Firmware: GEPRC 900/2400 Gemini Xrossband RX
Bullet points
- Advanced ExpressLRS 915M/2.4G dual-frequency system
- Based on Semtech’s third-generation LR1121 RF chip
- Compact at 18×23.6×5.7mm and weighing just 1.7g
- Supports 915M Gemini, 2.4G Gemini, 915M+2.4G dual-RF
- Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
- Telemetry power up to 100mW
- Refresh rate up to 1000Hz
- Supports WiFi firmware updates
- Includes an SH1.0 connector for easy installation
Included
- 1x ELRS 915M/2.4G Gemini Xrossband Receiver
- 2x 915M/2.4G Dual-band T-Antennas
- 1x Heat shrink tube
- 1x 4-pin silicone connect cable
- 1x User manual
