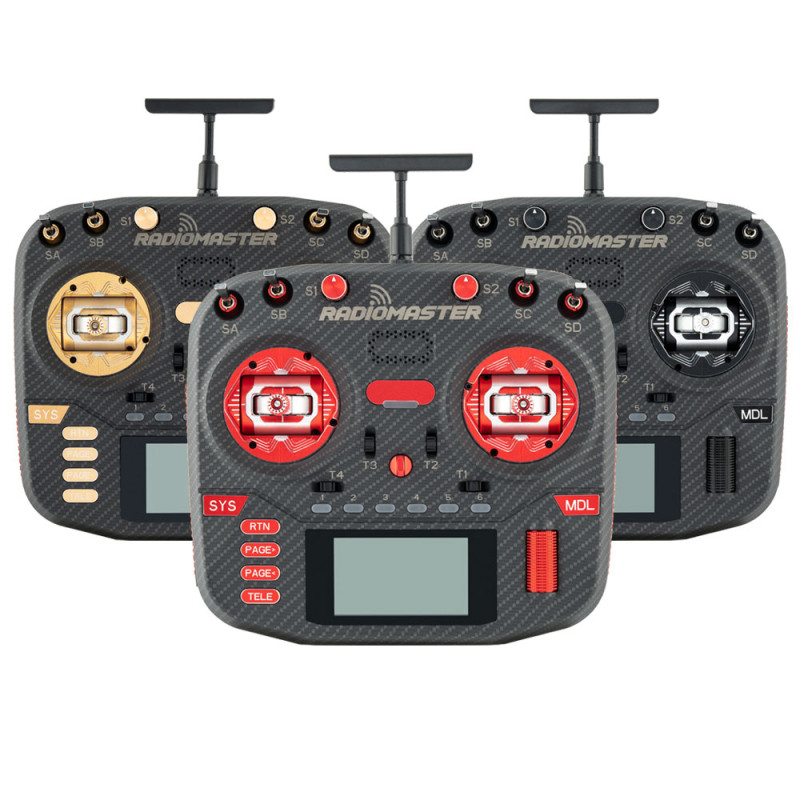

Boxer Max Radio - ELRS 2.4G By RadioMaster
Related accessories
Technical characteristics
RadioMaster's new BOXER MAX radio appears to be the perfect combination of size and ergonomics, making it the perfect choice for pilots on the go.
Equipped with AG01 Hall gimbals and supporting the ExpressLRS 2.4GHz protocol, the Boxer MAX is described as the new champion by RadioMaster.
You are looking for power, ergonomics, comfort and compactness, this radio is made for you.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Bullet points
- Optional 3 colors - Black/Red/Gold
- AG01 hall gimbals installed
- Carbon fiber pattern case
- CNC buttons and roller as standard
- Adjustable length CNC metal folding stand
- Upgraded black leather grips
- Featuring a powerful STM32VGT6 processor with 1MB RAM
- EdgeTX firmware pre-installed
- Support QC3.0 2.0A MAX quick charge
- 4in1 version capable of up to 20dBm RF output
- Compact design with excellent ergonomics
- New Low Profile Latching SE Switch and Momentary SF Switch
- Oversized battery compartment - Space for a 2S 6200mAh pack, up to 20 hours of battery life
- Standard JR module compartment
- Built-in module internal cooling fan
- Standardized RadioMaster button layout
- 6-Position Versatile Switch for Flight Mode Access
- Adjustable and removable T-shaped antenna
- First fabric handle for improved portability
- Interchangeable and ergonomic handles
- Redesigned SD card slot with preloaded SD card included
- External module power slots in the battery cover
- The signature RadioMaster carry case and gimbal protector are included as standard to ensure your radio stays safe on the go.
Specifications
- Color: Black/Red/Gold
- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF: ELRS 2.4GHz
- Cooling fan: Built in
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: ELRS (RF module)
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: AG01 CNC Hall Gimbal
- External module: JR / FrSKY / Crossfire compatible
- Upgrade Method: USB / SD card & EdgeTX Companion PC software
- BONUS: Radiomaster neck strap and CNC adjustable stand
Included
- 1 * BOXER Max Radio
- 1 * Signature Carry Case
- 1 * T Antenna
- 1 * USB-C Cable
- 1 * Gimbal Protector
- 1 * 1.5mm Allen Key
- 2 * M4*4 Screws
- 4 * Low Tension Springs
- 1 * Stickers
- 1 * Manual
- 1 * 18650 Battery tray (Batteries not included)
- 1 * RadioMaster Neck Strap
- 1 * Boxer KeyChain
- 1 * Screen Protector
