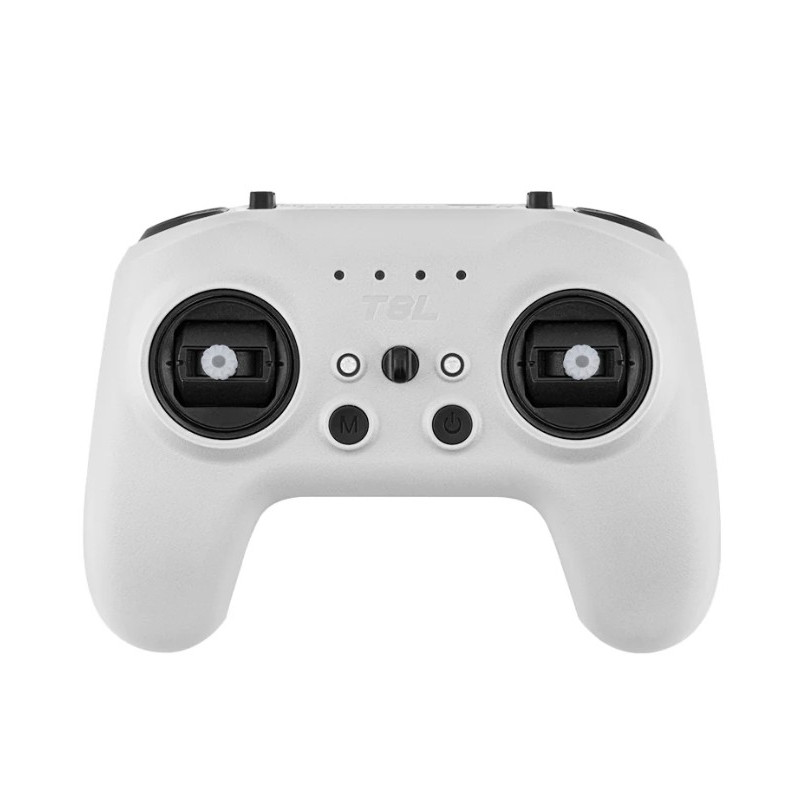

T8L Radio Controller - ELRS 2.4G By RadioMaster
Related accessories
Technical characteristics
The RadioMaster T8L ELRS 2.4GHz delivers a streamlined, highly efficient RC flying experience. Thanks to its integrated ExpressLRS 2.4GHz module (SX1281, EU-LBT certified), it provides fast transmission, extended range, and maximum reliability—essential qualities for FPV.
Designed to be compact and lightweight (just 204 g), it is the ideal solution for mobile flying sessions, indoor piloting, or use as a secondary transmitter. Its small form factor does not compromise performance: it maintains comfortable ergonomics while remaining easy to carry.
The absence of a display is not a limitation—quite the opposite. All configuration steps, including stick mapping, ELRS settings, trims, or channel adjustments, are handled through a web interface accessible via any browser, without the need for additional software. This intuitive approach greatly simplifies setup, even for beginners.
Control is based on Hall-effect gimbals, ensuring smooth, precise, and durable handling—an advantage for fluid and responsive flights. The T8L can manage up to 10 channels, depending on the receiver, which is more than sufficient for most lightweight FPV configurations.
Designed with practicality in mind, the transmitter also includes valuable additional features: a rear slider potentiometer, status LED, customizable switch logic, and USB-C charging (uses 2 × 18650 batteries, not included). This makes it a versatile radio, suitable for drones, RC airplanes, and even simulators thanks to its USB-joystick compatibility.
In summary, the T8L ELRS combines portability, ease of use, and strong technical performance. It is suited both for beginner pilots and those looking for an efficient, compact, and reliable backup radio.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.




Specifications
- Size: 165*120*70mm
- Weight: 204g
- Frequency: 2.400GHz-2.480GHz
- RF Module: 2.4GHz ExpressLRS(SX1281)
- Transmission power: Adjustable 10dBm(10mW) - Max 20dBm(100mW)
- Battery: 3.7v 18650 x 2 (Not Included)
- Charging: Built-in USB-C charging
- Firmware: T8L (Special T8L Edition, non-configurable)
- Colors: Blue, White, Grey
- Channels: Up to 10 channels (depending on the model/receiver)
- Gimbal: X5 Hall-effect, quad ball-bearing, nano gimbals
Included
- 1x T8L Radio Controller
- 1x USB-C Cable
- 4x Low Tension Gimbal Springs
- 1x User Manual
Note : Batteries not included
Bullet points
- Built-in ExpressLRS 2.4GHz module
- Single button press binding to any ExpressLRS receiver
- Quad bearing Hall-effect gimbals for smooth, precise stick control
- 5-way trim buttons with LED and audible feedback

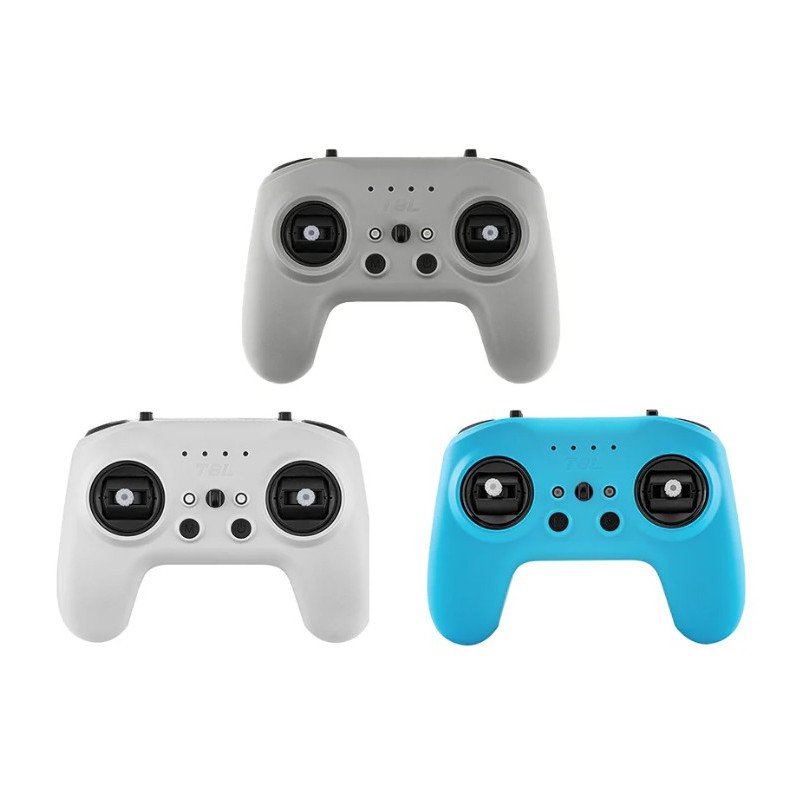

- Available in three colors: Blue, White and Grey
- USB-C port for charging, firmware updates, and simulator use
- Web-UI support (no screen required) for full configuration
- Up to 10 channels supported (receiver-dependent)
- Rear potentiometer slider for extra input or tuning
- Compact, lightweight design (just 204g) for easy transport
- LED-based interface for system status, battery level, and calibration
- Simulator-compatible—connect via USB and start flying virtually
- Custom button and switch behavior settings via Web UI
