Manufacturer : Radiomaster / Référence : HP0157.XR2
XR2 Nano ExpressLRS 2.4G Receiver By RadioMaster
En stock
€11.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

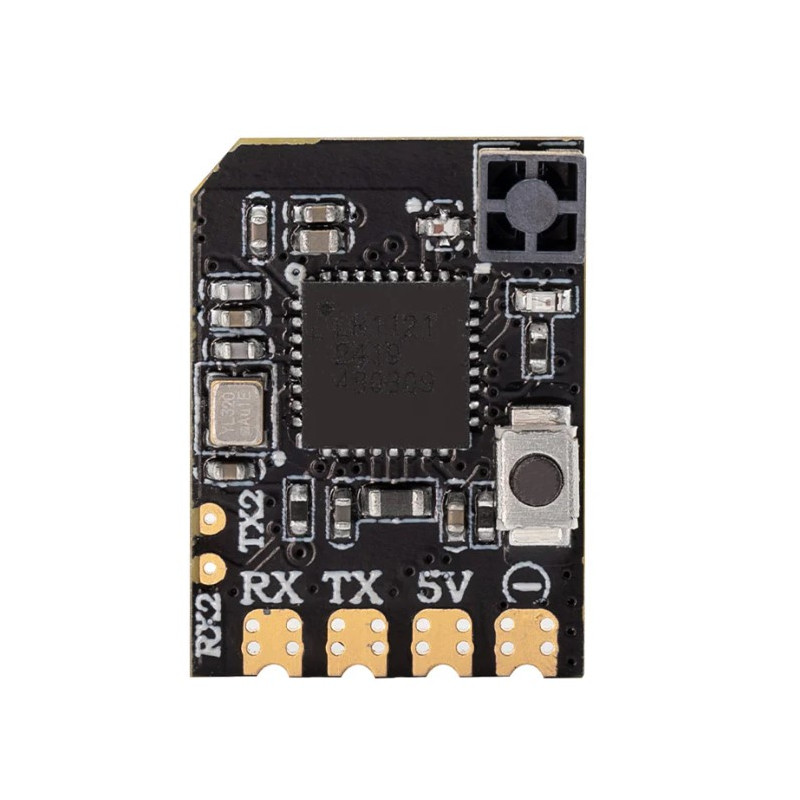

The RadioMaster XR2 receiver is a 2.4GHz ExpressLRS receiver with an integrated tower antenna that delivers exceptional reception in an ultra-compact design.
It is compatible with all 2.4G ELRS transmitters and unlocks the benefits of DK500Hz mode for LR1121-based systems, ensuring unmatched reliability and responsiveness.
Equipped with built-in Wi-Fi for easy firmware updates, the XR2 excels in whoops, micro drones and fixed wings where every millimeter counts.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
- Type: ISM2.4
- MCU: ESP32C3
- RF Chip: Semtech LR1121
- Antenna: Integrated 2.4GHz Tower Antenna
- Frequency Range: 2.400 - 2.479GHz
- Telemetry Power: 10mW
- Maximum Packet rate: DK500Hz
- Minimum Packet refresh rate: 50Hz
- Working voltage: 5V
- Weight: 0.8g
- Dimension: 16mm * 12mm * 6mm
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- FW Target: RadioMaster XR2 2.4 RX
- Bus interface 1: CRSF
- Bus interface 2: UART
Bullet points
- Integrated 2.4GHz tower antenna
- ExpressLRS 2.4GHz
- ESP32C3 high-performance MCU
- Semtech LR1121 Transceiver
- Secondary UART port for advanced functionality
- Castled pads for easy soldering
Included
- 1x XR2 Nano 2.4GHz ExpressLRS Receiver
- 1x CRSF Wire
- 3x Heat-Shrinkable Tube
