Manufacturer : Radiomaster / Référence : HP0157.XR1-2400

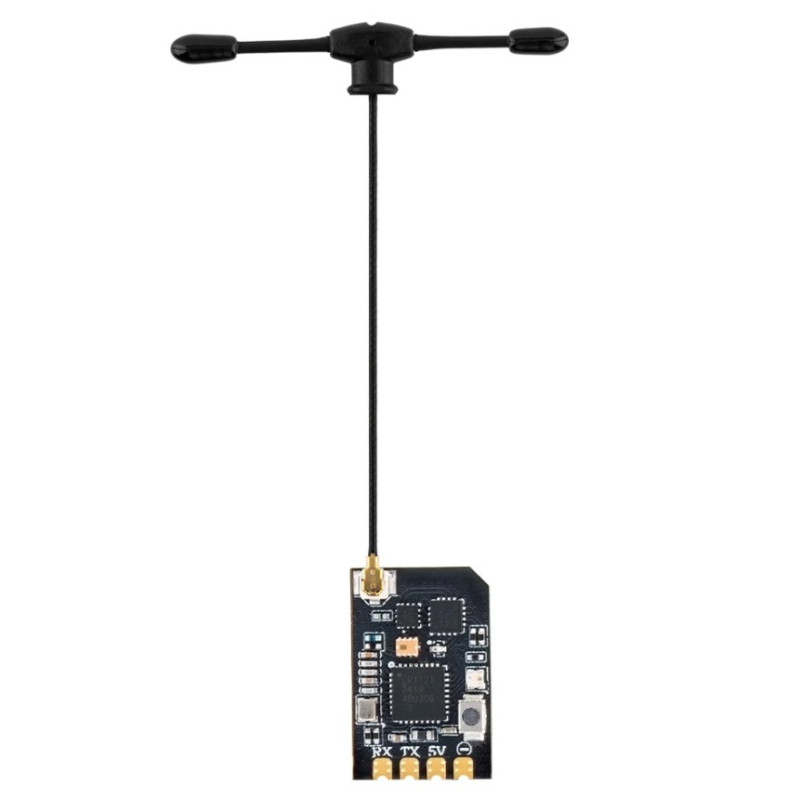

XR1 Nano Multi-Frequency ExpressLRS Receiver By RadioMaster
En stock
€14.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Related products
Technical characteristics
The RadioMaster XR1 receiver is a versatile and compact ExpressLRS receiver.
The XR1 operates seamlessly on the 2.4GHz frequency band and offers exceptional range and sensitivity in a small and lightweight form factor, ideal for any setup.
This nano receiver features built-in Wi-Fi for effortless firmware updates.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
- Type: ISM2.4
- MCU: ESP32C3
- RF chip: Semtech LR1121
- RF connector: IPEX-1
- Antenna: 1x T-Antenna
- Frequency Range: 2.4GHz
- Telemetry Power: 100mW
- Maximum Packet rate: DK500Hz / K1000Hz
- Minimum Packet refresh rate: 50Hz
- Working voltage: 5V
- Weight: 1.0g (without antenna)
- Dimension: 20mm * 13mm * 3mm
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- FW Target: RadioMaster XR1 2.4
- Bus interface 1: CRSF
- Bus interface 2: UART
Bullet points
- Telemetry RF power: 100mW
- ExpressLRS 2.4GHz or Sub-G 900MHz
- ESP32C3 high-performance MCU
- Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver
- Secondary UART port
- Castled pads for easy soldering
Included
- 1x XR1 Nano Multi-Frequency ExpressLRS Receiver
- 1x T Antenna
- 1x CRSF wire
- 3x Heat-Shrinkable Tube
