Detailed Description

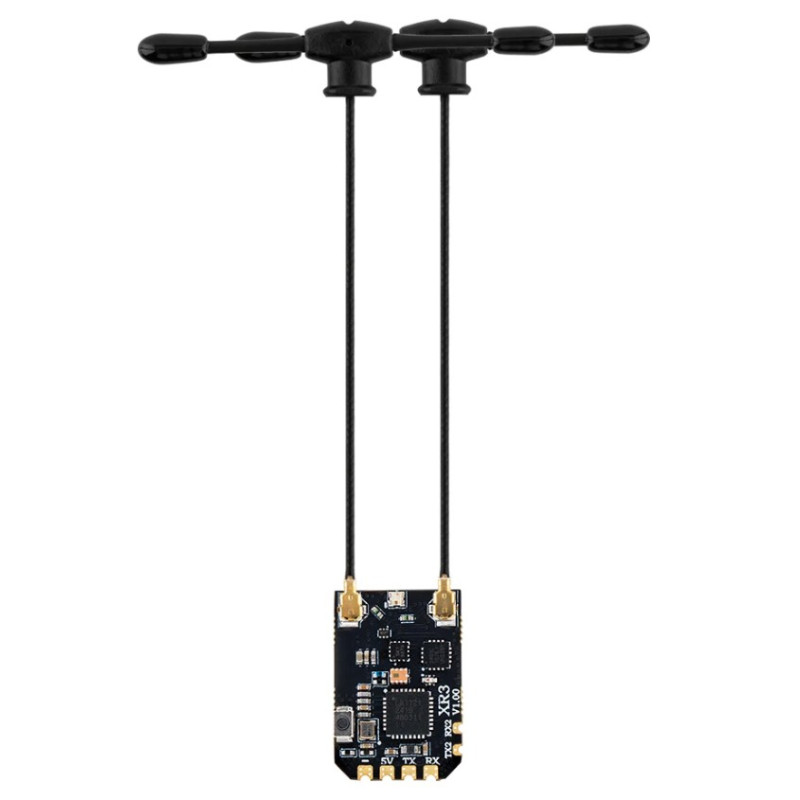

The XR3 receiver is a versatile and ultra-compact ExpressLRS receiver measuring 20x15mm.

It operates seamlessly on the 2.4GHz frequency band and offers exceptional range and sensitivity in a small form factor, perfect for any setup.

The XR3 features built-in Wi-Fi for effortless setup and firmware updates. In addition, the Diversity antenna provides improved signal stability and range.

*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.

Specifications

Size Nano
Protocol ELRS 2.4G

Specifications

  • Type: ISM2.4, FCC915
  • MCU: ESP32C3
  • RF Chip: LR1121
  • RF connector: IPEX-1 X 2
  • Antenna: 2x T-Antenna
  • Frequency Range: 2.4GHz
  • Telemetry Power: 100mw
  • Maximum receive refresh rate: DK500Hz / K1000Hz
  • Minimum receiver refresh rate: 25Hz
  • Working voltage: DC 5.0 - 12.6v
  • Weight: 1.3g (without antenna)
  • Dimension: 22mm * 15mm * 4mm
  • Firmware Version: ExpressLRS v3.5.1 pre-installed
  • FW Target: RadioMaster XR3 2.4 Diversity RX
  • Bus interface 1: CRSF
  • Bus interface 2: UART

Bullet points

  • Antenna Diversity for improved signal stability and range
  • ExpressLRS 2.4GHz or Sub-G 900MHz
  • ESP32C3 high-performance MCU
  • Semtech LR1121 Transceiver
  • Additional UART port
  • Secondary port for advanced functionality
  • Castled pads for easy soldering

Included

  • 1x XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver
  • 2x T Antenna
  • 1x CRSF Wire
  • 3x Heat-Shrinkable Tube
