Manufacturer : BETAFPV / Référence : 01070005_1

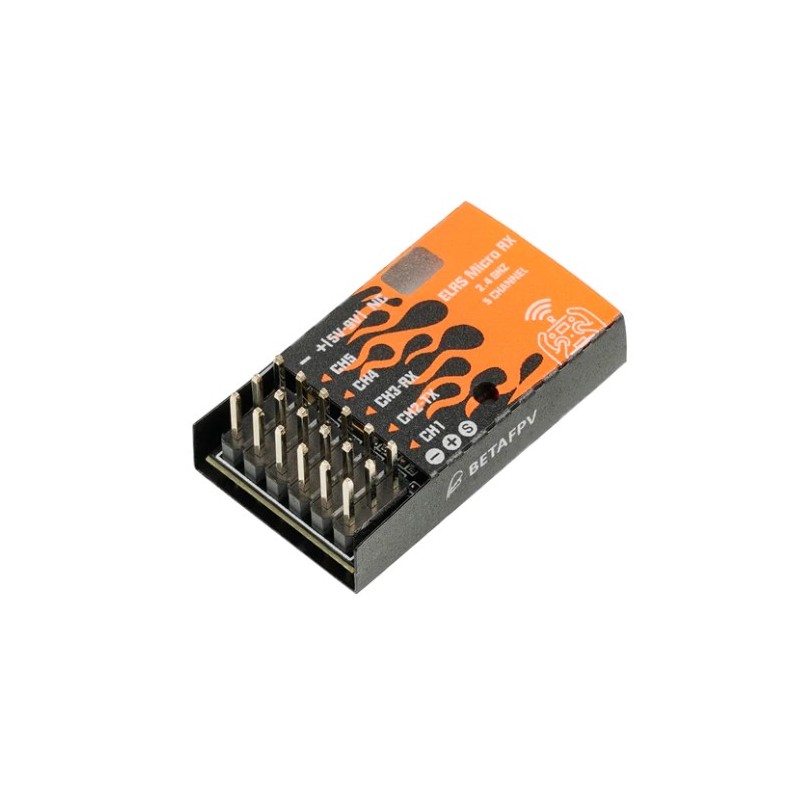

ELRS 2.4G Micro Receiver By BetaFPV

€16.90
2 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

This BetaFPV receiver based on ExpressLRS 2.4G project has PWM output and supports failsafe function. Very easy to use thanks to its plug&play function, the micro receiver does not require soldering.

*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.

Specifications

  • Weight: 4.5g (with antenna)
  • Antenna: IPEX MHF + T antenna (recommend 80mm Dipole T Antenna)
  • PWM channel: 5 channels
  • Serial output protocol: PWM or CRSF
  • Size: 19mm*32mm*9mm (without antenna)
  • MCU: ESP8285/SX1280/SX1281
  • Telemetry power: 12.5dbm/17mW
  • Frequency bands: 2.4GHz ISM
  • Input voltage: 5V~9V DC @ "+" pad
  • Default firmware version: ExpressLRS v2.0
  • Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.

Included

  • 1x ELRS micro receiver
  • 1x 80mm T antenna
Voir plus

Customer reviews

5/5 (4 notifications)
Par le 16/04/2025

Antenne un peu courte, mais tout fonctionne bien. Le bind en lui même n'est pas très intuitif, au risque même de lancer une procédure de bind avant le décollage sans le vouloir (connecter et déconnecter 3 fois l'alimentation sur une voie).

Par le 12/01/2025

Marche très bien

Par le 21/06/2023

Preiswerter und guter Empfänger ,stabiles und schnelles Protokoll ,keine Failsafes bis jetzt.

Par le 05/06/2023

Comme décrit, rien à redire
