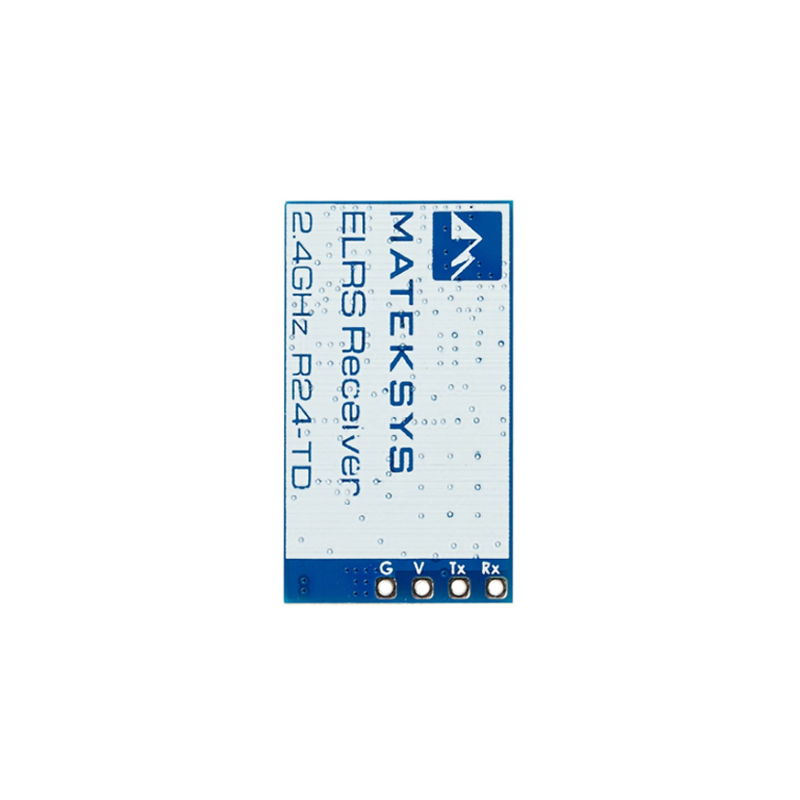

ELRS R24-TD True Diversity Receiver By Matek

In stock
€23.25

View More Info
This product earns you 3 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payment with

Paypal
Paypal 4x 4X PayPal
Alma 2X 3X 4X
Ajouter à la Wishlist
ELRS R24-TD True Diversity Receiver By Matek - Drone-FPV-racer.com

Detailed Description

The Matek ExpressLRS R24-P6V True Diversity receiver has a telemetry power of 20dBm (100mW) and transmits on a 2.4GHz RF frequency.

*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.

Specifications

Protocol ELRS 2.4G

Specifications

  • ESP32-PICO-D4, SX1281, ExpressLRS Firmware
  • PA/LNA: AT2401C
  • RF Frequency: 2.4GHz ISM
  • Telemetry power: 20dbm (100mW)
  • True Diversity
  • Receiver protocol: CRSF
  • Antenna connector: IPEX MHF-1
  • Power supply: 4-13V DC @ “V” Pad
  • Power dissipation: 100mA~170mA@5V IN
  • PCB size: 28mm x 16mm
  • Weight: 4g w/ antenna

Typical Setup

RGB LED Status

  • [Rainbow fade effect], Starting Up
  • [Green heartbeat], Web update mode enabled
  • [Slow blink 500ms on/off ], Waiting for connection from transmitter
  • [Red flashing 100ms on/off], Radio chip not detected
  • [Orange Double blink then pause], Binding mode enabled
  • [Orange Triple blink then pause], Connected to transmitter but mismatched model-match configuration
  • [Solid single color Connected to a transmitter], color indicates packet rate
  • in Boot mode, RGB LED doesn’t light up.

Included

  • 1x ELRS R24-TD receiver
  • 2x IPEX MHF1 15cm antenna

RGB LED Status

  • [Rainbow fade effect], Starting Up
  • [Green heartbeat], Web update mode enabled
  • [Slow blink 500ms on/off ], Waiting for connection from transmitter
  • [Red flashing 100ms on/off], Radio chip not detected
  • [Orange Double blink then pause], Binding mode enabled
  • [Orange Triple blink then pause], Connected to transmitter but mismatched model-match configuration
  • [Solid single color Connected to a transmitter], color indicates packet rate
  • in Boot mode, RGB LED doesn’t light up.

Included

  • 1x ELRS R24-TD receiver
  • 2x IPEX MHF1 15cm antenna
