Freestyle V2 1W Kit By HDZero
Related accessories
Technical characteristics

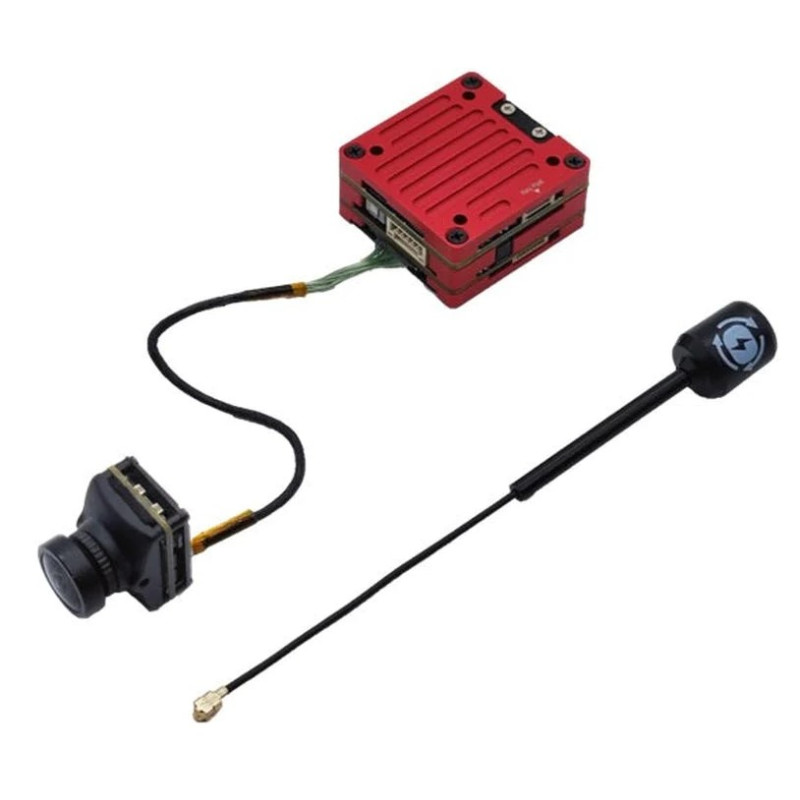

This HDZero Freestyle V2 VTX is a 20x20 HD digital 5.8GHz VTX designed for 3.5" and 5" drones.
Supporting 720p60, 1080p30, 540p60 and 540p90 modes, this second generation of the VTX is capable of achieving a max RF output of 1W.
The sockets are protected with CNC housing for durability, RF shielding and improved signal integrity.
Suitable for most frames that can accommodate the Caddx Vista and Runcam Link.
* Important note: French regulations impose a maximum power of 25mW in the 5.8 Ghz frequency, as well as dual control piloting to practice immersion flight (FPV). The responsibility of Drone-FPV-Racer cannot be engaged for any use of this material without an adequate license.
Note: *All HDZero products remain under warranty until out of the box.*
Specifications
- Manufacturer: Divimath, Inc
- Model: HDZero Freestyle V2 VTX
- Weight: 22.3g
- Dimensions: 29x30x14mm
- Mounting Pattern: 20x20mm M2 holes
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power: 25mW, 200mW, max 1W
- Antenna Interface: Secured U.FL
- Video In Secured: MIPI
- SmartAudio: Yes
- MSP Canvas Mode: Yes
- Input Power: 7-25V
- Operating Temperature: 32˚F-104 ˚F (0˚-40˚C)
- Power Consumption: 6-15W
Included
- 1x HDZero Freestyle V2 VTX
- 1x Nano 90 Camera (with 19x19 Mount)
- 1x HDZero RHCP Antenna
- 1x 120mm MIPI Cable
- 1x Power Cable
- 1x SA Cable
- 1x Plastic bar for MIPI Cable with 3x Screws (M1.4 x 2mm)
- 1x Plastic bar for u.FL with 3x Screws (M1.4 x 8mm)
- 1x Double Sided Tape (29 x 30 x 1mm)
