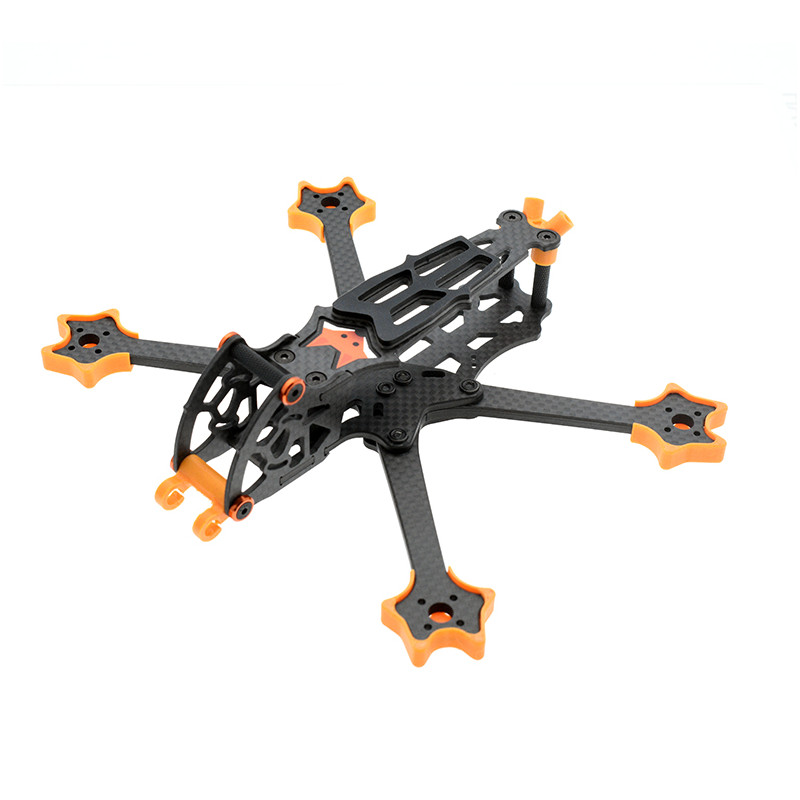

Lethal Conception - Bando Killer 3.5"
Related accessories
Technical characteristics
Where the BK 5" can't go, the Bando Killer 3.5" will sneak in like a little fox!🦊
This 3.5 inch frame signed Lethal Conception is dedicated to freestyle in abandoned places: the Bandos! (but not only)
Adapted to the DJI O3 system, it can also be suitable for all other VTX (analog or HD) due to its numerous options and mounting holes.
More compact and lighter, this frame will allow you to create your HD DVRs without necessarily carrying an action camera while having a frame with a unique look made in Lethal!
Same philosophy but adapted for 3.5 / 3.6" propellers:
- Compatible with DJI O3 / DJI FPV / HDZero / Walksnail / Analog
- Optimized for all types of 20x20mm and AIO 25.5x25.5mm stacks
- Simplified mounting of VTX at the rear with 20x20 / 25.5x25.5mm holes
- Accessible electronics
- Complete set of 3D parts provided
Note : Only the frame is included, the DJI O3 air unit is not included.
The Bando Killer 3.5" from Lethal Conception has been developed to offer the best performance in hostile and restricted environments.
This agile, precise and strong frame is perfect to face the hardest freestyle spots !
Find Lethal Conception on Facebook :
Specifications
- Size : 180mm Squished X
- Carbon : T300 Full layer Plain Mat
- Internal height (stack): 19mm
- Internal height (rear): 25mm
- Motor mounting: 12x12mm M2
- Mounting stack (center): 20x20, 25.5x25.5mm
- Rear mount: 20x20, 25.5x25.5mm
- Weight (with TPU): ~79g
- Compatibility: DJI O3 and other 20mm cameras (or less via adapter)
Example 4S configuration (not included)
- Motors: 1408/1507/1804 - 3500/4000kv
- FC/ESC: Combo Xrotor Micro 45A G2 4in1
- VTX: DJI O3
- Camera: DJI O3
- RX: TBS Crossfire Nano RX + Immortal T
- Battery: Tattu R-Line 4S 850mAh Lipo Battery
- Propellers: Gemfan 3630-3 / HQProp 3.5x2.8x3
Example 6S configuration (not included)
- Motors: 1507/1804/2203.5 - 2500/3000kv
- FC/ESC: Combo Xrotor Micro 45A G2 4in1
- VTX: DJI O3
- Camera: DJI O3
- RX: TBS Crossfire Nano RX + Immortal T
- Battery: Tattu R-Line 6S 650mAh 95C
- Propellers: Gemfan 3630-3 / HQProp 3.5x2.8x3
Included
- 1x Top Plate 2mm
- 2x Cam Plate 2mm
- 1x Bottom Plate 2.5mm
- 1x Middle plate 2.5mm
- 4x Arm 4mm
- 4x TPU arm protection
- 1x Immortal T TPU Front mount
- 1x VTX O3 TPU mount
- 1x SMA TPU Pigtail mount
- 1x DJI O3 TPU antenna pigtail mount
- 1x Lipo pad
- 1x Strap
- 1x Set of screws
Note : DJI O3 Air Unit not included
Customer reviews
Tout a l’air de bonne qualité, il reste plus qu’à le configurer et le tester.
Rápido y bien
Très bien et compact
Ça se sent que c'est du bon matos, solide, bien conçu. Le design est plutôt cool et c'est très pratique d'avoir les TPU intégrés pour les antennes. J'ai élargi les trou d'un des TPU pour antenne pour qu'il passe àtravers les stand off et ainsi mettre les deux TPU. Quelques visses en rabe au cas où elles se perdent aurait été apprécié. Avec des moteur 1507, un stack de diatone, VTX de TBS, receveur elrs nano de betafpv, caméra foxeer nano 1200, et une petit le lipo 3s 550mha ça passe tout juste en dessous des 250 grammes pour ceux que ça intéresse. Ça vole bien en 3s d'ailleurs, même si c'est nettement mieux en 4s. J'ai 5 minutes de vole en gros avec la 550mha 3S.
