HDZero - MIPI Cable
€9.92
Price
Manufacturer : TrueRC / Référence : TRUERC-X-AIR--COMBO-HDZ-GOGGLES-MKII-RHCP
Combo X-Air 5.8 MK.II + Stubby For HDZero Goggles - RHCP (4pcs) By TrueRC
Hors stock
€83.25
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Technical characteristics
Even more gain and comfort thanks to this novelty from TrueRC which combines two X-Air MK II replacement patch antennas for HDZero goggles as well as two Stubby antennas.
Simply screw the patches onto the front of the goggles and the Stubby Antennas onto the remaining ports for a complete antennas combo.
Bullet Points
- Circularly Polarized
- Mount direct on HDzero goggles with included slide-on mounts.
- Compact low-profile design, easy to store and transport
- High 10 dBic for long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 120 degree beam for each antenna combining to 135deg beam width
- Custom knurled SMA connectors
Specifications
- Bandwidth: 5.1GHz-6.7GHz
- Gain: 9.5-10.5 dBic
- Polarization: RHCP
- Beam-width*: 120deg
- Beam-width @-3dB**: 68deg.
- Connector: SMA male
- Dimension: 32 x 32 x 15mm
- Include mounts for installation onto HDzero goggles.
*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.

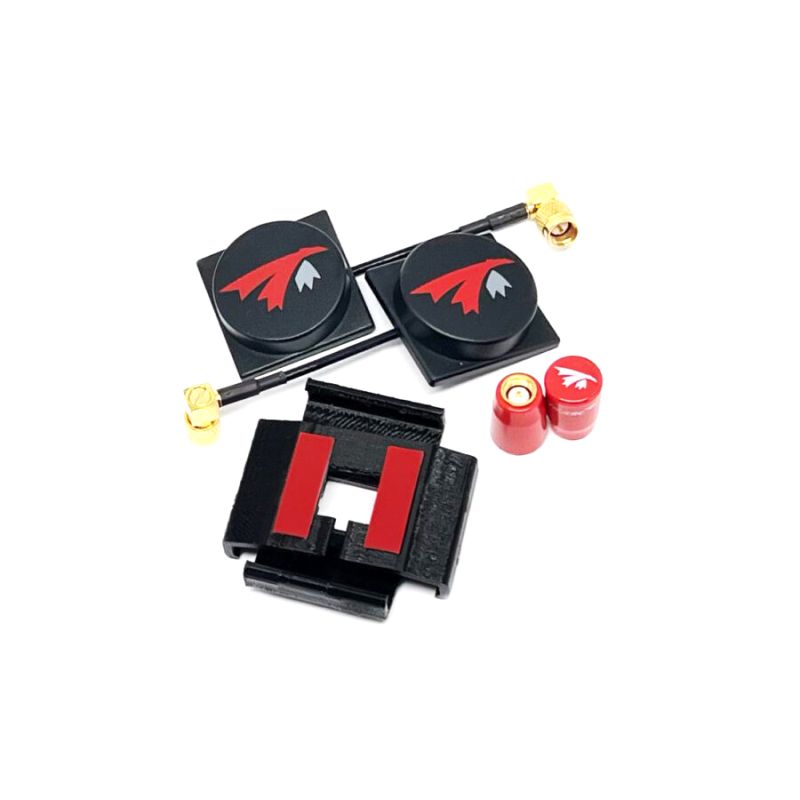

Included
- 2x X-Air antenna (one for each side)
- 2x Stubby antenna
- 2x Slide-on mount
