Manufacturer : TrueRC / Référence : XAIR-GOGGLESX-LHCP

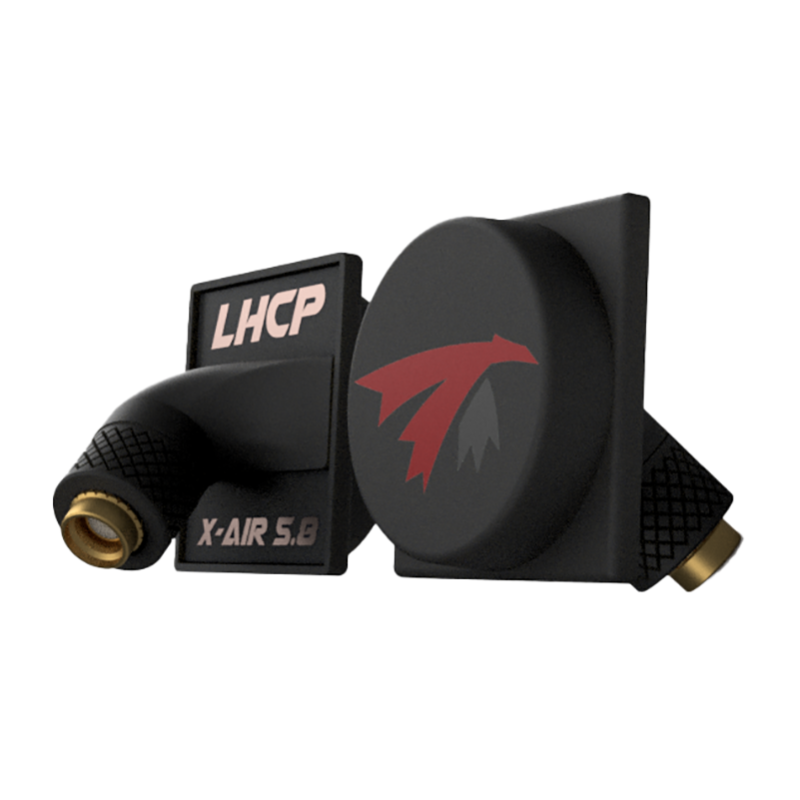

X-Air 5.8 MK.II Antenna For Goggles X - LHCP (2pcs) By TrueRC

4.5/5 (2 notifications)
Hors stock
€62.90
€56.61
-10%
Out-of-Stock Notify me when the product is available again

6 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

This X-Air 5.8GHz MKII antenna is designed for Walksnail Goggles X.

Equipped with angled RP-SMA connectors, you simply screw it onto the upper ports of the goggles.

You can then enjoy an excellent gain of 10 dBic with a flight beam width of 120° and therefore amazing Long range performance.

Get ultimate performance by combining this antenna with Singularity Stubby (not included).

Bullet Points

  • Circularly Polarized
  • Mount direct on Walksnail avatar HD goggles X
  • Compact low-profile design, easy to store and transport
  • High 10 dBic for long range and signal penetration
  • Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
  • Super wide 120 degree beam
  • Custom RP-SMA connectors with compound angle to have the X-air antenna face forward

Specifications

  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 10 dBic
  • Polarization: LHCP
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg
  • Connector: RP-SMA male
  • Dimension: 34*34*34mm

*Coverage of individual antenna where reception is at least equivalent to an omni.

**Coverage of individual antenna where at least 70% of the max range is obtained.

Included

  • 2x TrueRC 2-AIR 5.8 MK.II antenna for Goggles X - LHCP

Note : Goggles not included

Voir plus

Customer reviews

4.5/5 (2 notifications)
Par le 24/01/2025

Todo correcto

Par le 17/12/2024

Semble améliorer sensiblement la portée, pas fait de test précis. Quand même très cher…
