Borg Mini F7 8S 60A Stack By Iflight
Related accessories
Technical characteristics

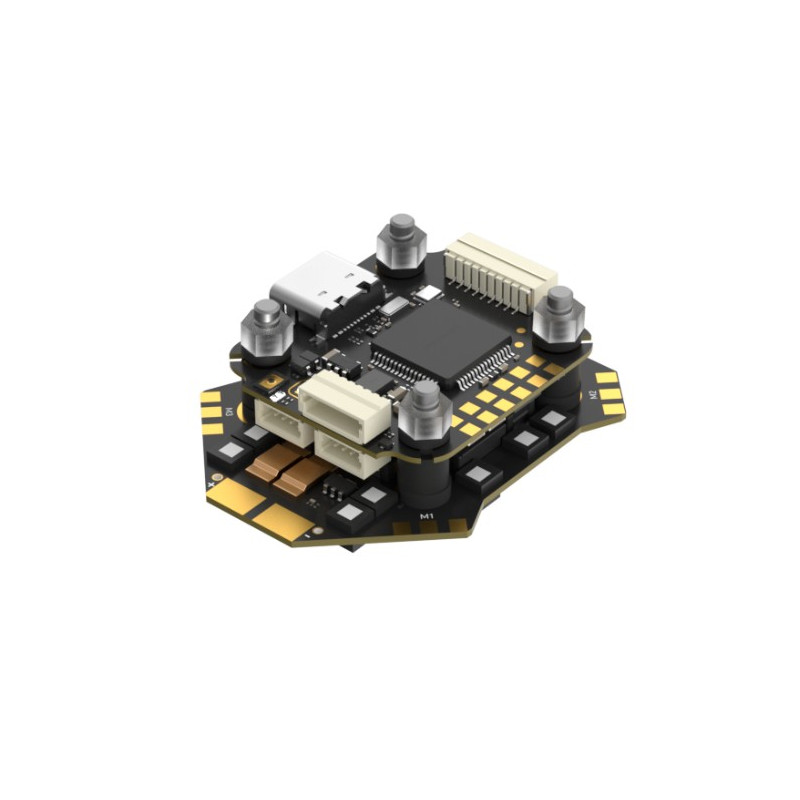

The Borg Mini F7 stack combines power and precision, featuring an F722 flight controller and a 60A 4-in-1 ESC in an ultra-compact form factor.
Compatible with 4–8S LIHV batteries, the board offers a wide voltage range while maintaining stable power consumption.
The flight controller includes an STM32F722RET6 MCU, an ICM42688 gyro, and an AT7456E OSD chip, along with 32MB of flash memory for Blackbox flight data recording. A built-in 12V BEC powers the VTX directly, with remote on/off capability, eliminating the need for extra electronics.
The ESC supports 2–6S batteries, delivers up to 60A continuous current, runs on the FD6288 driver with BL32 firmware, and includes all modern features such as telemetry, support for various protocols like DSHOT and MultiShot, and an integrated current sensor.
Designed for a 20×20 mm mounting pattern, the stack weighs only 17.1g, making it a perfect fit for high-performance builds without adding unnecessary weight.
Flight Controller
- Input voltage: 4-8S; Support LIHV battery
- MCU: STM32F722RET6
- Gyro: ICM42688
- Barometer: SPA06-003
- OSD Chip: AT7456E（LGA）
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4
- I2C serial: Not supported
- VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
- LED controller: Yes
- Beeper pad: Yes
- Betaflight Firmware target: IFLIGHT_BLITZ_F722
- INAV Firmware target: IFLIGHT_BLITZ_F722
- Mount pattern: 20*20φ4
- Dimensions: 27*30.6mm±1
- Total Weight: 17.1g±1(FC+ESC)
- BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
ESC
- Input Voltage: 2-6S; Support LIHV battery
- Max. Continuous Current: 60A
- Max. Burst Current: 65A (10s)
- MCU: STM32G071N
- Driver: FD6288
- Firmware: BL32 (32bit ESC)
- Target: IFLIGHT_BLITZ_G3 32.9
- Current Sensor: Yes
- BEC: N/A
- Telemetry: Supported
- Bidirectional DSHOT: Supported
- Dimensions: 42*35mm±1
- Mounting Holes: 20 x20 mm/Φ4mm
- Protocol: Supports DShot150/300/600, MultiShot, OneShot etc.
Included
- 1x Mini F7 Flight Controller
- 1x Mini 60A ESC
- 1x Cable Set
- 5x Silicone Grommets
