Manufacturer : GEPRC / Référence : GP107550

Taker F722 BT 8Bit 65A Stack By GEPRC

En stock
€88.90
Same day shipping

9 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

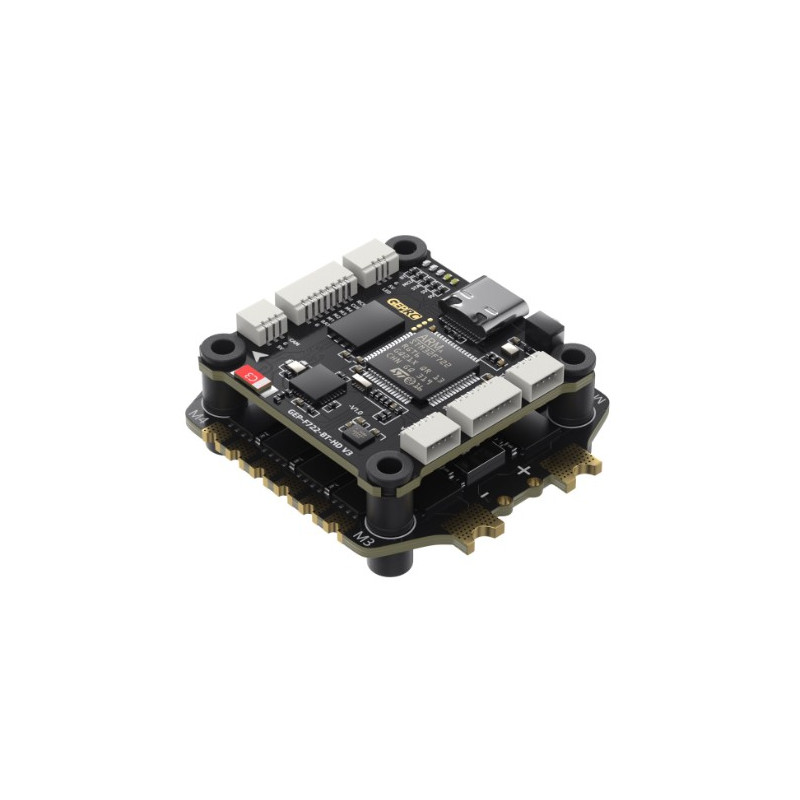

This GEPRC stack consists of the TAKER F722 BT flight controller and the TAKER BLS 65A 4in1 ESC and is mounted in 30.5*30.5mm.

The FC has ICM42688-P gyro, which ensures more precise control. 512MB of integrated blackbox, a DJI plug&play connector, a barometer and integrated Bluetooth add to the many features of the F722.

For its part, the ESC supports BLHeli_S and Dshot 150/300/600.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

F722 BT FC

  • MCU: STM32F722
  • IMU：ICM42688-P(SPI)
  • Air Unit Connection: Directly plugs into the DJI Air Unit
  • Black Box: 512M onboard
  • Bluetooth: Supported
  • Barometer: Supported
  • USB Interface: Type-C
  • OSD: BetaFlight OSD w/ AT7456E chip
  • BEC: 5V@3A, [email protected] dual BEC
  • Firmware Target: GEPRCF722_BT_HD_V3
  • Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
  • Input Voltage: 3-6S LiPo
  • UART: 5 groups (UART4 fixed for Bluetooth)
  • Power Filter: Integrated LC filter
  • Weight: 8.2g

TAKER H65 65A 4in1 ESC

  • Input Voltage: 3-6S Lipo
  • Continue Current：65A
  • Burst Current: 70A (5 second)
  • Support Protocol: Dshot 150/300/600
  • Size：42×45.7mm，hole30.5×30.5mm
  • Weight：14.9g
  • Target: B_X_30

Bullet points

  • Use mainstream STM32F722 chip
  • Equipped with the latest 42688-P gyroscope
  • 512M black box storage
  • Support Bluetooth parameter tuning
  • Integrated LC filter
  • Upgrade type-C USB interface
  • With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight
  • Directly plugs into the DJI Air Unit
  • Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
  • Integrated Barometer
  • [email protected] + 5V@3A dual independent BEC

Included

  • 1x FC board
  • 1x ESC board
  • 1x Capacitor
  • 1x O3 3in1 connection cable
  • 1x FC adapter cable
  • 1x SH1.0 4pin silicone cable
  • 1x Camera connection cable
  • 1x VTX connection cable
  • 1x XT60 power cable
  • 4x M3*30 screw
  • 4x M3*25 screw
  • 8x Nylon nut
  • 12x Silicone anti-shake pad
