Detailed Description

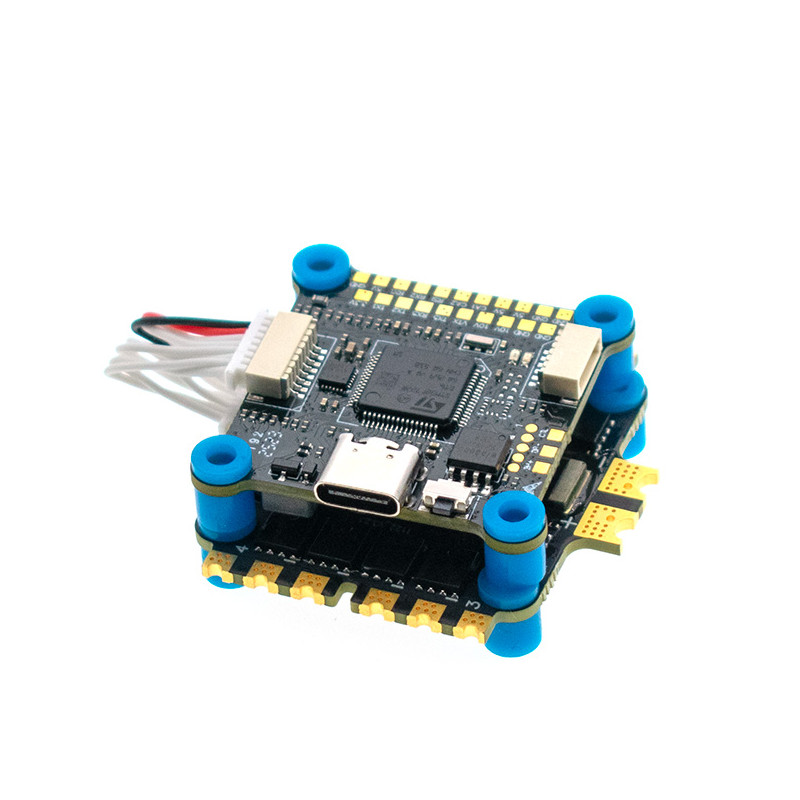

Here is Hobbywing’s entry-level stack: the XRotor Lite. It includes an F722 flight controller equipped with an MPU6500 gyro, a DPS310 barometer, 6 UART ports, and a 5V 1.5A BEC.

The 4-in-1 ESC runs on BLHeli_S firmware and supports a continuous current of 65A.

This stack uses a 30.5×30.5 mm mounting pattern and weighs less than 25 g.

To remain as cost-effective as possible, the stack does not include an XT60 connector or any mounting hardware.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Specifications

Video DJI FPV
Video HDZero
Video Analog
Video Walksnail
Video DJI O3
Video DJI O4
Processor F7
Amp 65A
Voltage 6S
Gyro MPU6500
Barometer With Baro
Mount Size 30.5x30.5mm
ESC Firmware BLHeli_S

Specifications

  • Main chip: F722
  • Original target: HOBBYWING_XROTORF7CON(STM32F7X2)4.3.2
  • Gyro: MPU6500
  • Barometer: DPS310
  • UARTs: 6 sets
  • Analog OSD chip: Yes
  • BEC: 5V @ 1.5A
  • HD VTX port: Yes with 10V power supply
  • UART 1: HD port RX radio
  • FC voltage: 8S
  • ESC voltage: 3-6S
  • Current: 65A X4
  • ESC Firmware: BLHeli_S
  • Mounting holes : 30.5*30.5mm
  • FC Dimensions: 49*49*8mm
  • ESC dimensions: 52*42*6.6mm
  • FC weight: 9.1g
  • ESC weight: 15.5g

Included

  • 1x F722 Flight Controller
  • 1x 4-in-1 65A ESC
  • 2x 12 AWG Cable
  • 1x 35V 680uF Capacitor
  • 2x 8-pin Cable

Note: XT60 connector and hardware not included
