Taker F722 BT 32Bit 50A Stack By GEPRC - Drone-FPV-Racer.com

Detailed Description

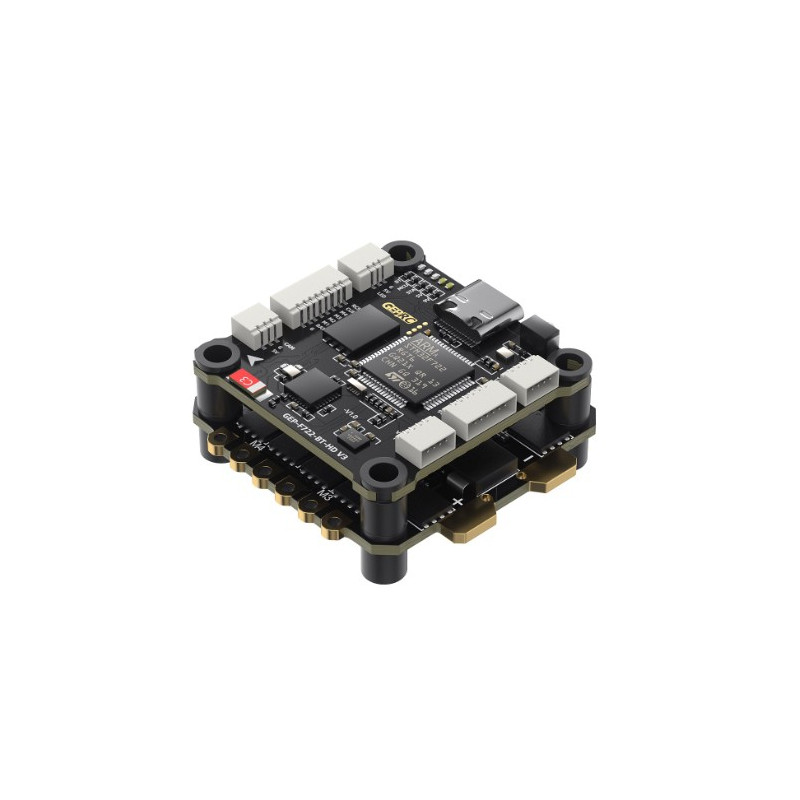

This GEPRC stack consists of the TAKER F722 BT flight controller and the TAKER BL32 50A 4in1 ESC and is mounted in 30.5*30.5mm.

The FC has ICM42688-P gyro, which ensures more precise control. 512MB of integrated blackbox, a DJI plug&play connector, a barometer and integrated Bluetooth add to the many features of the F722.

For its part, the ESC supports BLHeli_32 and Dshot 150/300/600.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Specifications

Processor F7
Amp 50A
Voltage 6S
Gyro ICM42688-P
Barometer With Baro
Mount Size 30.5x30.5mm
ESC Firmware BLHeli_32

Bullet points

  • Use mainstream STM32F722 chip
  • Equipped with the latest 42688-P gyroscope
  • 512M black box storage
  • Support Bluetooth parameter tuning
  • Integrated LC filter
  • Upgrade type-C USB interface
  • With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
  • Directly plugs into the DJI Air Unit
  • Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
  • Integrated Barometer
  • 9V@2.5A + 5V@3A dual independent BEC

Included

  • 1x FC board
  • 1x ESC board
  • 1x Capacitor
  • 1x O3 3in1 connection cable
  • 1x FC adapter cable
  • 1x SH1.0 4pin silicone cable
  • 1x Camera connection cable
  • 1x VTX connection cable
  • 1x XT60 power cable
  • 4x M3*30 screw
  • 4x M3*25 screw
  • 8x Nylon nut
  • 12x Silicone anti-shake pad

Bullet points

  • Use mainstream STM32F722 chip
  • Equipped with the latest 42688-P gyroscope
  • 512M black box storage
  • Support Bluetooth parameter tuning
  • Integrated LC filter
  • Upgrade type-C USB interface
  • With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
  • Directly plugs into the DJI Air Unit
  • Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
  • Integrated Barometer
  • 9V@2.5A + 5V@3A dual independent BEC

Included

  • 1x FC board
  • 1x ESC board
  • 1x Capacitor
  • 1x O3 3in1 connection cable
  • 1x FC adapter cable
  • 1x SH1.0 4pin silicone cable
  • 1x Camera connection cable
  • 1x VTX connection cable
  • 1x XT60 power cable
  • 4x M3*30 screw
  • 4x M3*25 screw
  • 8x Nylon nut
  • 12x Silicone anti-shake pad
