Detailed Description

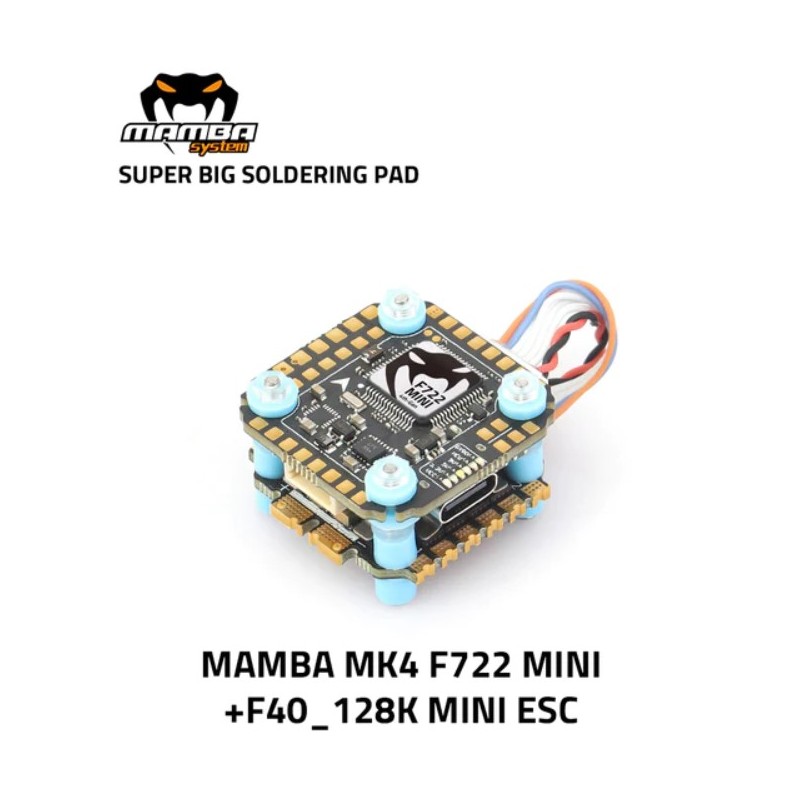

Here is Diatone's Stack Mamba F722 Mini MK4 40A, equipped with a ICM42688 gyro. This fourth generation of FC brings in particular more space thanks to the new style of pads which will reduce welding errors.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

MK4F722MINI-01_406eab1f-b764-4dd7-8a5c-a938ee722d43_700x.jpg?v=1655347204

Specifications

Video Walksnail
Video DJI O3
Video DJI FPV
Video HDZero
Video Analog
Processor F7
Amp 40A
Gyro ICM42688-P
Mount Size 20x20mm
ESC Firmware BLHeli_32

FC Specifications

  • MCU: 216MHz STM32F722
  • GYRO: MPU6000
  • OSD: AT 7456E
  • Blackbox: 16M Flash Memory
  • Uarts: 6Set
  • Receiver : TBS/SBUS/IBUS/DSM
  • I2C : Yes
  • F.Port : Yes
  • Buzzer Pad : Yes
  • Baro : Yes
  • CURR Pad : Yes
  • ESC Signal : 8 set
  • BEC 3.3V : 0.5V
  • BEC 5V : 2.5A
  • BEC 9V : 2A
  • MB LED : Yes
  • BF LED : Yes
  • Air unit port : Yes
  • VTX Switch : Yes
  • BEC Protection : Yes
  • Receiver protection : Yes
  • TVS Protection : Yes
  • Input : 6S Lipo
  • Soft ware : Betaflight
  • Mounting : 20x20mm/M2
  • Size : 29x29.5x6.5mm
  • Weight : 6.0g

Included

  • 1x MK4 F722 MINI FC
  • 1x F40_128k MINI ESC
  • 5x Silicone damper M3
  • 5x Silicone damper M2
  • 5x M3 ESC insulation column
  • 5x M2 ESC insulation column
  • 1x 8pin single-ended cable for FC
  • 2x 8pin cable
  • 1x 6pin cable for air unit
