Manufacturer : DYS / Référence : FC722-AM32-65A

F722 65A 8S AM32 Stack By DYS

Hors stock
€89.00
Out-of-Stock Notify me when the product is available again

9 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

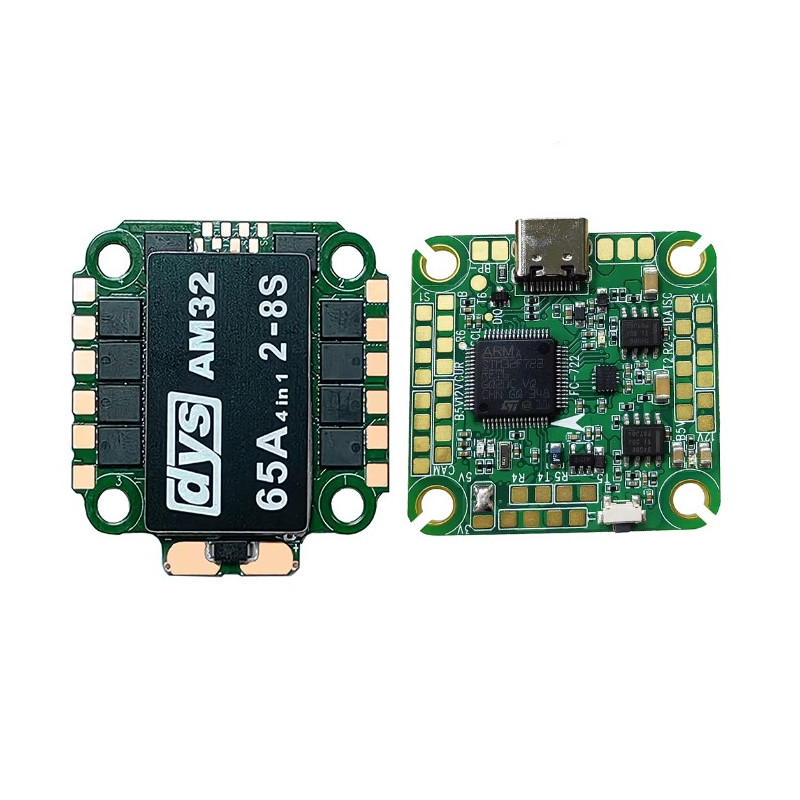

This 30.5*30.5mm DYS stack includes a F722 flight controller with an ICM42688P gyroscope, a BMP280 barometer, a 16MB blackbox and an OSD. In terms of input and output, there are 4 motors, SDA/SLA for GPS, a LED port, a buzzer port and 6 UARTs. Finally, this F722 is powered by 8S.

The 65A ESC complements the FC with its 65A continuous and up to 80A peak! Equipped with a BB21 MCU, it is compatible with Dshot, PWM, OneShot, MultiShot and supports AM32 firmware.

F722 FC

  • MCU: STM32 FC722
  • Gyro: ICM42688P
  • Barometer: BMP280
  • OSD Chip: AT7456E
  • Flash: 16MB (Blackbox flash)
  • UARTS: 6Prot
  • Motor Outputs: 4x (SH1.0 connector)
  • Serial I2C: SDA / SLA pads
  • Smartaudio / IRC Tramp VTX protocol supported
  • LED Controller: Yes
  • Beeper pad: Yes
  • Target Firmware: BETAFLIGHT
  • Mounting Model: 30.5*30.5mm / 4mm PCB Hole Diameter
  • Dimensions: 38*38mm
  • Weight: 10.0g
  • BEC: 3.3V/1A; 5V/3A; 12V/3A

65A ESC

  • Supports: PWM, Oneshot125, Oneshot42,Multishot, Dshot150, Dshot300, Dshot600.
  • Firmware: AM_32
  • Mounting Holes: 30.5*30.5mm/Φ4mm
  • Supports 2-8S lipo input
  • Telemetry Output: NO
  • Current Sensor: Yes
  • Constant: 65Amps
  • Current Rate: 200
  • Burst: 80Amps
  • Weight: 15.3g
  • MCU: BB21
  • BEC: No

Included

  • 1x F722 flight controller
  • 1x AM32 65A ESC
  • 1x Set of dampers
  • 1x Set of cables
  • 1x Capacitor
  • 1x XT60 connector
  • 2x Silicone wire
