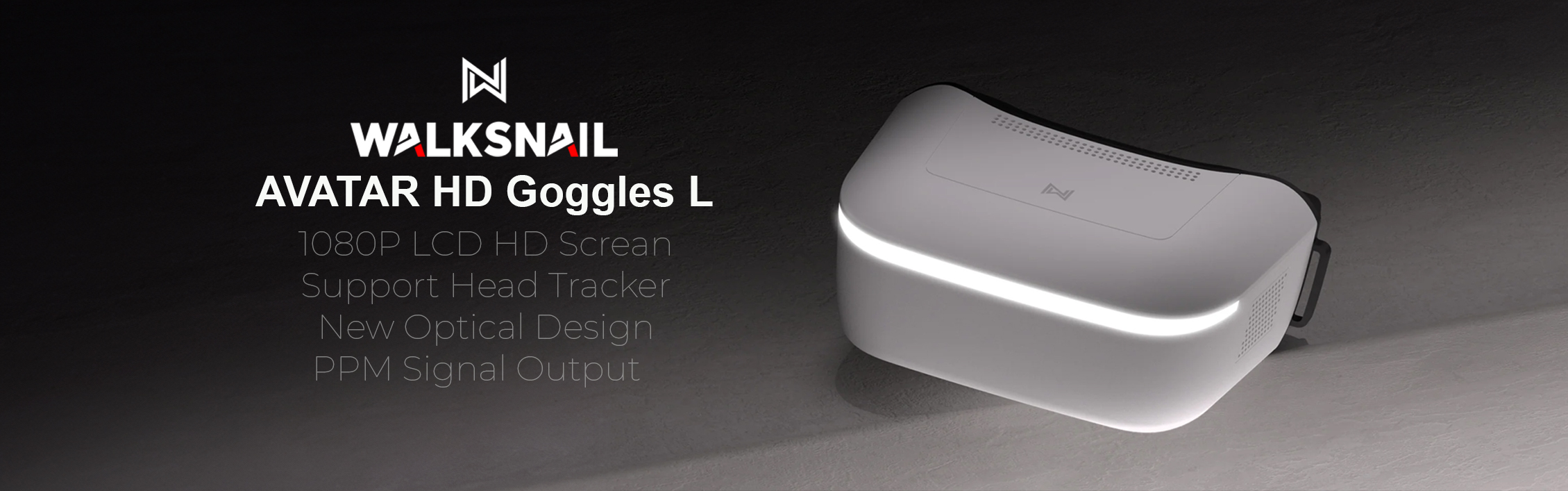

Avatar HD Goggles L By Walksnail
Related accessories
Technical characteristics
To provide users with a cost-effective entry into HD systems while ensuring an excellent experience, Walksnail has developed the first single-screen HD goggles equipped with head tracker functionality.
A sensor using a nine-axis gyroscopic module is integrated into the goggles to capture every movement of your head. Combined with a gimbal, the sensor sends signals via the image transmission system to control the camera and thus give you a cockpit feeling.
These Avatar HD Goggles Lite support PPM signal output to radios via TX connector.
The removable lens design supports various vision needs, allowing the installation of myopia, hyperopia or blue light blocking lenses.
The Avatar HD Goggles L are compatible with all VTX Walksnail models.
In addition to the technological and technical performance of the Goggles L, they feature a futuristic design, particularly through the light bar. The premium foam and face mask will keep you soft and comfortable while reducing light leaks.
Specifications
- Model : Avatar HD Goggles L
- Communication Frequency : 5.725-5.850GHz
- Transmitter Power (EIRP) : FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
- I/O Interface : 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot,
- Gyro : Nine-axis gyroscope
- Transmission Resolution : 1080p60fps, 720p60fps
- Code Rate : Max 50 Mbps
- Min. Latency : Average 32ms
- Average Gain : 4.9dBi
- Polarization : LHCP
- Transmission Distance : ＞4km
- Channel : 8
- Screen Resolution : 1920*1080/60Hz
- Screen Material : LCD
- Screen Size : 4.5 Inch
- Power Input : 6V-25.2V(2-6S)
- SD card : Support 256G
- Weight : 350±10g
- System : Avatar HD System
Bullet points
- Avatar HD System
- Head tracker function
- H.265 encoding technology
- 1080P/60fps video
- PPM signal
- Resolution 1920x1080
- 4.5" HD screen
- micro SD card slot
- Directional antenna 4.9dBi max
- Compatible 2-6S
- Removable lens design
- Compatible with all VTX Walksnail
- Softness and comfort
Included
- 1x Walksnail Avatar HD Goggles L
- 1x Straight DC5.5-XT60 power cord
