Avatar HD Mini 1S Lite Kit By Walksnail
Related accessories
Technical characteristics
Equipped with a new Avatar lite camera, Avatar mini 1S VTX and lite antenna, this kit from Walksnail features a new HD video transmission system providing 1080p resolution with low latency of 22 milliseconds.

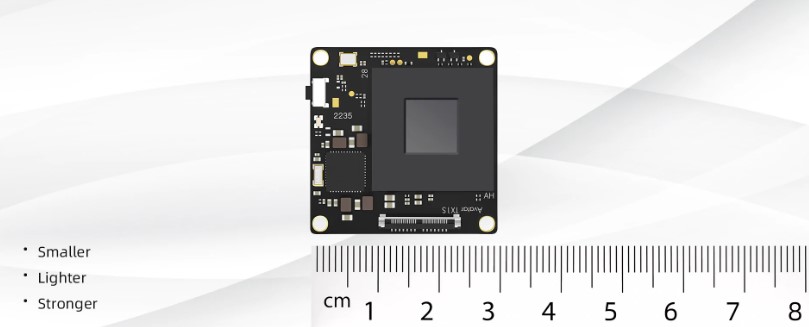

This new VTX appears as the smallest, lightest and stronger of Walksnail.
The lite HD camera has a field of view of 170° and a 2.1mm lens for a weight of 1.8g.
* Important note: French regulations impose a maximum power of 25mW in the 5.8 Ghz frequency, as well as dual control piloting to practice immersion flight (FPV). The responsibility of Drone-FPV-Racer cannot be engaged for any use of this material without an adequate license.
VTX
- Communication frequency : 5.725-5.850GHz
- Transmitter power (EIRP) : FCC: <25.5dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm
- I/O interface : JST1.0*6 (power in) JST1.0*4 (USB)
- Mounting holes : 25.5*25.5mm
- Dimensions : 30*30*6.5mm
- Storage : 8G (V2) / 32G(V3)
- Recording : 1080p/720p
- Weight : 5.1g
- Operating temperature : -20-40°C
- Channels : 8
- Wide power input : 3.1V-5V(V2) / 3.1-13V(V3)
- Supported FC System : Betaflight
- OSD : Canvas mode
- Bitrate : 25mbps / 50mbps
- Latency : Average delay 22ms
- Antenna : IPEX
Camera
- Model : Avatar lite
- Image sensor : 1/2.7"
- Resolution : 1080P/60fps, 720P/120fps, 720P/60fps
- Ratio : 16/9 4/3
- Lens : 2.1mm
- FOV : 170°
- Aperture : F2.0
- Shutter : Rolling shutter
- Min.Illumination : 0.001Lux
- Weight : 1.8g
- Dimensions : 14*14*16mm
Antenna
- Polarization : Linear
- Frequency range : 5600-5900MHz
- Gain : 1.6 dbi
- VSWR : ≤1.5
- Input Impedance : 50Ω
- Interface : IPEX-1
- Size : R 5mm,L 70mm
- Weight : 0.5g
Included
- 1x Avatar mini 1S lite kit
- 1x 4pin USB cable
- 1x 4pin power cable
- 4x 1.4x8mm screw
- 2x 1.4x10mm screw
- 4x M2 anti-vibration rubber damper
