Discover the CaddxFPV GM series, gimbals designed for Walksnail FPV cameras.
Intended to enhance your experience, GM stabilizers create a feeling of total immersion through Head tracker mode. The latter allows the stabilizer to follow the movement of your head and thus provide you with unparalleled realism and control.
You can easily manage the modes and sensitivity of the GM from the goggles menu or via PWM controls.
Compatible with 19mm cameras and Avatar HD goggles, this GM series includes three models: single-axis, double-axis and tri-axis meeting different needs.

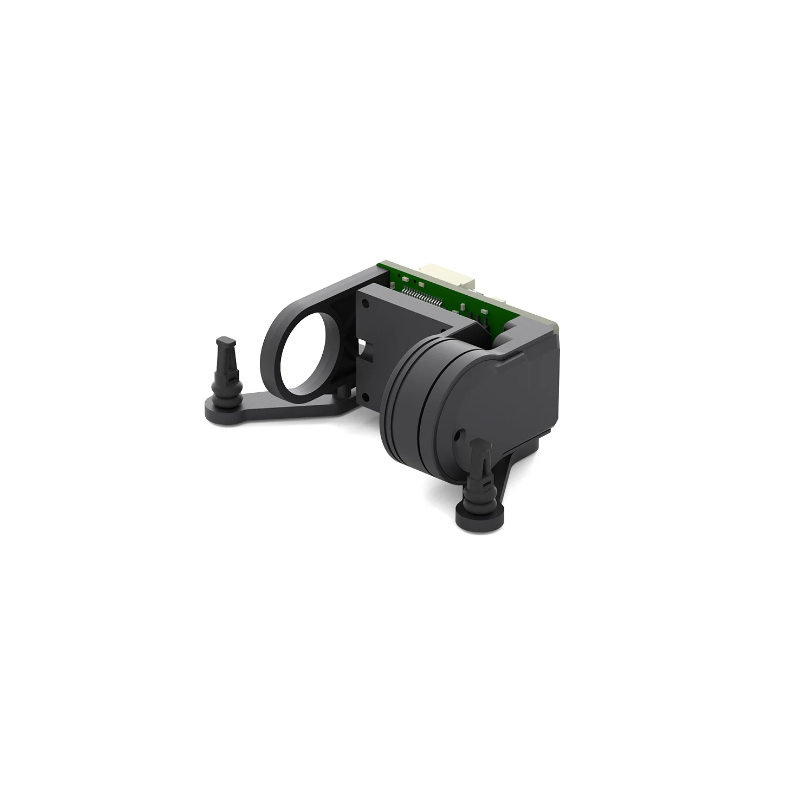

The single-axis GM1 can tilt the pitch by 120°.

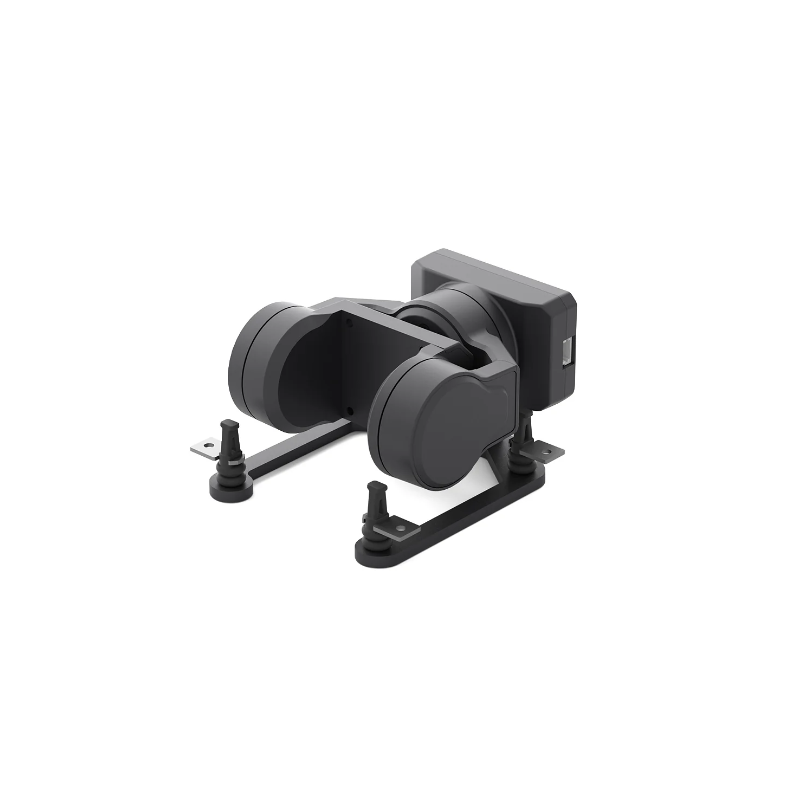

The dual-axis GM2 can tilt the pitch by 120° and roll by 60°.
The tri-axis GM3 can tilt pitch 120° and roll 60° and yaw 160°.
Note: Only the GM stabilizer is included
GM1
- Camera Compatibility : 19mm FPV Camera
- Image Stabilization : ±0.005°
- Max Controllable Speed : ±1500°/s
- Max Controlled Rotational Range : Pitch: ±120°
- Size : 32.2*38.1*20.5mm
- Weight : 16g
- Control Mode : PWM /UART
- Head Tracking Control : Support
- Voltage : 7~26V
- Static Power Dissipation : 1W
GM2
- Camera Compatibility : 19mm FPV Camera
- Image Stabilization : ±0.005°
- Max Controllable Speed : ±1500°/s
- Max Controlled Rotational Range : Pitch: ±120°, Roll: ±60°
- Size : 46.7*46.5*26.2mm
- Weight : 30g
- Control Mode : PWM /UART
- Head Tracking Control : Support
- Voltage : 7~26V
- Static Power Dissipation : 1.2W
GM3
- Camera Compatibility : 19mm FPV Camera
- Image Stabilization : ±0.005°
- Max Controllable Speed : ±1500°/s
- Max Controlled Rotational Range : Pitch: ±120, Roll: ±60, Yaw: ±160°
- Size : 50x46.5x53mm
- Weight : 46g
- Control Mode : PWM /UART
- Head Tracking Control : Support
- Voltage : 7~26V
- Static Power Dissipation : 1.5W
Included
- 1x GM stabilizer
- 1x Power cable
Note : VTX and camera not included
Customer reviews
Manque de schéma de câblage, n' est pas compatible avec ma walksnail 1s trop petite et apparemment il faut 2 UART pour le fonctionnement, 1 pour la cam et l'autre pour le GM2. Je ne peux donc l'utiliser
Super, je ne savais pas que ça existé. Pratique pour concurrencer un drone du commerce mais avec la liberté
Well, a few years ago I dreamed about a three axis gimbal for fixed wing fpv...and here it is now :-) It is important to do the firmware update to get rid of the jitter. After that it works like charm. The adjustable stabilization works decent. From very soft up to quite solid following the movement of the rc plane.
