Manufacturer : Be Great RC / Référence : HP039-0014
Monitor - 5802 7" w/ DVR
Hors stock
€109.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The 5802D Monitor offers a 7" screen as well as an integrated Diversity and DVR.
This screen allows you to display your FPV Analog video stream.
It will be the perfect accessory to bring to your favorite flight spot to share your flights with other people in real time!
With its integrated DVR, you can also record the video on a MicroSD card.

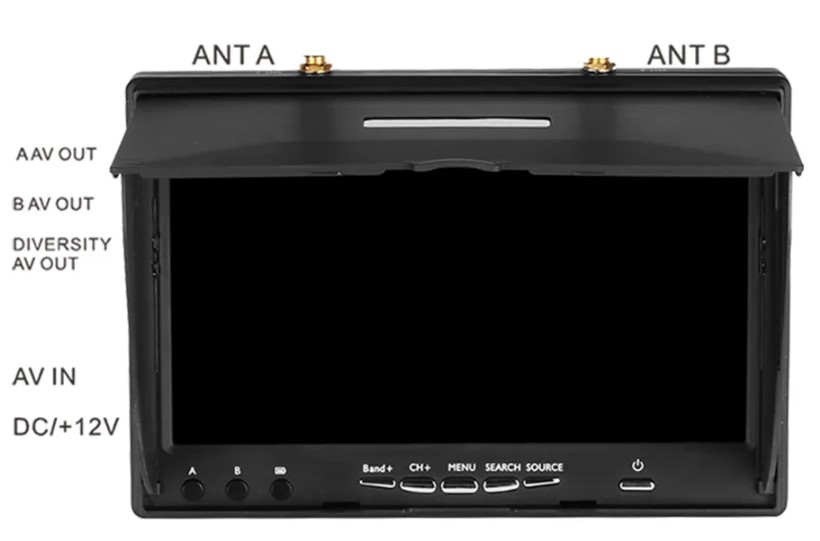

Equipped with AV input and output, it will be convenient to share the video stream on other accessories.
Specifications
- Built-in 5.8Ghz Dual diversity receiver automatically for best reception
- Built-in 2CH 5.8Ghz AV output and 1CH AV input
- Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
- Work status OSD display : RSSI indication ; Battery indicator;Channel indication
- A key to automatic signal search
- Support Chinese and English menu
- Format: JPEG, AVI
- Screen size:7”
- Screen type:TFT LCD Screen/long life, LED backlight
- Resolution: 800*480
- Brightness: 600cd/m2
- View Angle:140/120degree (Horizontal/Vertical)
- Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
- Working Voltage: DC 7~16V
- Power Consumption: max 650 mA @12V
- Battery charging current : 850mA @12V ( max )
- Working temperature: -10℃~+ 65 ℃
- Connectors:RP-SMA female(outer needle)
- Antennas Connectors:RP-SMA male (inner hole)
- Support up to 32G , C10 SD Card.
